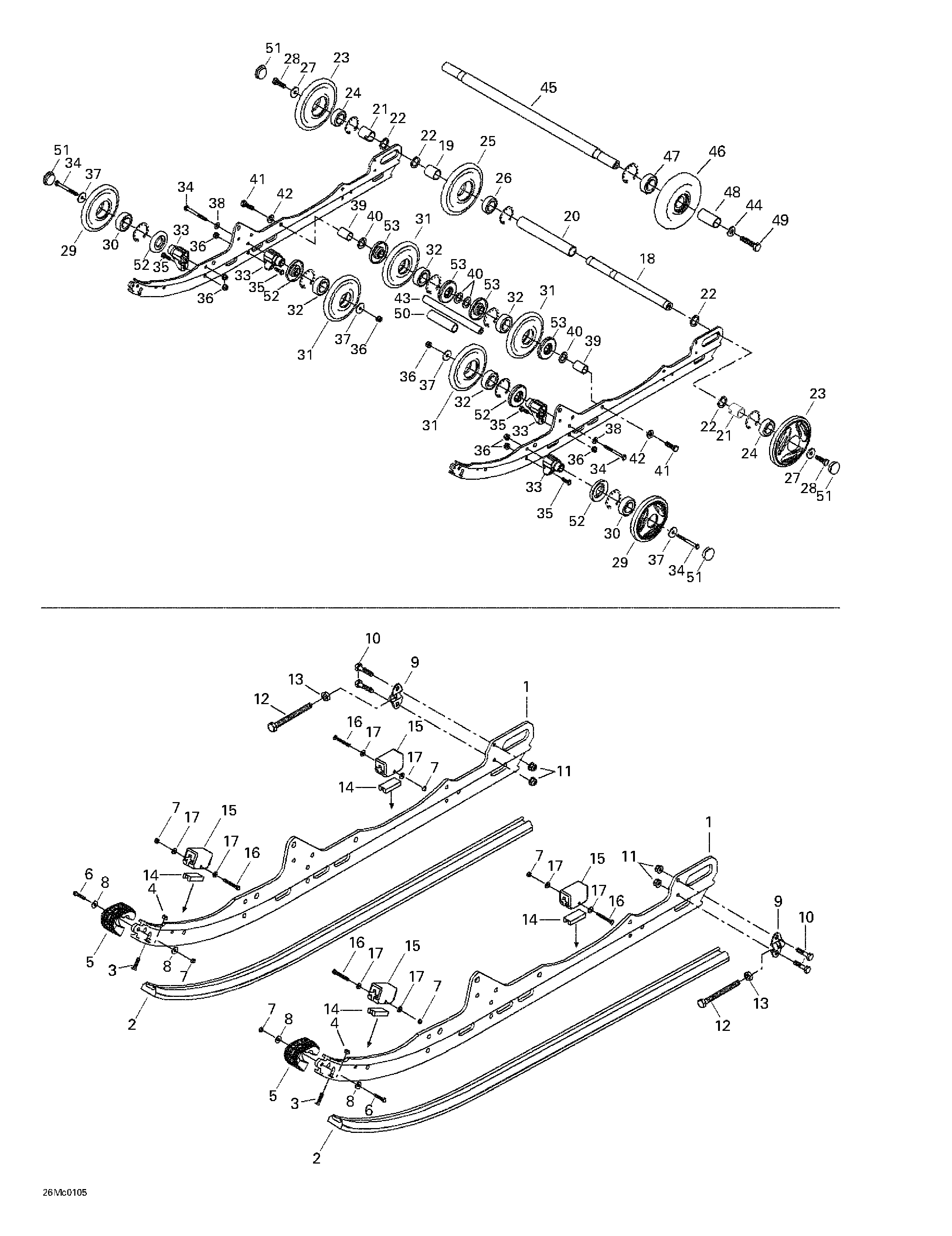

08- Rear Suspension для BRP Ski-Doo MX Z 440 F/500 F - 2001
-
№АртикулНазвание
-
1503188931 RunnerRunner
-
2560103300 Runner-ShoeRunner-Shoe
-
3208562560 Countersunk Head Screw M6 x 25Countersunk Head Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 Flat WasherFlat Washer
-
9503155300 TensionerTensioner
-
10207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
11233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
12230100044 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
13233601416 Elastic Stop Nut M10Elastic Stop Nut M10
-
14572084800 Reinforcement StopperReinforcement Stopper
-
15570063000 Rubber StopperRubber Stopper
-
16207054044 Hex. Screw M5 x 40Hex. Screw M5 x 40
-
17391301700 Flat WasherFlat Washer
-
18503160700 Rear AxleRear Axle
-
19503182900 Short SpacerShort Spacer
-
20503183000 Long SpacerLong Spacer
-
21503189075 Outer SpacerOuter Spacer
-
22503180400 ShimShim
-
23503189566 Wheel 165(Yellow 2000) B-190. Includes 23 - 24. MX Z 440 F. MX Z 500 F.Wheel 165(Yellow 2000) B-190. Includes 23 - 24. MX Z 440 F. MX Z 500 F.
-
503189578 Wheel 165(Full Moon) B-210. Formula DLX 500 F.Wheel 165(Full Moon) B-210. Formula DLX 500 F.
-
24405404500 Ball Bearing 6205Ball Bearing 6205
-
25503189568 Wheel 165. Includes 25 - 26.Wheel 165. Includes 25 - 26.
-
26405404500 Ball Bearing 6205Ball Bearing 6205
-
27503183300 WasherWasher
-
28250000019 Hex. ScrewHex. Screw
-
29572097612 Wheel 135 (Yellow 2000) B-190. Includes 29 - 30. MX Z 440 F. MX Z 500 F.Wheel 135 (Yellow 2000) B-190. Includes 29 - 30. MX Z 440 F. MX Z 500 F.
-
503189411 Wheel 135 (Full Moon) B-210. Formula DLX 500 F.Wheel 135 (Full Moon) B-210. Formula DLX 500 F.
-
30405404500 Ball Bearing >Ball Bearing >
-
31503188997 Bonded Wheel 135. Includes 31 - 32.Bonded Wheel 135. Includes 31 - 32.
-
32405404500 Ball Bearing 6205Ball Bearing 6205
-
33503174600 SupportSupport
-
34207088044 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
35207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
36233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
37503183100 WasherWasher
-
38234081410 Flat Washer 8 mmFlat Washer 8 mm
-
39503188800 SpacerSpacer
-
40503154000 WasherWasher
-
41207303544 Hex. Screw M10 x 35 (Scotch Grip)Hex. Screw M10 x 35 (Scotch Grip)
-
42732900049 Flat Washer 10 mmFlat Washer 10 mm
-
43503188700 Wheel AxleWheel Axle
-
44503189157 WasherWasher
-
45503153600 Wheel Support AxleWheel Support Axle
-
46572043500 Idler Wheel. Includes 46 - 47.Idler Wheel. Includes 46 - 47.
-
47405404600 Ball Bearing 6202Ball Bearing 6202
-
48572048300 SpacerSpacer
-
49207383044 Hex. Screw M8 x 30 (Scotch Grip)Hex. Screw M8 x 30 (Scotch Grip)
-
50503153100 SpacerSpacer
-
51570063600 Wheel CapWheel Cap
-
52572089000 Labyrinth SealLabyrinth Seal
-
53503189314 Labyrinth ShaftLabyrinth Shaft
