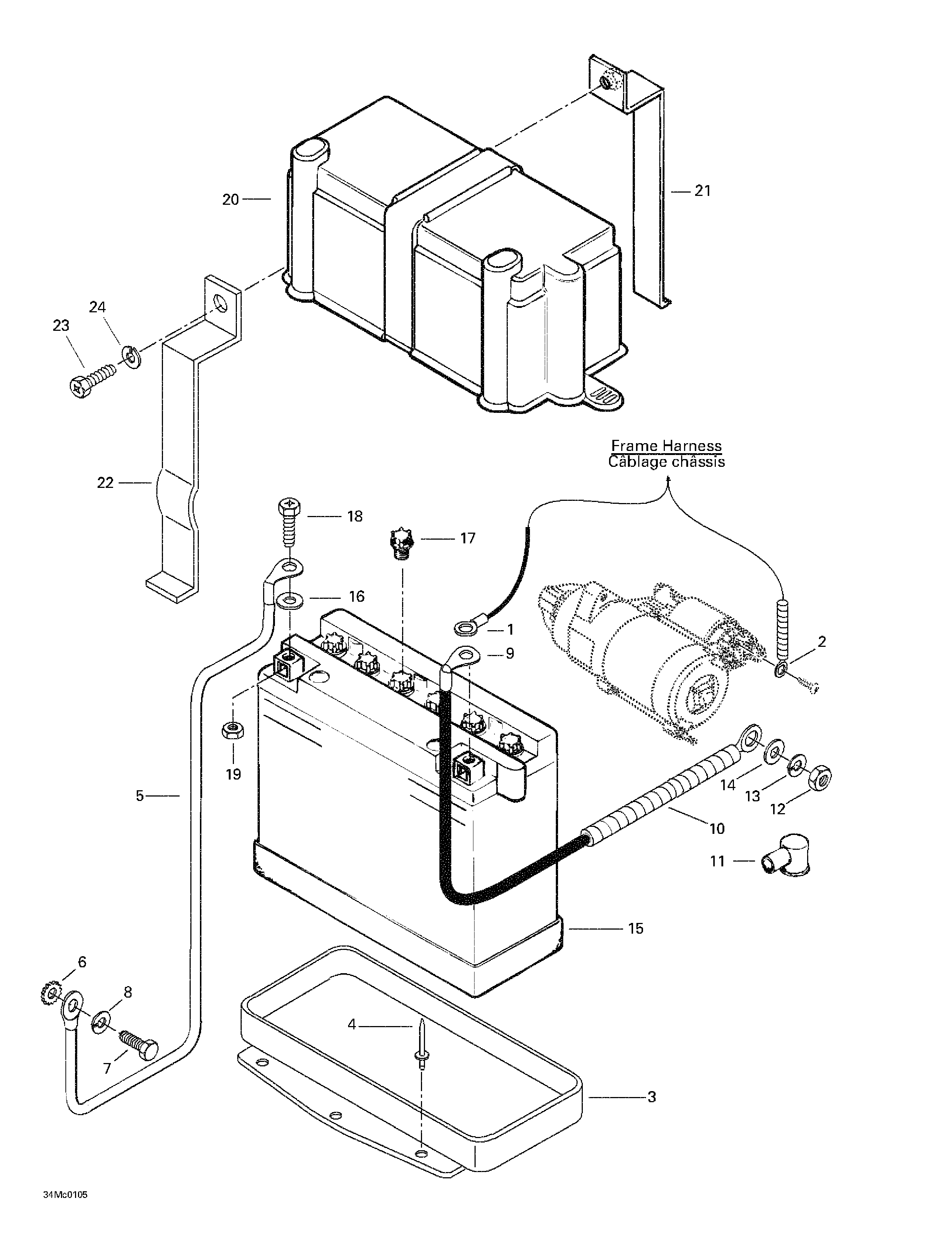

10- Battery для BRP Ski-Doo MX Z 440 F/500 F - 2001
-
№АртикулНазвание
-
1409012600 Open Barrel. Formula DLX 500 F.Open Barrel. Formula DLX 500 F.
-
2409012500 Open Barrel. Formula DLX 500 F.Open Barrel. Formula DLX 500 F.
-
3517286200 Battery Seat. Formula DLX 500 F.Battery Seat. Formula DLX 500 F.
-
4390402200 Rivet. Formula DLX 500 F.Rivet. Formula DLX 500 F.
-
5515175425 Ground Wire. Formula DLX 500 F.Ground Wire. Formula DLX 500 F.
-
6394001900 Lock Washer. Formula DLX 500 F.Lock Washer. Formula DLX 500 F.
-
7207161444 Hex. Screw M6 x 14. Formula DLX 500 F.Hex. Screw M6 x 14. Formula DLX 500 F.
-
8234161471 Lock Washer 6 mm. Formula DLX 500 F.Lock Washer 6 mm. Formula DLX 500 F.
-
9515175488 Current Wire. Formula DLX 500 F.Current Wire. Formula DLX 500 F.
-
10409901700 Tubing. Formula DLX 500 F.Tubing. Formula DLX 500 F.
-
11570151000 Protector Cap. Formula DLX 500 F.Protector Cap. Formula DLX 500 F.
-
12232081414 Nut M8. Formula DLX 500 F.Nut M8. Formula DLX 500 F.
-
13420945752 Lock Washer 8 mm. Formula DLX 500 F.Lock Washer 8 mm. Formula DLX 500 F.
-
14234081410 Flat Washer 8 mm. Formula DLX 500 F.Flat Washer 8 mm. Formula DLX 500 F.
-
15410301100 Battery. Includes 15 - 18. Formula DLX 500 F.Battery. Includes 15 - 18. Formula DLX 500 F.
-
16391302100 Washer. Formula DLX 500 F.Washer. Formula DLX 500 F.
-
17410300800 Battery Cap. Formula DLX 500 F.Battery Cap. Formula DLX 500 F.
-
18207161644 Hex Screw M6 x 16. Formula DLX 500 F.Hex Screw M6 x 16. Formula DLX 500 F.
-
19232061414 Nut M6. Formula DLX 500 F.Nut M6. Formula DLX 500 F.
-
20570022000 Battery Cover. Formula DLX 500 F.Battery Cover. Formula DLX 500 F.
-
21517286000 Steel Stip. Formula DLX 500 F.Steel Stip. Formula DLX 500 F.
-
22517286100 Steel Strip. Formula DLX 500 F.Steel Strip. Formula DLX 500 F.
-
23207152044 Screw Hex. M5 x 20. Formula DLX 500 F.Screw Hex. M5 x 20. Formula DLX 500 F.
-
24234151401 Lock Washer 5 mm (Black). Formula DLX 500 F.Lock Washer 5 mm (Black). Formula DLX 500 F.
