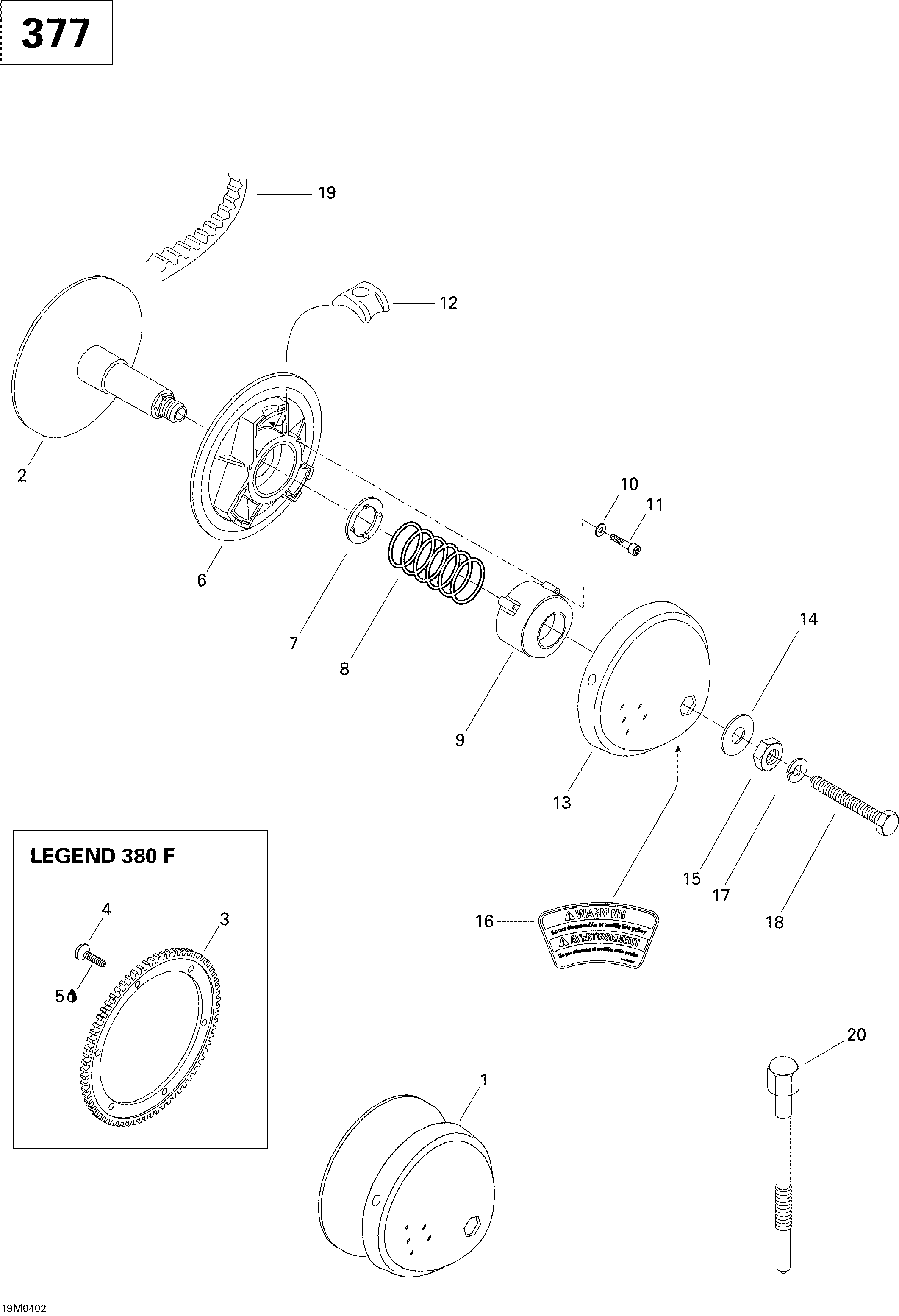

05- Drive Pulley (MX Z 380F) для BRP Ski-Doo MX Z 380F - 2004
-
№АртикулНазвание
-
2417126690 Inner FlangeInner Flange
-
6417126692 Sliding FlangeSliding Flange
-
7417126694 Guide WasherGuide Washer
-
8417126621 Spring Violet (Blue/Green)Spring Violet (Blue/Green)
-
9417126622 Spring CoverSpring Cover
-
10420245370 WasherWasher
-
11205064086 Socket Head Screw M6 x 40Socket Head Screw M6 x 40
-
12417126623 Centrifugal BlockCentrifugal Block
-
13417126696 CapCap
-
14417122400 WasherWasher
-
15417118300 NutNut
-
16516001247 Label Security (Disassembling)Label Security (Disassembling)
-
17392002800 Lock Spring WasherLock Spring Washer
-
18417113800 BoltBolt
-
19415060600 Drive BeltDrive Belt
-
20529022400 Puller Inner HalfPuller Inner Half
