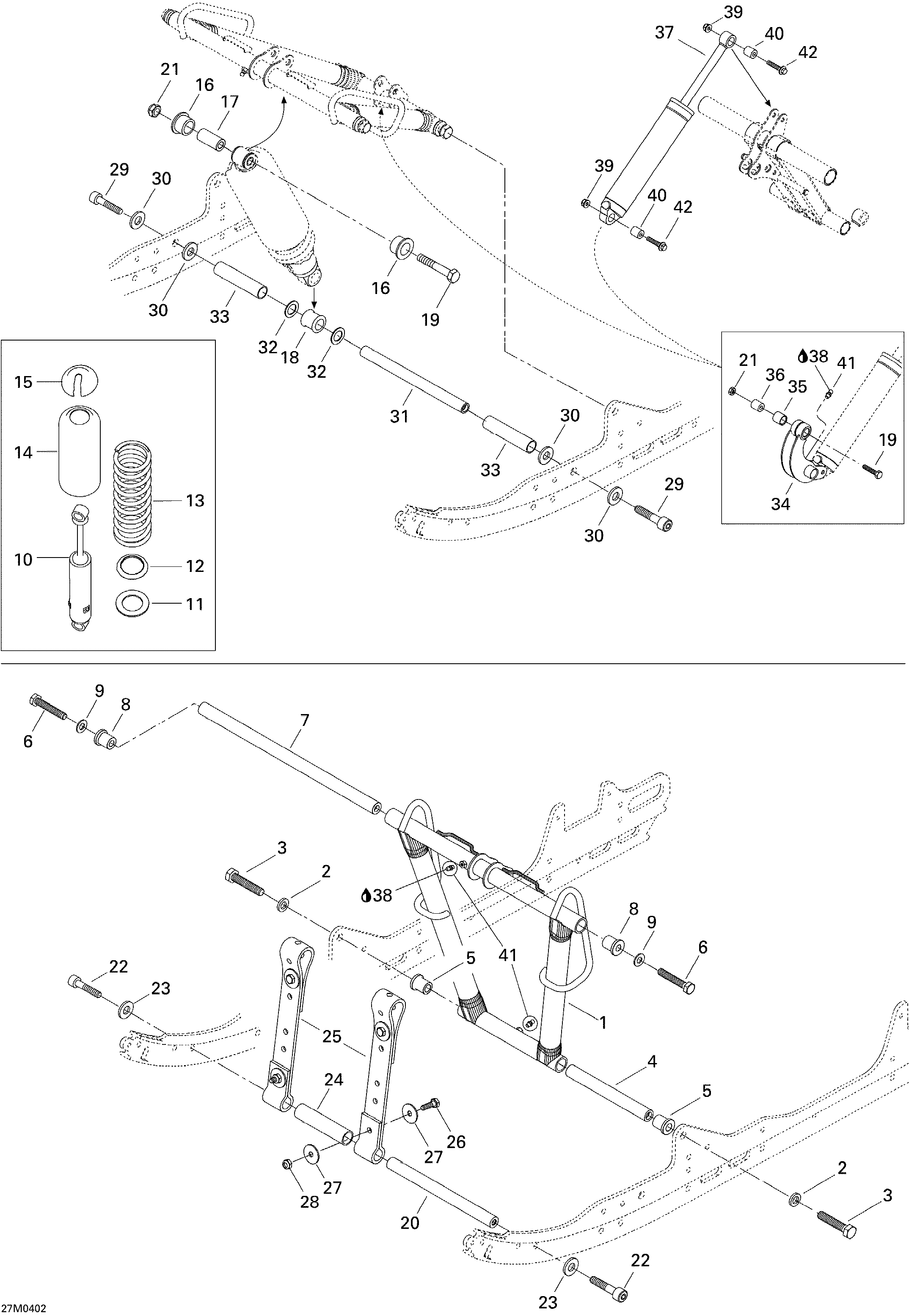

08- Front Arm MX Z для BRP Ski-Doo MX Z 380F - 2004
-
№АртикулНазвание
-
1503189292 Front armFront arm
-
2503189276 WasherWasher
-
3207226044 Hex screw M12 x 60 (scotch grip)Hex screw M12 x 60 (scotch grip)
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207205544 Hex screw M10 x 55 (scotch grip)Hex screw M10 x 55 (scotch grip)
-
7503190387 ShaftShaft
-
8503189324 CushionCushion
-
9732900049 WasherWasher
-
10503190292 Center shockCenter shock
-
11505070401 WasherWasher
-
12503187500 Spring GuideSpring Guide
-
13415070500 SpringSpring
-
503190546 Spring. EuropeSpring. Europe
-
14503188930 ProtectorProtector
-
15503140600 Spring StopperSpring Stopper
-
16503189117 CushionCushion
-
17503189282 BushingBushing
-
18503189271 CushionCushion
-
19207005044 Hex screw M10 x 50Hex screw M10 x 50
-
20503189562 AxleAxle
-
21233601416 Elastic stop nut M10Elastic stop nut M10
-
22205503544 Socket head screw M10 x 35 (scotch grip)Socket head screw M10 x 35 (scotch grip)
-
23503189564 Washer 10 mmWasher 10 mm
-
24503189265 SpacerSpacer
-
25503190563 Stopper strapStopper strap
-
26207182544 Hex screw M8 x 25Hex screw M8 x 25
-
27224081301 Flat washerFlat washer
-
28232581414 Elastic stop nut M8Elastic stop nut M8
-
29205523544 Socket head screw M12 x 35 (scotch grip)Socket head screw M12 x 35 (scotch grip)
-
30503189276 WasherWasher
-
31503189272 Center shock shaftCenter shock shaft
-
32503189273 WasherWasher
-
33503189274 SpacerSpacer
-
34503189845 RockerRocker
-
35503189388 Rocker axleRocker axle
-
36503189626 CushionCushion
-
37503190294 Rear shockRear shock
-
37503190475 Rear shock. EuropeRear shock. Europe
-
38219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
39233281414 Elastic flanged stop nut M8Elastic flanged stop nut M8
-
40414936000 CushionCushion
-
41408200700 Grease fittingGrease fitting
-
42207684044 Hex flanged screw M8 x 40Hex flanged screw M8 x 40
