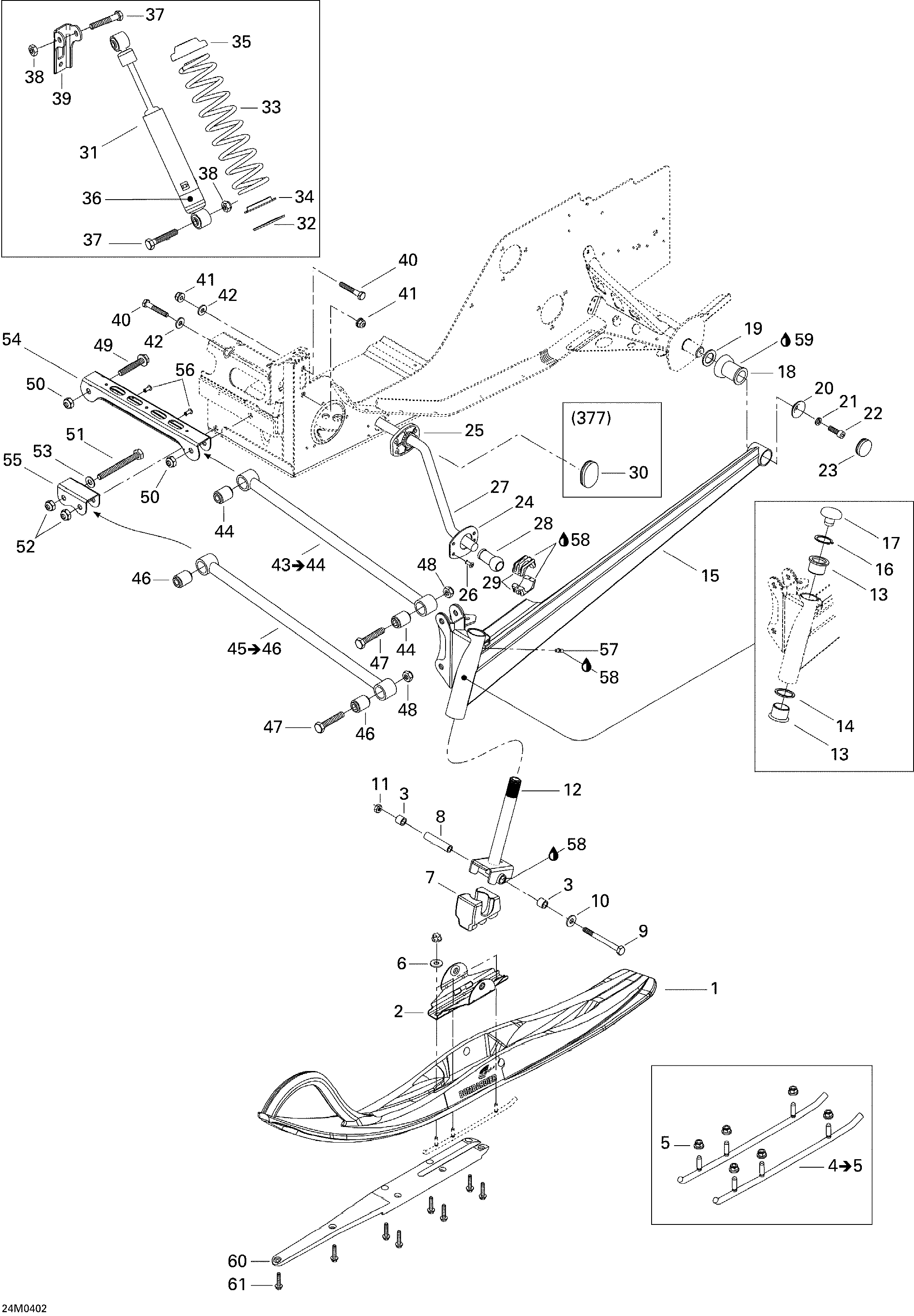

07- Front Suspension (MX Z 380F) для BRP Ski-Doo MX Z 380F - 2004
-
№АртикулНазвание
-
1505070975 Ski LinerSki Liner
-
2505070980 Bridge Ass'yBridge Ass'y
-
4860507900 Carbide Runner Kit. Includes Items 4 to 5Carbide Runner Kit. Includes Items 4 to 5
-
5233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
6234082410 Flat Washer 8 mmFlat Washer 8 mm
-
7505070978 Ski StopperSki Stopper
-
8506133300 SpacerSpacer
-
9230003044 Hex. Screw M10 x 130Hex. Screw M10 x 130
-
10234001410 Flat Washer 10 mmFlat Washer 10 mm
-
11233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
12506151234 Ski LegSki Leg
-
13505070003 CushionCushion
-
14505070004 WasherWasher
-
15505070645 R.H. Swing ArmR.H. Swing Arm
-
15505070646 L.H. Swing ArmL.H. Swing Arm
-
16371910400 CirclipCirclip
-
17572091300 CapCap
-
18570062200 DamperDamper
-
19503146700 WasherWasher
-
20506079600 CupCup
-
21234181401 Lock Washer 8 mmLock Washer 8 mm
-
22205582544 Socket Head Screw M8 x 25 (Scotch Grip)Socket Head Screw M8 x 25 (Scotch Grip)
-
30414916600 Plug (Nylon). 380FPlug (Nylon). 380F
-
31505071198 Front ShockFront Shock
-
32505070401 WasherWasher
-
33505070393 SpringSpring
-
34503187500 Spring GuideSpring Guide
-
35503140600 Spring StopperSpring Stopper
-
37207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
38233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
39518317518 R.H. Shock BracketR.H. Shock Bracket
-
39518317519 L.H. Shock BracketL.H. Shock Bracket
-
40207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
41233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
42506151245 WasherWasher
-
43505070580 Upper Arm Ass'y. Includes Items 43 to 44Upper Arm Ass'y. Includes Items 43 to 44
-
44505070025 BushingBushing
-
45505070402 Lower Arm Ass'y. Includes Items 45 to 46Lower Arm Ass'y. Includes Items 45 to 46
-
46505070025 BushingBushing
-
47207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
48233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
49207605544 Hex. Flanged Screw M10 x 55Hex. Flanged Screw M10 x 55
-
50233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
51207009544 Hex. Screw M10 x 95Hex. Screw M10 x 95
-
52233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
53234001410 Flat Washer 10 mmFlat Washer 10 mm
-
54505070010 Upper Arm BracketUpper Arm Bracket
-
55505070011 Lower Arm BracketLower Arm Bracket
-
56390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
57408200700 Grease FittingGrease Fitting
-
58219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
59293550030 Grease, Super LubeGrease, Super Lube
