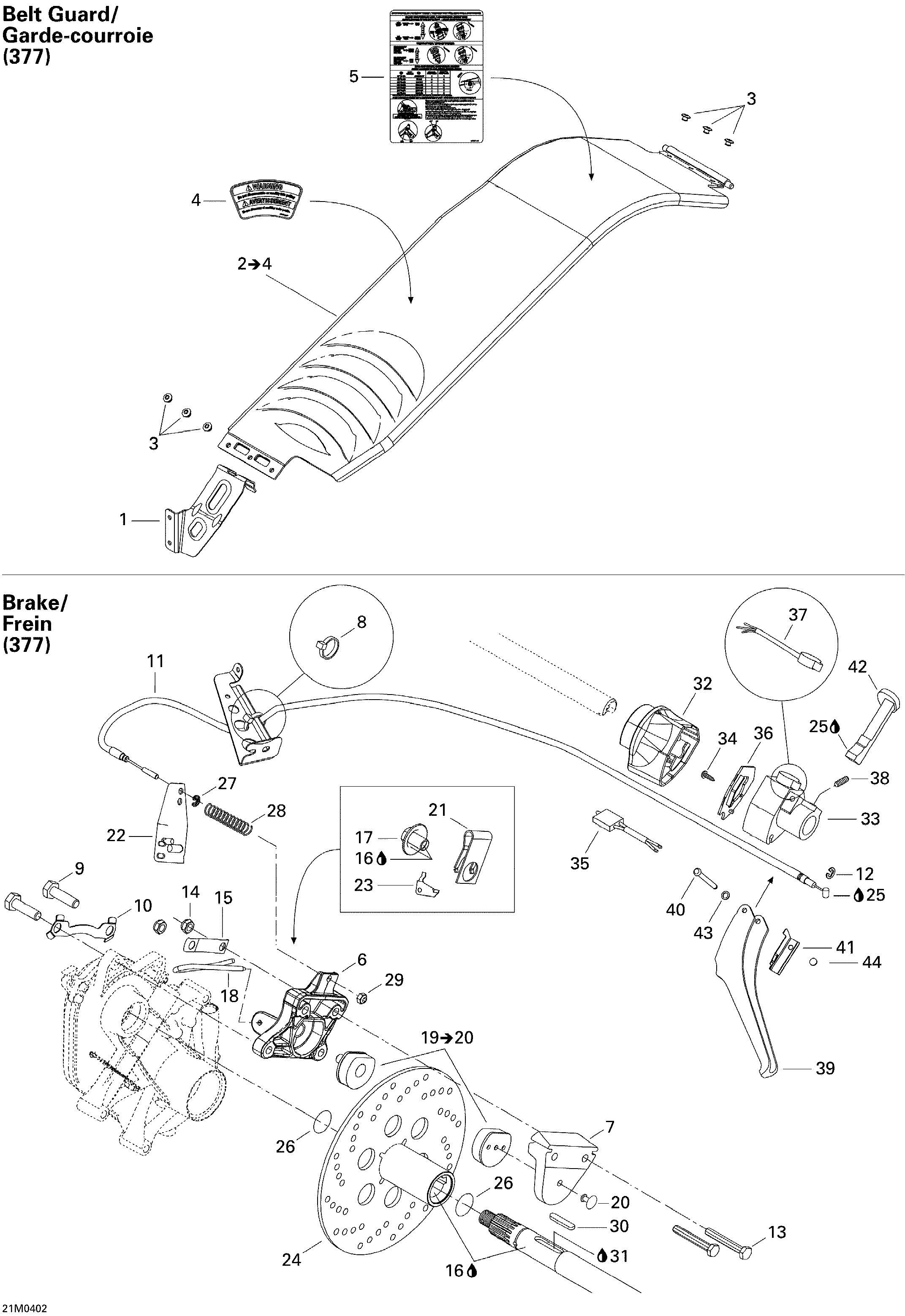

06- Brake (MX Z 380F) для BRP Ski-Doo MX Z 380F - 2004
-
№АртикулНазвание
-
1417300172 Pulley Guard BracketPulley Guard Bracket
-
2417300173 Belt Guard Ass'y. Includes Items 2 to 4Belt Guard Ass'y. Includes Items 2 to 4
-
3390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
4516001190 Label Security (Belt Guard)Label Security (Belt Guard)
-
5516001639 Suspension Adjustment DecalSuspension Adjustment Decal
-
6507032303 CaliperCaliper
-
7414466800 CaliperCaliper
-
8414115200 Tie-RapTie-Rap
-
9207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
10507032316 Locking TabLocking Tab
-
11507032315 Brake CableBrake Cable
-
12414274500 CirclipCirclip
-
13207085544 Hex. Screw M8 x 55Hex. Screw M8 x 55
-
14232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
15507020400 Locking TabLocking Tab
-
16293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
17507032310 Wheel RatchetWheel Ratchet
-
18507032306 Hair PinHair Pin
-
19860701700 Brake Pad Kit. Includes Items 19 to 20Brake Pad Kit. Includes Items 19 to 20
-
20390409600 Pop Rivet 3/16''Pop Rivet 3/16''
-
21507020200 Release SpringRelease Spring
-
22507021500 LeverLever
-
23507009400 Ratchet SpringRatchet Spring
-
24507029000 Brake DiskBrake Disk
-
25293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
26414928900 O-RingO-Ring
-
27371901300 CirclipCirclip
-
28414460600 SpringSpring
-
29232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
30507021300 KeyKey
-
31293800073 Loctite 277, 10 mlLoctite 277, 10 ml
-
32507032311 Brake CoverBrake Cover
-
33507032313 Brake Housing Ass'y. Includes Items 33 to 38Brake Housing Ass'y. Includes Items 33 to 38
-
33572086500 Brake HousingBrake Housing
-
34414473200 Phillips ScrewPhillips Screw
-
35507032318 Brake SwitchBrake Switch
-
36507032328 PlatePlate
-
37507032314 Dimmer SwitchDimmer Switch
-
38414440800 Set Screw M8Set Screw M8
-
39572025700 Brake HandleBrake Handle
-
40517229400 PinPin
-
41507032317 SpringSpring
-
42572025200 Brake LeverBrake Lever
-
43414729400 Spring WasherSpring Washer
-
44389804300 Push NutPush Nut
