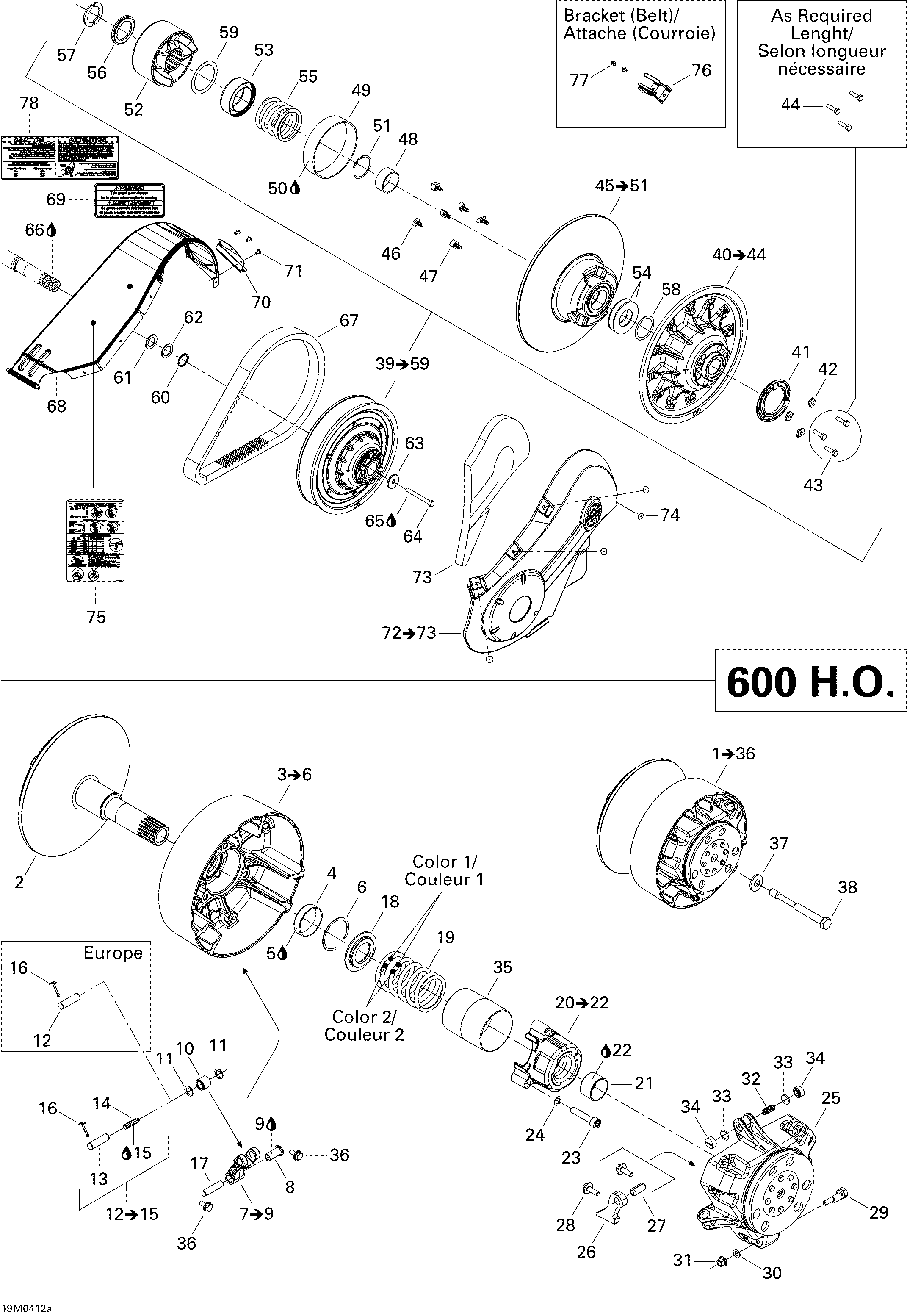

05- Pulley System (600 HO) для BRP Ski-Doo Summit 600 HO - 2004
-
№АртикулНазвание
-
2417222294 Fixed Flange Ass'YFixed Flange Ass'Y
-
3417222181 Sliding Flange Ass'Y. Includes items 3 to 6Sliding Flange Ass'Y. Includes items 3 to 6
-
4417006900 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'Y. Includes items 7 to 9Lever Ass'Y. Includes items 7 to 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417003900 Roller Ass'YRoller Ass'Y
-
11417004302 Stopper WasherStopper Washer
-
12417004308 Pin. 600 H.O. EuropePin. 600 H.O. Europe
-
12417222478 Dowel Pin. Includes items 12 to 15 / 600 H.O.Dowel Pin. Includes items 12 to 15 / 600 H.O.
-
13417222477 Threaded Pin. 600 H.O.Threaded Pin. 600 H.O.
-
14206262099 Socket Set Screw M6 X 20. 600 H.O.Socket Set Screw M6 X 20. 600 H.O.
-
15293800060 Loctite 243, 10 ml. 600 H.O.Loctite 243, 10 ml. 600 H.O.
-
16732958001 Cotter PinCotter Pin
-
17417009202 Lever AxleLever Axle
-
18417222312 Spring SeatSpring Seat
-
19417222371 Spring (Green/White). 600 H.O. EuropeSpring (Green/White). 600 H.O. Europe
-
417222703 Spring (Violet/White). 600 H.O.Spring (Violet/White). 600 H.O.
-
20417007500 Spring Cover Ass'Y. Includes items 20 to 22Spring Cover Ass'Y. Includes items 20 to 22
-
21417009204 BushingBushing
-
22413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
23205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
24250200009 Lock Washer 8 mmLock Washer 8 mm
-
25417222213 Governor CupGovernor Cup
-
26417222515 Ramp 412. 600 H.O. EuropeRamp 412. 600 H.O. Europe
-
417222552 Ramp 417. 600 H.O.Ramp 417. 600 H.O.
-
27250400009 Rolled Pin M10 X 22Rolled Pin M10 X 22
-
28250000059 Hex Flanged Screw M6 X 18Hex Flanged Screw M6 X 18
-
29417005500 Calibration ScrewCalibration Screw
-
30417005600 WasherWasher
-
31233061414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
32417005700 SpringSpring
-
33732401030 O-RingO-Ring
-
34417005800 Slider ShoeSlider Shoe
-
35417009205 GuardGuard
-
36210361296 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
37250200006 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
38417120000 Drive Pulley BoltDrive Pulley Bolt
-
40417126603 Fixed Flange Ass'Y. Includes items 40 to 44Fixed Flange Ass'Y. Includes items 40 to 44
-
41415005800 Adjustment RingAdjustment Ring
-
42415005900 Adjustment ShimAdjustment Shim
-
43207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
44207162244 Hex Screw M6 X 22Hex Screw M6 X 22
-
45417126605 Sliding Flange Ass'Y. Includes items 45 to 51Sliding Flange Ass'Y. Includes items 45 to 51
-
46417126373 Rear Cam Shoe SliderRear Cam Shoe Slider
-
47417126374 Front Cam Shoe SliderFront Cam Shoe Slider
-
49414978100 BushingBushing
-
50413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
51371911200 CirclipCirclip
-
52417126724 Came. 600 H.O. EuropeCame. 600 H.O. Europe
-
417126385 Cam Ass'Y. 600 H.O.Cam Ass'Y. 600 H.O.
-
53417126381 GuardGuard
-
54504099600 Thrust WasherThrust Washer
-
55417126686 Spring. 600 H.O.Spring. 600 H.O.
-
417126687 Release Spring (Black). 600 H.O. EuropeRelease Spring (Black). 600 H.O. Europe
-
56417126733 SpacerSpacer
-
57417126734 Half KeyHalf Key
-
58504112300 ShimShim
-
59417126322 Swivel AbutmentSwivel Abutment
-
60417300231 SpacerSpacer
-
61417300054 SpacerSpacer
-
62504112000 ShimShim
-
63517302322 WasherWasher
-
64207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
65293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
66293800070 Loctite 767, Antiseize, 8 OzLoctite 767, Antiseize, 8 Oz
-
67417300197 Drive Belt. 600 H.O.Drive Belt. 600 H.O.
-
68417300213 Belt GuardBelt Guard
-
69516001190 Warning LabelWarning Label
-
70417300216 Belt Guard BracketBelt Guard Bracket
-
71390402200 Rivet 3/16''Rivet 3/16''
-
72417300248 Side Protector Ass'Y. Includes items 72 to 73Side Protector Ass'Y. Includes items 72 to 73
-
73417300246 FoamFoam
-
74293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
75516001639 Suspension Adjustment DecalSuspension Adjustment Decal
-
76517281905 BracketBracket
-
77390402200 Rivet 3/16''Rivet 3/16''
-
78516001232 Instruction Label. Canada / U.S.A.Instruction Label. Canada / U.S.A.
