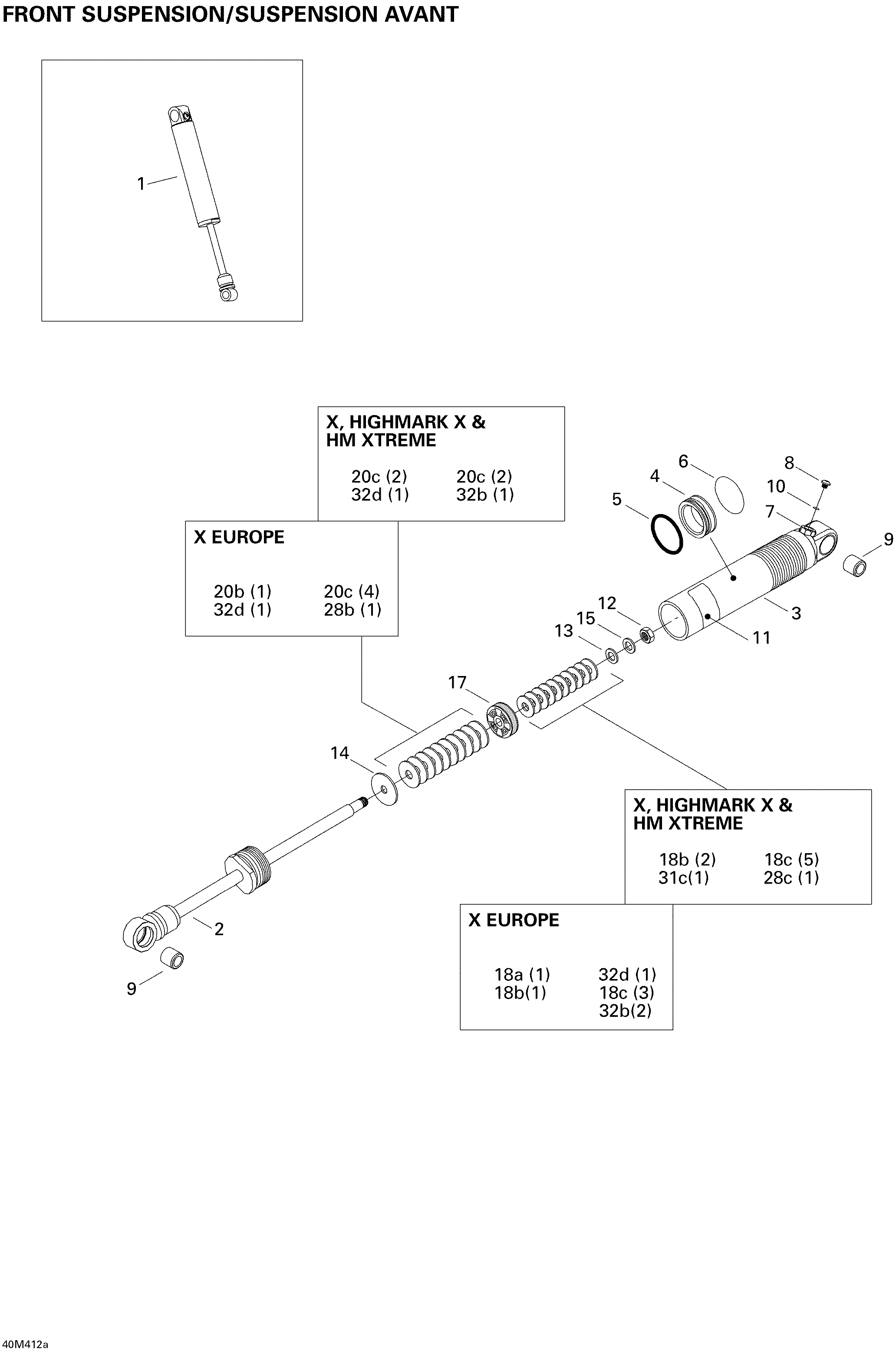

07- Front Take Apart Shocks для BRP Ski-Doo Summit 600 HO - 2004
-
№АртикулНазвание
-
1505071135 Front Shock. X, Highmark X, HM XtremeFront Shock. X, Highmark X, HM Xtreme
-
505071398 Front Shock. X EuropeFront Shock. X Europe
-
4503189309 Free PistonFree Piston
-
5414888312 O-RingO-Ring
-
6503189308 Piston RingPiston Ring
-
7505070398 Air Valve RingAir Valve Ring
-
8505070399 ScrewScrew
-
10505070400 O-RingO-Ring
-
16293600035 Shock Oil (Not Shown)Shock Oil (Not Shown)
-
17414888305 Piston (2 X 0,3-2) (C36)Piston (2 X 0,3-2) (C36)
-
18a415039100 Leaf Valve O30 X 0,254 (C36)Leaf Valve O30 X 0,254 (C36)
-
18b414888318 Leaf Valve O30 X 0,203 (C36)Leaf Valve O30 X 0,203 (C36)
-
18c414888319 Leaf Valve O30 X 0.152Leaf Valve O30 X 0.152
-
19b414888320 Leaf Valve O28 X 0.203Leaf Valve O28 X 0.203
-
19c414888321 Leaf Valve O28 X 0.152Leaf Valve O28 X 0.152
-
20a415039000 Leaf Valve O26 X 0.254Leaf Valve O26 X 0.254
-
20b414888322 Leaf Valve O26 X 0.203Leaf Valve O26 X 0.203
-
20c414888323 Leaf Valve O26 X 0.152Leaf Valve O26 X 0.152
-
22b414888324 Leaf Valve O22 X 0.203Leaf Valve O22 X 0.203
-
22c414888325 Leaf Valve O22 X 0.152Leaf Valve O22 X 0.152
-
23D414888340 Leaf Valve O21 X 0.114Leaf Valve O21 X 0.114
-
24b414888326 Leaf Valve O20 X 0.203Leaf Valve O20 X 0.203
-
24c414888327 Leaf Valve O20 X 0.152Leaf Valve O20 X 0.152
-
24d414888328 Leaf Valve O20 X 0.114Leaf Valve O20 X 0.114
-
26b414888329 Leaf Valve O18 X 0.203Leaf Valve O18 X 0.203
-
26c414888330 Leaf Valve O18 X 0.152Leaf Valve O18 X 0.152
-
28a414888331 Leaf Valve O16 X 0.254Leaf Valve O16 X 0.254
-
28b414888332 Leaf Valve O16 X 0.203Leaf Valve O16 X 0.203
-
28c414888333 Leaf Valve O16 X 0.152Leaf Valve O16 X 0.152
-
28D415038900 Leaf Valve O16 X 0.114Leaf Valve O16 X 0.114
-
29a414888334 Leaf Valve O15 X 0.254Leaf Valve O15 X 0.254
-
29b414888335 Leaf Valve O15 X 0.203Leaf Valve O15 X 0.203
-
29c414888336 Leaf Valve O15 X 0.152Leaf Valve O15 X 0.152
-
29D414888337 Leaf Valve O15 X 0.114Leaf Valve O15 X 0.114
-
32a503189538 Leaf Valve O12 X 0.254Leaf Valve O12 X 0.254
-
32b414888338 Leaf Valve O12 X 0.203Leaf Valve O12 X 0.203
-
32c414888339 Leaf Valve O12 X 0.152Leaf Valve O12 X 0.152
-
32d415038800 Leaf Valve O12 X 0.114Leaf Valve O12 X 0.114
