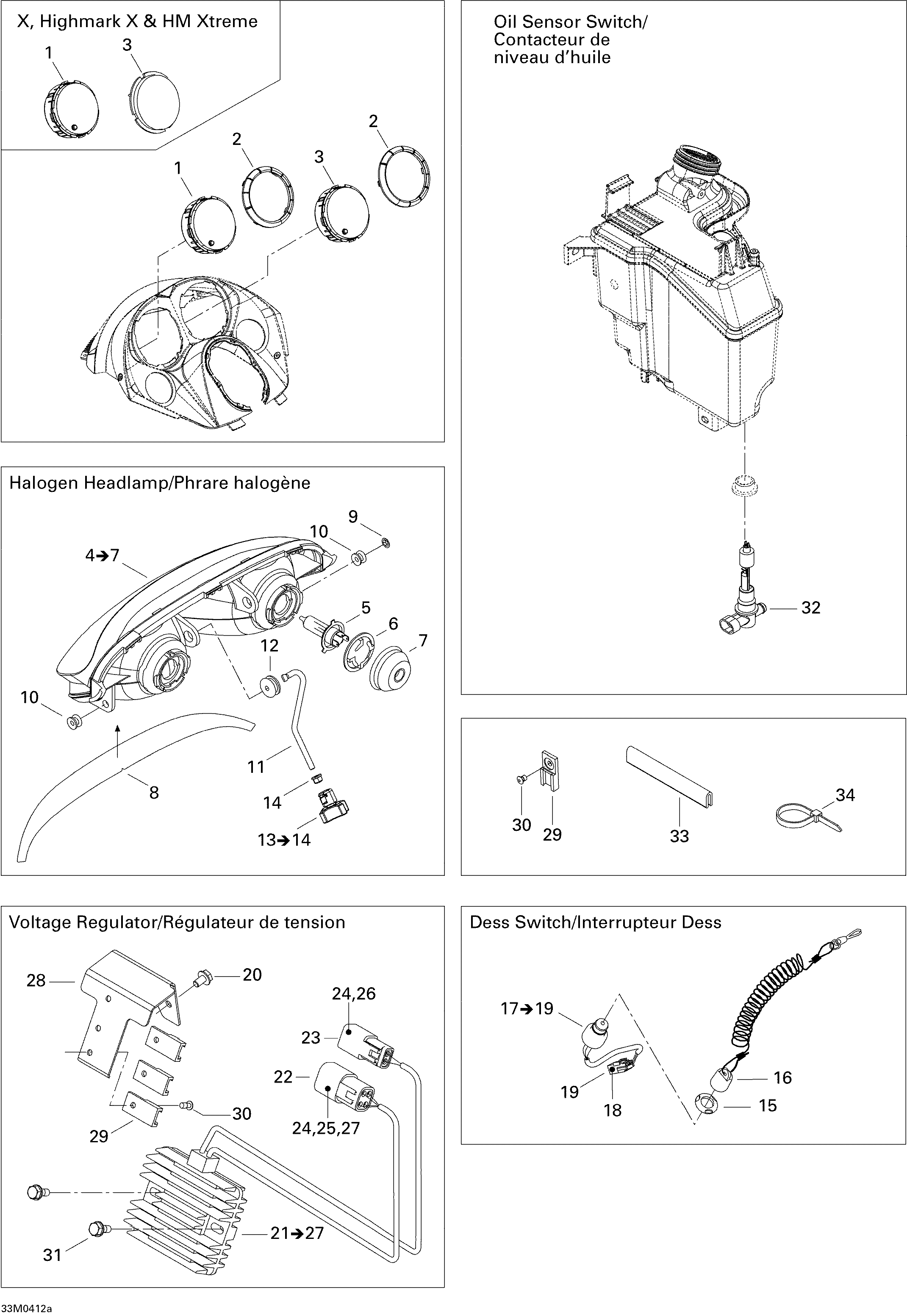

10- Electrical System 1 для BRP Ski-Doo Summit 600 HO - 2004
-
№АртикулНазвание
-
1515176001 Speedometer. Sport, Adrenaline & HighmarkSpeedometer. Sport, Adrenaline & Highmark
-
1515176013 Tachometer. X & Highmark XTachometer. X & Highmark X
-
515176101 Tachometer. HM XtremeTachometer. HM Xtreme
-
2515175651 Gauge RingGauge Ring
-
3515175901 Bottom Ring. X, Highmark X & HM XtremeBottom Ring. X, Highmark X & HM Xtreme
-
3515176072 Tachometer. Sport, Adrenaline & HighmarkTachometer. Sport, Adrenaline & Highmark
-
4515175909 Halogen Headlamp. Includes items 4 to 7Halogen Headlamp. Includes items 4 to 7
-
5410504401 Halogen Bulb (60/55 W, 12 V)Halogen Bulb (60/55 W, 12 V)
-
6515175910 Bulb HolderBulb Holder
-
7515175911 CoverCover
-
8516001328 Headlamp DecalHeadlamp Decal
-
9732610072 Push NutPush Nut
-
10515175760 Headlamp BushingHeadlamp Bushing
-
11515175521 Adjuster RodAdjuster Rod
-
12415100800 GrommetGrommet
-
13515175975 Handle. Includes items 13 to 14Handle. Includes items 13 to 14
-
14233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
15278000508 Safety Switch NutSafety Switch Nut
-
16515166900 Dess Cap Ass'YDess Cap Ass'Y
-
17515175797 Dess Switch. Includes items 17 to 19Dess Switch. Includes items 17 to 19
-
18515175232 Male TerminalMale Terminal
-
19515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
20210261080 Hex Forming Screw M6 X 10Hex Forming Screw M6 X 10
-
21515176100 Voltage Regulator. Includes items 21 to 27Voltage Regulator. Includes items 21 to 27
-
22278001477 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
23278001674 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
24515175568 Male TerminalMale Terminal
-
25278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
26278001672 Male Lock (2 Circuits)Male Lock (2 Circuits)
-
27293000052 PlugPlug
-
28515175916 Housing SupportHousing Support
-
29515175917 Clip (Black)Clip (Black)
-
30293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
31210262080 Hex Forming Screw M6 X 20Hex Forming Screw M6 X 20
-
32515176016 Oil Sensor LevelOil Sensor Level
-
33509000263 TrimTrim
-
34293750008 Tie Rap 350 mmTie Rap 350 mm
