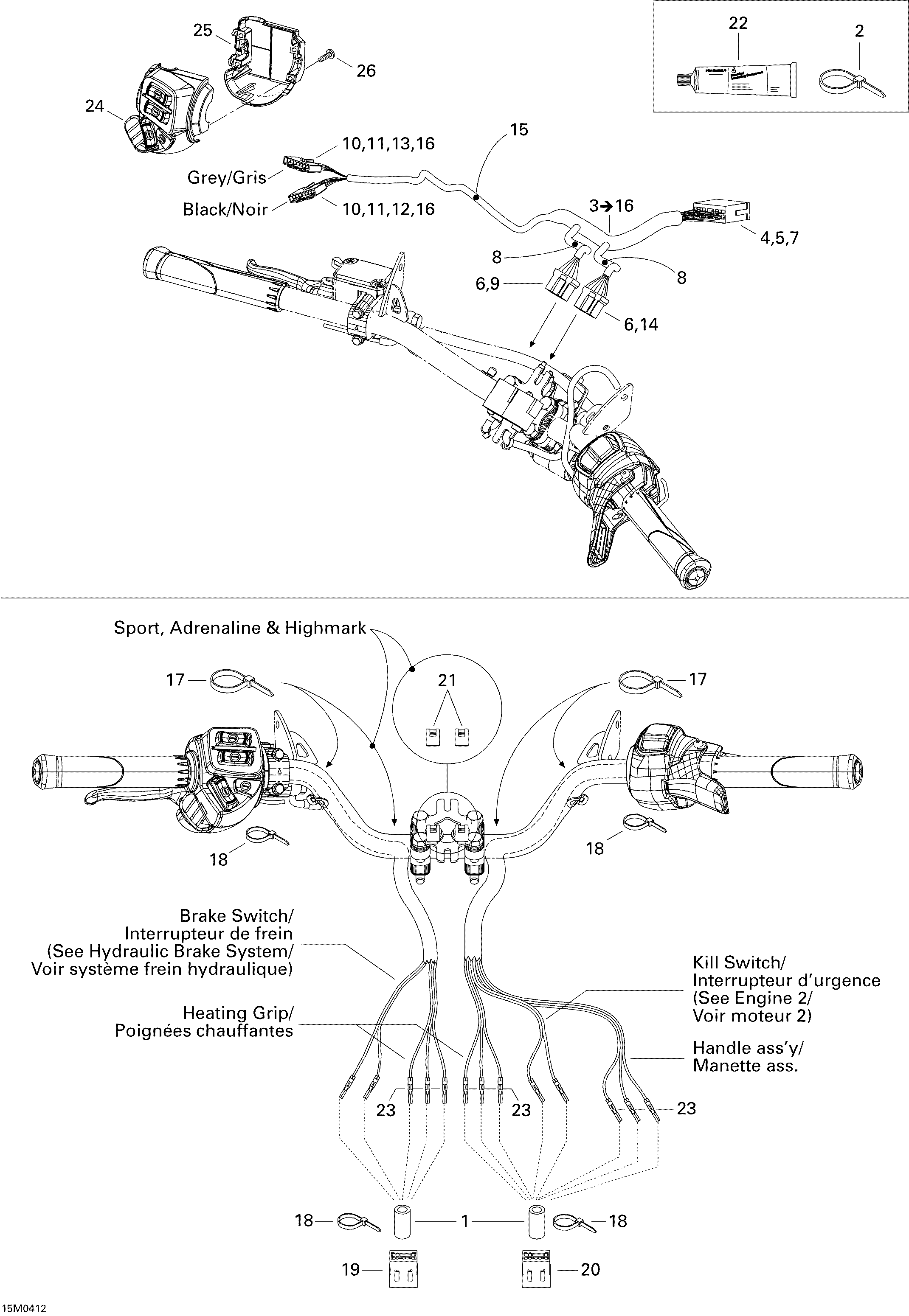

10- Steering Harness для BRP Ski-Doo Summit 600 HO - 2004
-
№АртикулНазвание
-
1515175830 Tubing 1/2''Tubing 1/2''
-
2293750008 Tie Rap 350 mmTie Rap 350 mm
-
3515175991 Steering Wiring Harness. Includes items 3 to 16 / X, Highmark X & HM XtremeSteering Wiring Harness. Includes items 3 to 16 / X, Highmark X & HM Xtreme
-
515176096 Steering Wiring Harness. Includes items 3 to 16 / Sport, Adrenaline & HighmarkSteering Wiring Harness. Includes items 3 to 16 / Sport, Adrenaline & Highmark
-
4515175232 Male TerminalMale Terminal
-
5515175273 Male TerminalMale Terminal
-
6515175231 Female TerminalFemale Terminal
-
7515175352 Male Terminal Housing (13 Circuits)Male Terminal Housing (13 Circuits)
-
8415079900 Tubing (10 mm)Tubing (10 mm)
-
9515175543 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
10515175808 Female TerminalFemale Terminal
-
11515175809 Female Lock (8 Circuits)Female Lock (8 Circuits)
-
12515175807 Female Terminal Housing (8 Circuits) (Black)Female Terminal Housing (8 Circuits) (Black)
-
13515175810 Female Terminal Housing (8 Circuits) (Gray)Female Terminal Housing (8 Circuits) (Gray)
-
14515175819 Female Terminal Housing (8 Circuits)Female Terminal Housing (8 Circuits)
-
15515175830 Tubing 1/2''Tubing 1/2''
-
16515175941 Female TerminalFemale Terminal
-
17414115200 Tie Rap 180 mmTie Rap 180 mm
-
18293750002 Tie Rap 130 mmTie Rap 130 mm
-
19515175662 Male Terminal Housing (6 Circuits)Male Terminal Housing (6 Circuits)
-
20515175817 Male Housing Terminal (8 Circuits)Male Housing Terminal (8 Circuits)
-
21515175944 Housing Support. Sport, Adrenaline & HighmarkHousing Support. Sport, Adrenaline & Highmark
-
22293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
23515175232 Male TerminalMale Terminal
-
24515176061 LH Switch Housing. StandardLH Switch Housing. Standard
-
515176062 LH Switch Housing. ReverseLH Switch Housing. Reverse
-
25515175926 Housing Switch PlateHousing Switch Plate
-
26250000100 ScrewScrew
