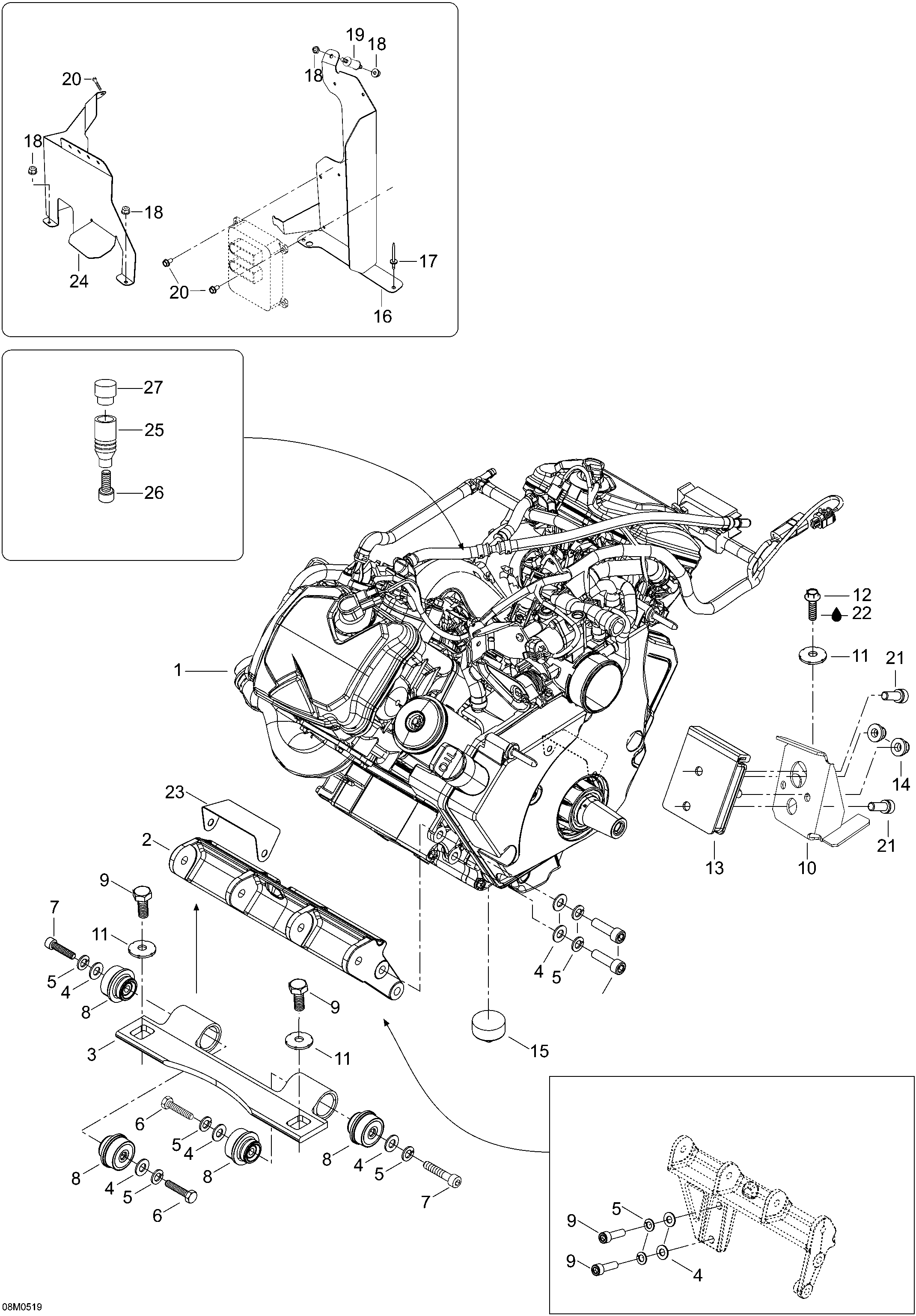

01- Engine And Engine Support для BRP Ski-Doo Expedition V-1000 - 2005
-
№АртикулНазвание
-
1M51004190 Engine 1004Engine 1004
-
2605250905 Engine Mount. PlateEngine Mount. Plate
-
3512059425 Front Engine SupportFront Engine Support
-
4234001410 Flat Washer 10 mmFlat Washer 10 mm
-
5M20113 Lock Spring WasherLock Spring Washer
-
6205003544 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
7M40352 HexCap ScrewHexCap Screw
-
8512059691 Rubber MountRubber Mount
-
9207103044 Hex Screw M10 X 30Hex Screw M10 X 30
-
10605350835 Engine Rear SupportEngine Rear Support
-
11512056700 Lock WasherLock Washer
-
12M40335 ScrewScrew
-
13512059316 Rubber MountRubber Mount
-
14M33074 NutNut
-
15512059710 StopperStopper
-
16605250844 Module SupportModule Support
-
17M36083 RivetRivet
-
18M33200 Nut M6Nut M6
-
19M12419 Rubber MountRubber Mount
-
20M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
21M40053 ScrewScrew
-
22293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
23514053620 Front DeflectorFront Deflector
-
24605351330 Temperature ShieldTemperature Shield
-
25605350745 SupportSupport
-
26M40053 ScrewScrew
-
27570044700 Rubber PumperRubber Pumper
