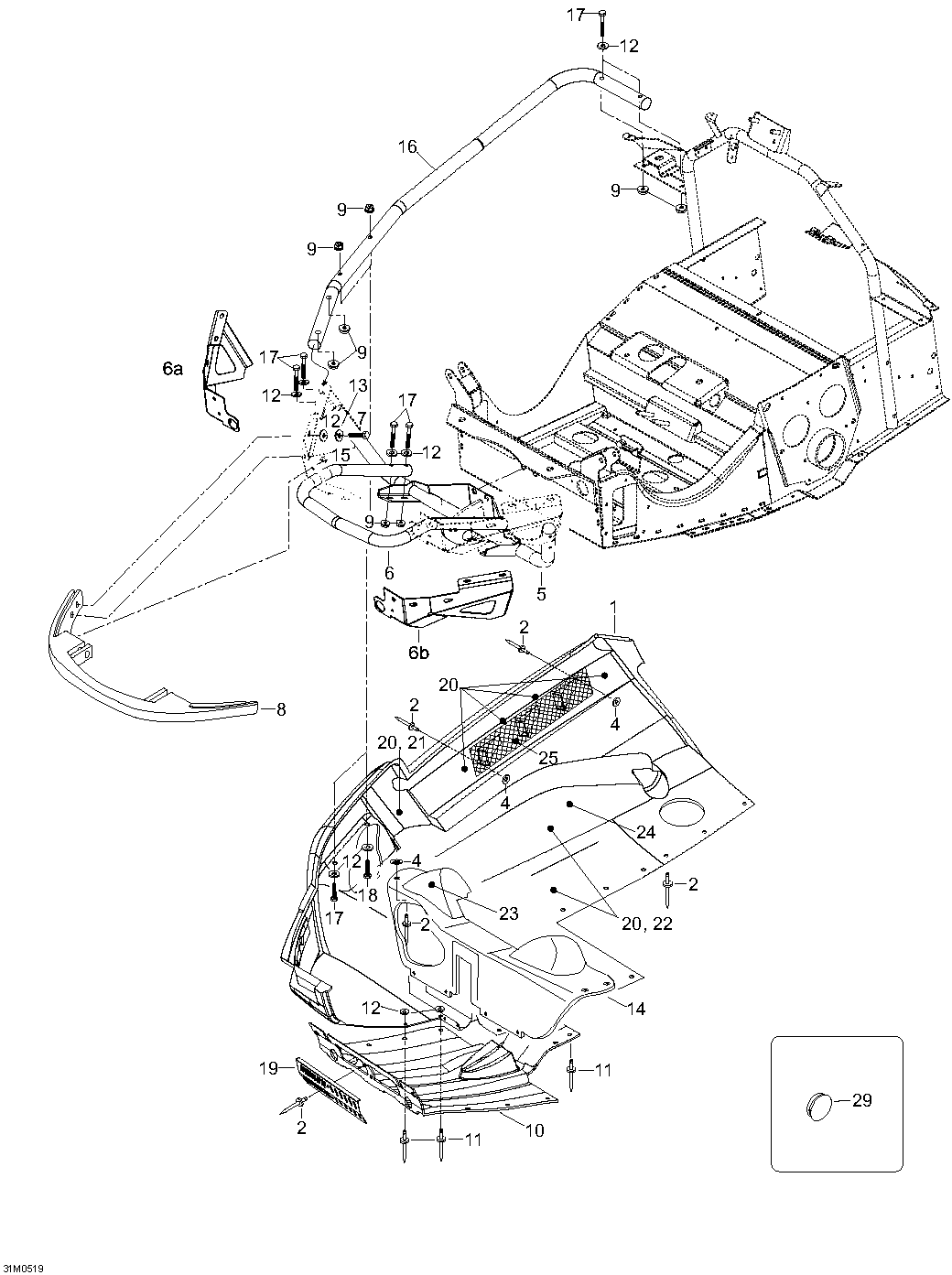

09- Bottom Pan для BRP Ski-Doo Expedition V-1000 - 2005
-
№АртикулНазвание
-
1605152528 RH Bottom PanRH Bottom Pan
-
1605149805 LH Bottom PanLH Bottom Pan
-
2M36037 RivetRivet
-
3M36083 RivetRivet
-
4M20008 Washer 5 mmWasher 5 mm
-
5605350850 Bumper SupportBumper Support
-
6605351509 Bumper FrontBumper Front
-
6a605250848 RH Bumper SupportRH Bumper Support
-
6b605250847 LH Bumper SupportLH Bumper Support
-
7207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
8502006719 Bumper (Black)Bumper (Black)
-
9M33200 Nut M6Nut M6
-
10605152620 Bottom Pan, MiddleBottom Pan, Middle
-
11M36072 RivetRivet
-
12M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
13234161471 Lock Washer 6 mmLock Washer 6 mm
-
14605252529 CoverCover
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
16605152371 Side BumperSide Bumper
-
17207064044 Hex Screw M6 X 40Hex Screw M6 X 40
-
18M40084 Screw M6 X 45Screw M6 X 45
-
19605252655 PlatePlate
-
20M44001 Sheet ReflectionSheet Reflection
-
21605351212 Heat Protection TapHeat Protection Tap
-
22605351213 Heat Protection TapHeat Protection Tap
-
23605351214 Heat Protection TapHeat Protection Tap
-
24605351367 LH Acoustic FoamLH Acoustic Foam
-
25605352541 GrillGrill
-
26605451560 Heat ProtectorHeat Protector
-
27605451561 Heat ProtectorHeat Protector
-
28605451562 Heat ProtectorHeat Protector
-
29570277300 Bottom Pan CapBottom Pan Cap
