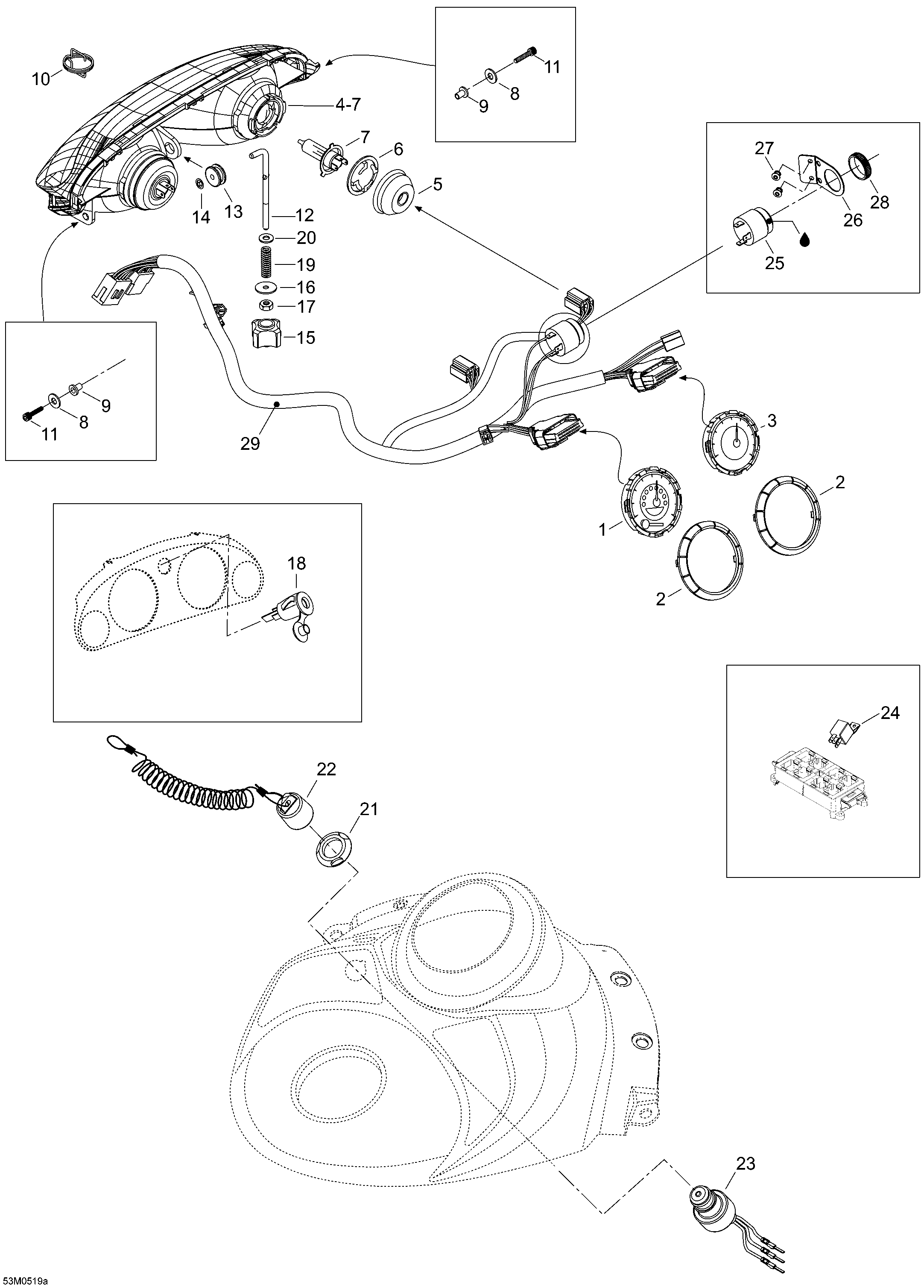

10- Electrical Accessories 1 для BRP Ski-Doo Expedition V-1000 - 2005
-
№АртикулНазвание
-
1515176244 SpeedometerSpeedometer
-
2515175651 Gauge RingGauge Ring
-
3515176275 TachometerTachometer
-
4515175909 Halogen Headlamp. Includes 4 to 7Halogen Headlamp. Includes 4 to 7
-
5515175911 CoverCover
-
6515175910 Bulb HolderBulb Holder
-
7410504401 Halogen BulbHalogen Bulb
-
8M20008 Washer 5 mmWasher 5 mm
-
9250100018 Nut M5Nut M5
-
10M5447238 SpringSpring
-
11M40235 Screw M5X35Screw M5X35
-
12605450023 Adjuster RodAdjuster Rod
-
13415100800 GrommetGrommet
-
14732610072 Push NutPush Nut
-
15515175548 HandleHandle
-
16M20038 WasherWasher
-
17232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
18M42026 Current OutletCurrent Outlet
-
19415100600 SpringSpring
-
20234061410 Flat Washer 6 mmFlat Washer 6 mm
-
21278000508 NutNut
-
22515166900 Dess CapDess Cap
-
23515166800 Terminal Ass'YTerminal Ass'Y
-
24410113604 RelayRelay
-
25515176035 HornHorn
-
265447941 BracketBracket
-
27M36005 RivetRivet
-
28414805101 Plastic NutPlastic Nut
-
29605149624 Wiring HarnessWiring Harness
