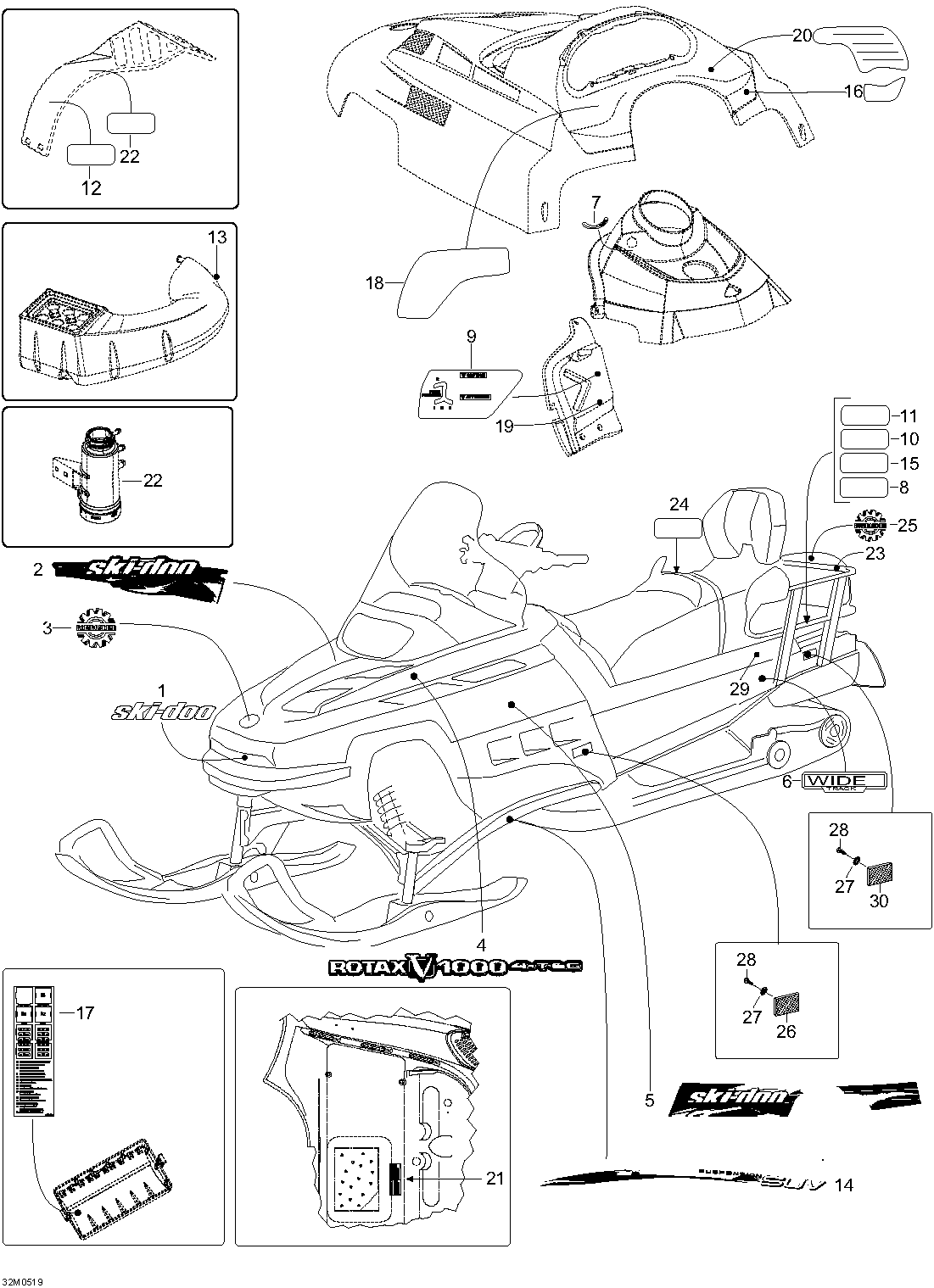

09- Decals для BRP Ski-Doo Expedition V-1000 - 2005
-
№АртикулНазвание
-
1516000338 Decal - «Ski-Doo»Decal - «Ski-Doo»
-
2516002155 Hood Decal, Middle. SeashoreHood Decal, Middle. Seashore
-
2516002500 Hood Decal, Middle. BlackHood Decal, Middle. Black
-
3704900130 Bombardier LogoBombardier Logo
-
4516002156 Decal Rotax V-1000. SeashoreDecal Rotax V-1000. Seashore
-
4516002286 Rotax V1000 Decal. BlackRotax V1000 Decal. Black
-
5516002157 R.h. Side Hood Decal. SeashoreR.h. Side Hood Decal. Seashore
-
5516002502 R.h. Side Hood Decal. BlackR.h. Side Hood Decal. Black
-
5516002158 L.h. Side Hood Decal. SeashoreL.h. Side Hood Decal. Seashore
-
5516002503 L.h. Side Hood Decal. BlackL.h. Side Hood Decal. Black
-
6516000024 Frame DecalFrame Decal
-
7516001335 Dess DecalDess Decal
-
8516002673 Warning DecalWarning Decal
-
9516001201 Reverse DecalReverse Decal
-
10516002667 Warning Label, Security, HitchWarning Label, Security, Hitch
-
11516002685 Warning Label, Security, HitchWarning Label, Security, Hitch
-
12516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
13516001191 Caution Label (Air Intake)Caution Label (Air Intake)
-
14516002159 R.h. Arm Decal. SeashoreR.h. Arm Decal. Seashore
-
14516002521 R.h. Arm Decal. BlackR.h. Arm Decal. Black
-
14516002160 L.h. Arm Decal. SeashoreL.h. Arm Decal. Seashore
-
14516002522 L.h. Arm Decal. BlackL.h. Arm Decal. Black
-
15516002666 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
-
16516002692 Instruction LabelInstruction Label
-
17605452411 Decal, FuseDecal, Fuse
-
18516002693 Instruction LabelInstruction Label
-
19516002694 Instruction LabelInstruction Label
-
20516002695 Instruction LabelInstruction Label
-
21516001791 Decal - Checking Engine Oil LevelDecal - Checking Engine Oil Level
-
22516002664 Security LabelSecurity Label
-
23605448799 Pulling Bar DecalPulling Bar Decal
-
24516002853 Instruction LabelInstruction Label
-
25516002487 Bombardier LogoBombardier Logo
-
26414510200 Reflector (Amber)Reflector (Amber)
-
27234451418 Washer M5Washer M5
-
28M40070 ScrewScrew
-
29418001800 Heat Grip DecalHeat Grip Decal
-
30414510100 Reflector (Red)Reflector (Red)
