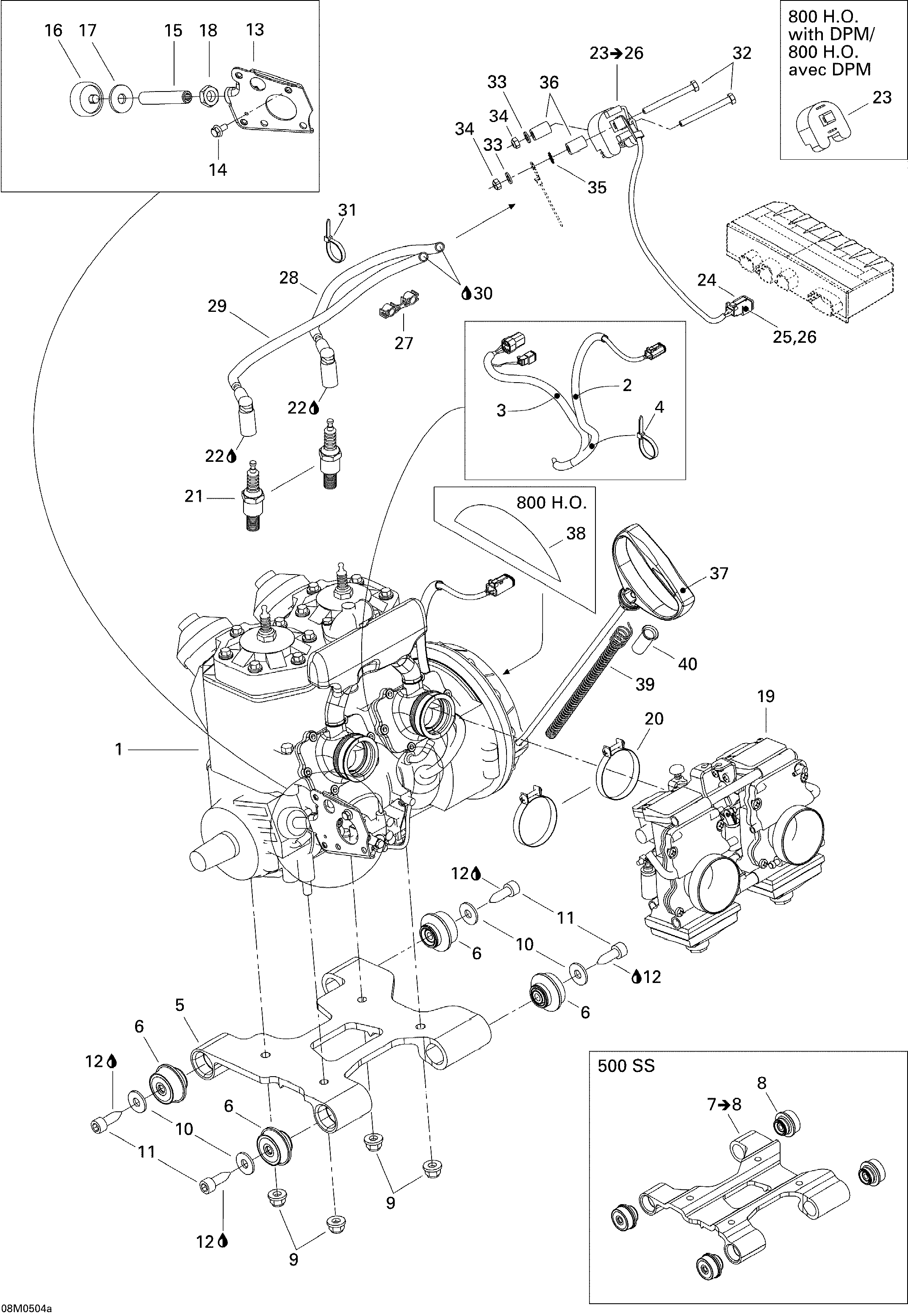

01- Engine 1, 500SS для BRP Ski-Doo GTX 500SS - 2005
-
№АртикулНазвание
-
1400509757 Engine 593 Rer. 500 SSEngine 593 Rer. 500 SS
-
2409901800 Tubing, 13 mmTubing, 13 mm
-
3415079900 Tubing, 10 mmTubing, 10 mm
-
4293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
7512059841 Engine Support. Includes 7 to 8 / 500 SSEngine Support. Includes 7 to 8 / 500 SS
-
8512059691 Rubber Mount. 500 SSRubber Mount. 500 SS
-
9233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
10506151251 WasherWasher
-
11250000094 Screw M10 X 30Screw M10 X 30
-
12413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
13512059840 PlatePlate
-
14207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
15250500007 Stopper ScrewStopper Screw
-
16512059610 StopperStopper
-
17512059057 WasherWasher
-
18232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
19403138779 Carburetor Kit Tm40-b313. 500 SSCarburetor Kit Tm40-b313. 500 SS
-
20512059835 Gemi ClampGemi Clamp
-
21512059552 Spark Plug, NGK Br9ecsSpark Plug, NGK Br9ecs
-
22293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
23512059564 Ignition Coil. Includes 23 to 26 / 500 SSIgnition Coil. Includes 23 to 26 / 500 SS
-
24515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
25515175707 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
26278000632 Female TerminalFemale Terminal
-
27410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
28512059695 Cable Ass'y, 300 mmCable Ass'y, 300 mm
-
29512059696 Cable Ass'y, 375 mmCable Ass'y, 375 mm
-
30293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
31414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
32207066044 Hex Screw M6 X 60Hex Screw M6 X 60
-
33234061410 Flat Washer 6 mmFlat Washer 6 mm
-
34232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
35394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
36517203200 SpacerSpacer
-
37572084400 Starter GripStarter Grip
-
39512059535 Rope GuideRope Guide
-
40512059536 TubeTube
