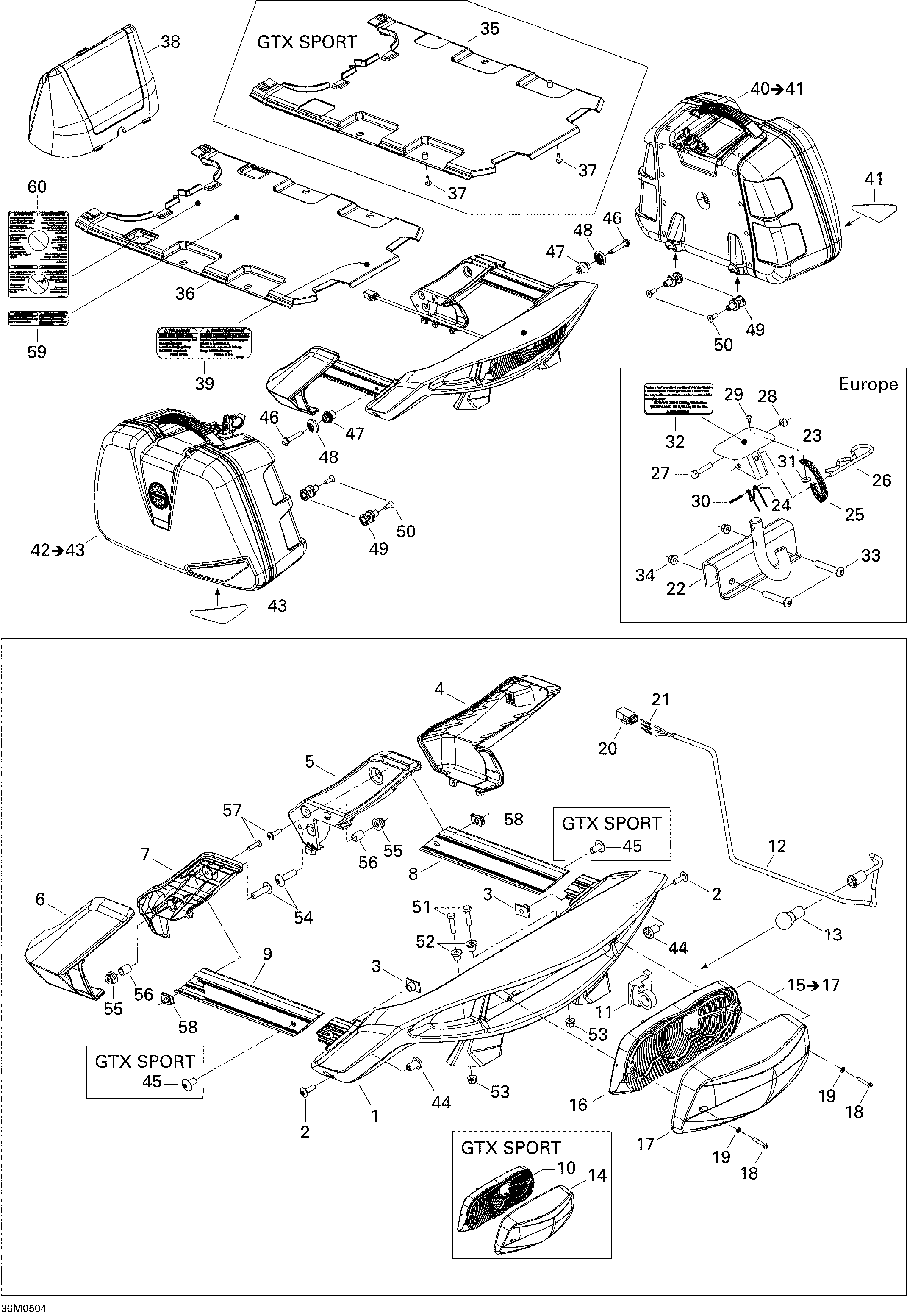

09- Luggage Rack 500SS для BRP Ski-Doo GTX 500SS - 2005
-
№АртикулНазвание
-
1511000317 RackRack
-
2250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
3511000341 Thread InsertThread Insert
-
4511000322 RH Outside ArmRH Outside Arm
-
5511000326 RH Inside ArmRH Inside Arm
-
6511000323 LH Outside ArmLH Outside Arm
-
7511000327 LH Inside ArmLH Inside Arm
-
8511000321 RH Side BarRH Side Bar
-
9511000345 LH Side BarLH Side Bar
-
10510004442 Reflector. GTX SPORTReflector. GTX SPORT
-
11511000431 Bulb SupportBulb Support
-
12511000428 Bulb SocketBulb Socket
-
13410504100 Tail Lamp BulbTail Lamp Bulb
-
14511000315 Lens. GTX SPORTLens. GTX SPORT
-
15861509300 Lens And Reflector Kit. Includes 15 to 17 / GTX LTDLens And Reflector Kit. Includes 15 to 17 / GTX LTD
-
18209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
19414516400 WasherWasher
-
20515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
21515175232 Male TerminalMale Terminal
-
22511000354 Hitch, Black. EuropeHitch, Black. Europe
-
23517152700 Hitch Protector. EuropeHitch Protector. Europe
-
24517152800 Spring. EuropeSpring. Europe
-
25517152900 Chain. EuropeChain. Europe
-
26114045200 Hair Pin. EuropeHair Pin. Europe
-
27207063044 Hex Screw M6 X 30. EuropeHex Screw M6 X 30. Europe
-
28232561414 Elastic Stop Nut M6. EuropeElastic Stop Nut M6. Europe
-
29390409400 Pop Rivet 5/32'', Black. EuropePop Rivet 5/32'', Black. Europe
-
30732804000 Spring Pin M3 X 24. EuropeSpring Pin M3 X 24. Europe
-
31391303100 Flat Washer. EuropeFlat Washer. Europe
-
32516002685 Warning Label, Security, Hitch. EuropeWarning Label, Security, Hitch. Europe
-
33205484546 Socket Head Screw M8 X 45. EuropeSocket Head Screw M8 X 45. Europe
-
34233281414 Elastic Flanged Nut M8. EuropeElastic Flanged Nut M8. Europe
-
35511000319 Radiator Cover. GTX SPORTRadiator Cover. GTX SPORT
-
37250000113 Screw M4 X 16, Type K-40. GTX SPORTScrew M4 X 16, Type K-40. GTX SPORT
-
38511000357 Tank CoverTank Cover
-
39516002666 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
-
44511000398 InsertInsert
-
45250000198 Torx Screw M8 X 16. GTX SPORTTorx Screw M8 X 16. GTX SPORT
-
51207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
52511000340 Flanged BushingFlanged Bushing
-
53233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
54250000197 Torx Screw M8 X 30Torx Screw M8 X 30
-
55233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
56511000325 BushingBushing
-
57250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
58250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
59516002743 Warning Decal, Secure LockWarning Decal, Secure Lock
