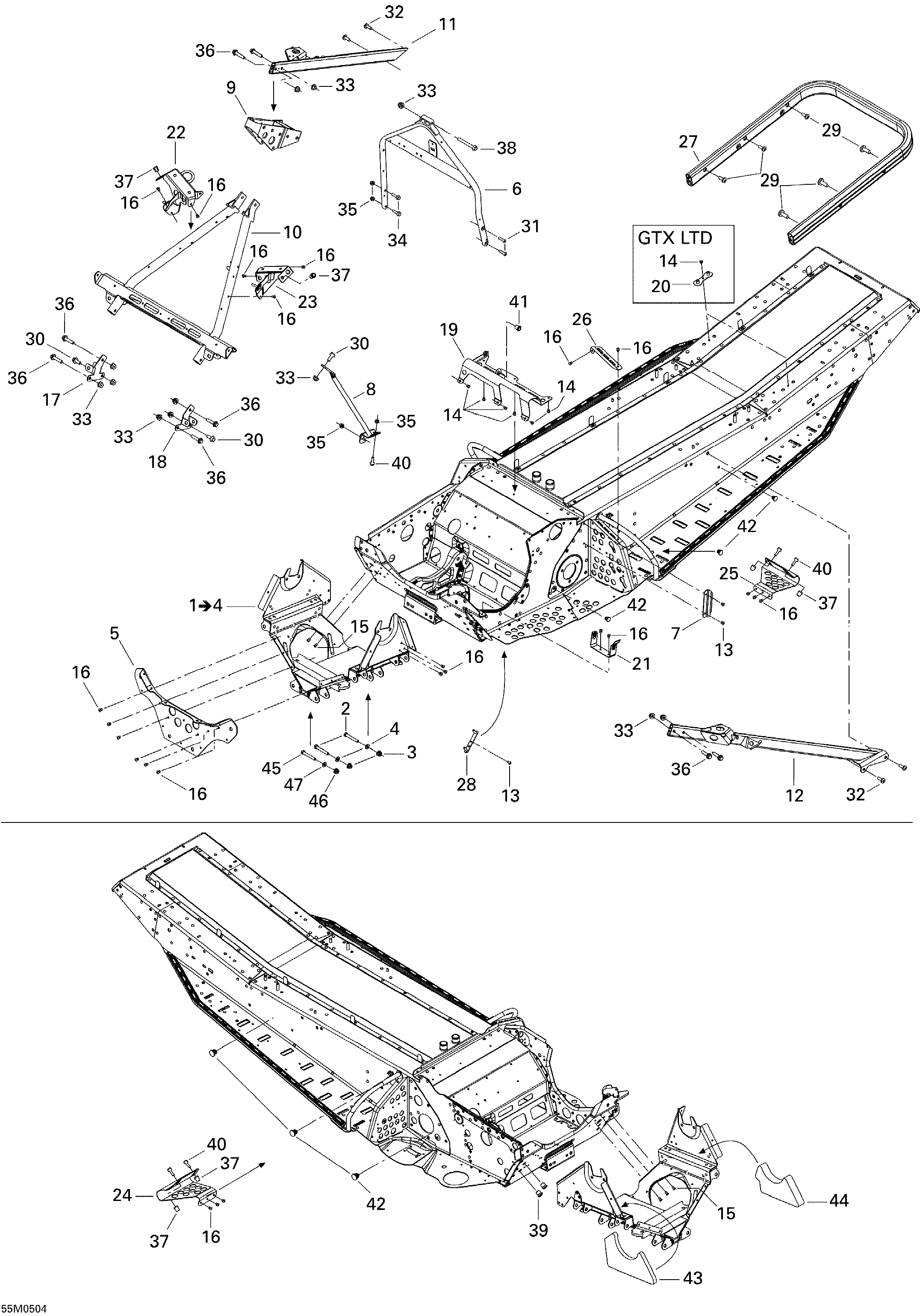

09- Frame and Components 500SS для BRP Ski-Doo GTX 500SS - 2005
-
№АртикулНазвание
-
1518324694 Cross Member. Includes 1 to 4Cross Member. Includes 1 to 4
-
2207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
3233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
4234081410 Flat Washer 8 mmFlat Washer 8 mm
-
5518324726 Front PlateFront Plate
-
6518323979 Handle SupportHandle Support
-
7518317504 Cable ProtectorCable Protector
-
8518323472 Brace, BlackBrace, Black
-
9518323854 Bracket BlockBracket Block
-
10518324739 Upper Cross MemberUpper Cross Member
-
11518324182 RH MemberRH Member
-
12518324183 LH MemberLH Member
-
13390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
14390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
15390909100 Avex RivetAvex Rivet
-
16390909200 Avex RivetAvex Rivet
-
17518322461 RH Shock BracketRH Shock Bracket
-
18518322462 LH Shock BracketLH Shock Bracket
-
19518323532 Intake Air Admission SupportIntake Air Admission Support
-
21518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
22518323535 RH Console SupportRH Console Support
-
23518323536 LH Console SupportLH Console Support
-
24518324391 RH Toe HoldRH Toe Hold
-
25518324392 LH Toe HoldLH Toe Hold
-
26518323105 Plate, BlackPlate, Black
-
27518324401 Rear Bumper. GTX SportRear Bumper. GTX Sport
-
27518324655 Rear Bumper. GTX Sport EuropeRear Bumper. GTX Sport Europe
-
28518323896 Trunk Bracket, BlackTrunk Bracket, Black
-
29207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
30207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
31205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
32250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
33233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
34207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
35233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
36207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
37415107300 InsertInsert
-
38207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
39293450166 InsertInsert
-
40207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
41293450232 InsertInsert
-
42518321954 Fastener PanelFastener Panel
-
43518323453 RH Front FoamRH Front Foam
-
44518323007 LH Front FoamLH Front Foam
-
45207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
46233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
47234081410 Flat Washer 8 mmFlat Washer 8 mm
