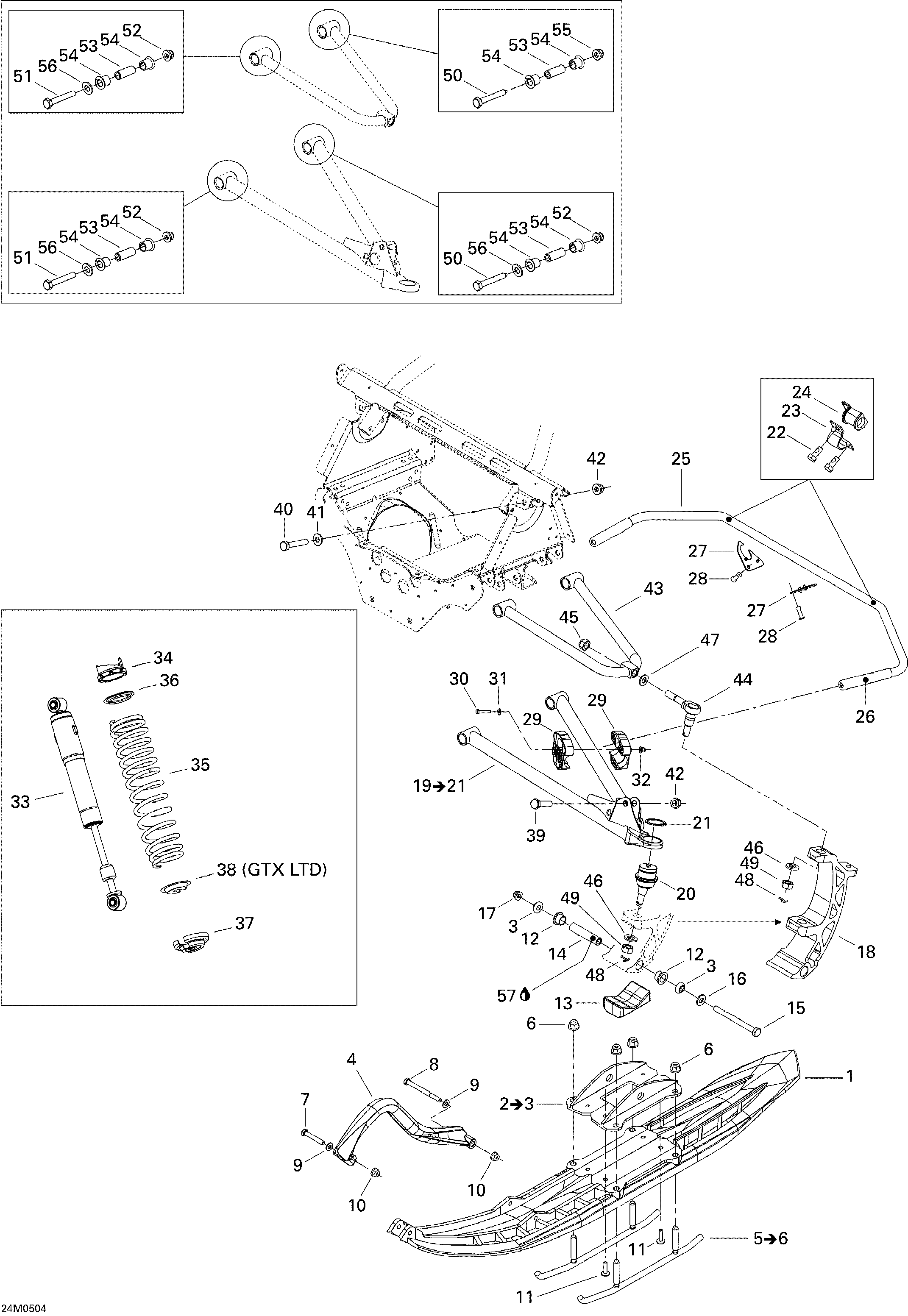

07- Front Suspension And Ski 500SS для BRP Ski-Doo GTX 500SS - 2005
-
№АртикулНазвание
-
1505070727 Precision Ski, Black B-160Precision Ski, Black B-160
-
2505070764 Bridge Ass'Y. Includes 2 to 3Bridge Ass'Y. Includes 2 to 3
-
3505070001 BushingBushing
-
4505070963 Handle, BlackHandle, Black
-
5860504900 Carbide Runner Kit. Includes 5 to 6Carbide Runner Kit. Includes 5 to 6
-
6233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
7207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
8207089044 Hex Screw M8 X 90Hex Screw M8 X 90
-
9234081410 Flat Washer 8 mmFlat Washer 8 mm
-
10233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
11293150090 Pop Rivet 1/4''Pop Rivet 1/4''
-
12505070954 CushionCushion
-
13505070671 Ski StopperSki Stopper
-
14506133300 SpacerSpacer
-
15250000001 Hex Screw M10 X 110Hex Screw M10 X 110
-
16732900049 WasherWasher
-
17732610084 Hex Flanged Nut M10Hex Flanged Nut M10
-
18505071232 Ski LegSki Leg
-
19860510100 RH Lower Arm Ass'y. Includes 19 to 21RH Lower Arm Ass'y. Includes 19 to 21
-
19860510000 LH Lower Arm Ass'y. Includes 19 to 21LH Lower Arm Ass'y. Includes 19 to 21
-
20505071658 Ball JointBall Joint
-
21293370035 CirclipCirclip
-
22250000118 Hex Screw With NylonHex Screw With Nylon
-
23506095800 ClampClamp
-
24505070665 LH Bushing (5/8'')LH Bushing (5/8'')
-
24505070881 RH Bushing (5/8'')RH Bushing (5/8'')
-
25505070659 Stabilisator (5/8'')Stabilisator (5/8'')
-
26505070750 Stabilisator Boot (5/8'')Stabilisator Boot (5/8'')
-
27505071253 PlugPlug
-
28293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
29505071268 RH Slider HalfRH Slider Half
-
29505071269 LH Slider HalfLH Slider Half
-
30207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
31391301700 WasherWasher
-
32233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
33505071202 Front Shock. GTX SportFront Shock. GTX Sport
-
34503183700 Cam 45°. GTX SportCam 45°. GTX Sport
-
35505071264 SpringSpring
-
36503187500 Spring Guide. GTX SportSpring Guide. GTX Sport
-
37503140600 Spring StopperSpring Stopper
-
39207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
40207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
41503189564 WasherWasher
-
42233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
43505071727 Upper ArmUpper Arm
-
44505071679 Upper Ball JointUpper Ball Joint
-
45250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
46234021410 Flat Washer 12 mmFlat Washer 12 mm
-
47503189276 WasherWasher
-
48211400017 Cotter PinCotter Pin
-
49232221414 Hex Castellated Nut M12Hex Castellated Nut M12
-
50250000216 Cone Screw M10 X 75Cone Screw M10 X 75
-
51250000218 Hex Screw M10 X 75Hex Screw M10 X 75
-
52250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
53505070567 BushingBushing
-
54505070566 Arm BushingArm Bushing
-
55232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
56503189564 WasherWasher
-
57219700417 Synthetic Grease, 400gSynthetic Grease, 400g
