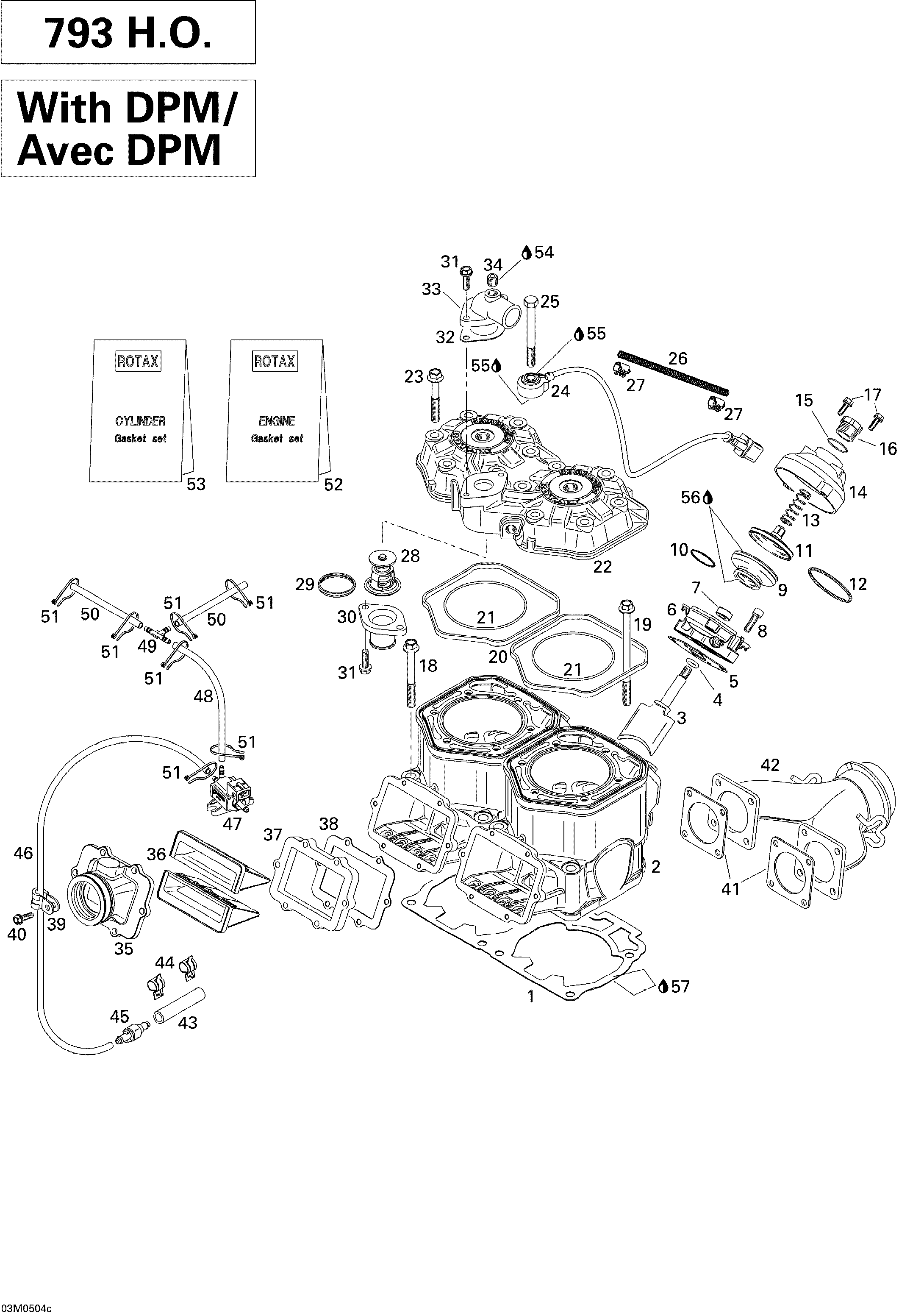

01- Cylinder, Exhaust Manifold And Reed Valve 793HO With PDM для BRP Ski-Doo GTX 800 HO - 2005
-
№АртикулНазвание
-
1420931838 Gasket 0.5Gasket 0.5
-
1420931837 Gasket 0.6Gasket 0.6
-
1420931964 Gasket 0.7Gasket 0.7
-
1420931839 Gasket 0.8Gasket 0.8
-
2420613852 Nicasil CylinderNicasil Cylinder
-
3420854465 Exhaust ValveExhaust Valve
-
4420430110 O-RingO-Ring
-
5420931542 GasketGasket
-
6420854454 Valve HousingValve Housing
-
7420950730 Oil SealOil Seal
-
8205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
9420260729 BellowsBellows
-
10420838255 Hose SpringHose Spring
-
11420854449 Exhaust ValveExhaust Valve
-
12420939280 Hose SpringHose Spring
-
13420239941 SpringSpring
-
14420911558 Valve CoverValve Cover
-
15420430220 O-RingO-Ring
-
16420241221 Adjuster ScrewAdjuster Screw
-
17420241270 Taptite Screw M5 X 25Taptite Screw M5 X 25
-
18420640524 Hex Collar ScrewHex Collar Screw
-
19420640534 Hex Collar ScrewHex Collar Screw
-
20420931590 Rubber RingRubber Ring
-
21420931410 O-RingO-Ring
-
22420923827 Cylinder Head CoverCylinder Head Cover
-
23420941621 Hex Collar Screw M8 X 56.5Hex Collar Screw M8 X 56.5
-
24270000484 Knock SensorKnock Sensor
-
25420941221 Hex Screw M8 X 80Hex Screw M8 X 80
-
26420460010 TubeTube
-
27420960890 ClipClip
-
28420922518 ThermostateThermostate
-
29420931272 Sealing RingSealing Ring
-
30420922025 Bent Outlet SocketBent Outlet Socket
-
31420941250 Hex Tapping Screw M6 X 20Hex Tapping Screw M6 X 20
-
32420850338 GasketGasket
-
33420922062 Bent Outlet SocketBent Outlet Socket
-
34420240480 Plug Screw 1/8''-27 NptPlug Screw 1/8''-27 Npt
-
35420667105 Intake SocketIntake Socket
-
36420924790 Reed Valve Ass'yReed Valve Ass'y
-
37420924820 Distance FlangeDistance Flange
-
38420630815 GasketGasket
-
39414176000 Clip, CableClip, Cable
-
40420641840 Taptite Screw M5 X 35Taptite Screw M5 X 35
-
41420931850 GasketGasket
-
42420973713 Exhaust ManifoldExhaust Manifold
-
43420660561 High Pressure Air Hose 50 mmHigh Pressure Air Hose 50 mm
-
44420853510 ClampClamp
-
45275500479 Check ValveCheck Valve
-
46420660574 Pressure Hose 280 mmPressure Hose 280 mm
-
47420664630 Solenoid ValveSolenoid Valve
-
48420660571 High Pressure Air Hose 180 mmHigh Pressure Air Hose 180 mm
-
49293710068 T-FittingT-Fitting
-
50420660573 Pressure Hose 120 mmPressure Hose 120 mm
-
51420866718 Tie RapTie Rap
-
52420888741 Gasket Engine KitGasket Engine Kit
-
53420888745 Cylinder GasketCylinder Gasket
-
54293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
55293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
56420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
57293800038 Loctite 518, 50 mlLoctite 518, 50 ml
