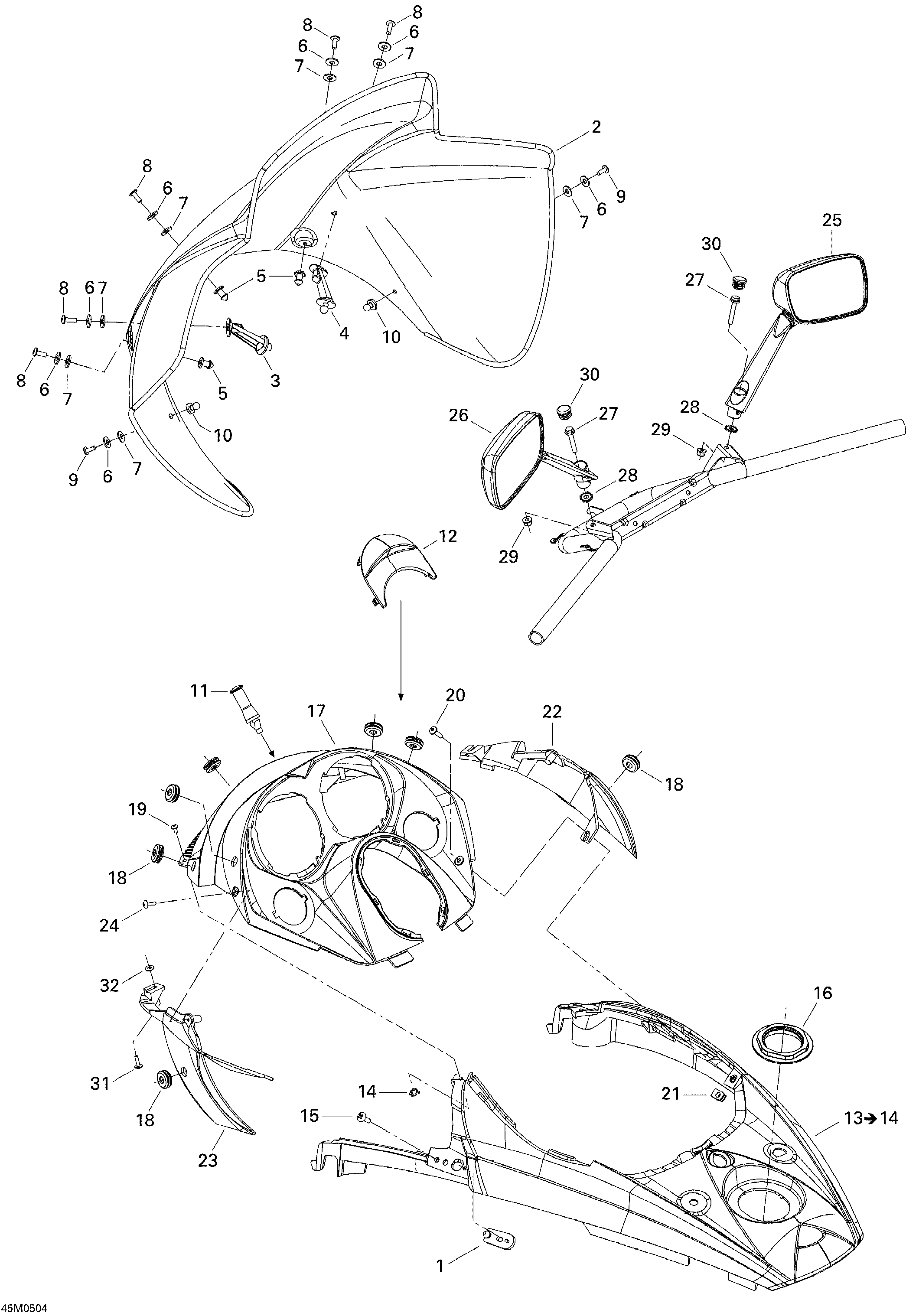

09- Windshield And Console 800HO для BRP Ski-Doo GTX 800 HO - 2005
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2517303247 High WindshieldHigh Windshield
-
3517303214 LH Windshield SupportLH Windshield Support
-
4517303215 RH Windshield SupportRH Windshield Support
-
5517303439 KnobKnob
-
6250200025 Washer 5 mmWasher 5 mm
-
7250200024 Rubber Washer M5Rubber Washer M5
-
8250000146 Torx Screw K50 X 16Torx Screw K50 X 16
-
9250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
10517245800 KnobKnob
-
11517303197 Windshield SupportWindshield Support
-
12517302592 Console CapConsole Cap
-
13517303099 Center Console, Black, B-160. Includes 13 to 14 / GTX LTDCenter Console, Black, B-160. Includes 13 to 14 / GTX LTD
-
13517303293 Center Console, Seashore, B-207. Includes 13 to 14 / GTX LTDCenter Console, Seashore, B-207. Includes 13 to 14 / GTX LTD
-
14250100030 T Flanged Nut, M4T Flanged Nut, M4
-
15250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
16517302575 Console NutConsole Nut
-
17517303384 Indicator Support. GTX LTDIndicator Support. GTX LTD
-
18517302841 GrommetGrommet
-
19250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
20250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
21250000079 Nut M5Nut M5
-
22517303413 RH Air DeflectorRH Air Deflector
-
23517303414 LH Air DeflectorLH Air Deflector
-
24250000084 Phillips Screw K40 X 16. GTX LTDPhillips Screw K40 X 16. GTX LTD
-
25517302449 RH MirrorRH Mirror
-
26517302450 LH MirrorLH Mirror
-
27207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
28250200041 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
29233261494 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
30517302716 Mirror CapMirror Cap
-
31250000113 Screw M4 X 16Screw M4 X 16
-
32234042600 Flat Washer 4 mmFlat Washer 4 mm
