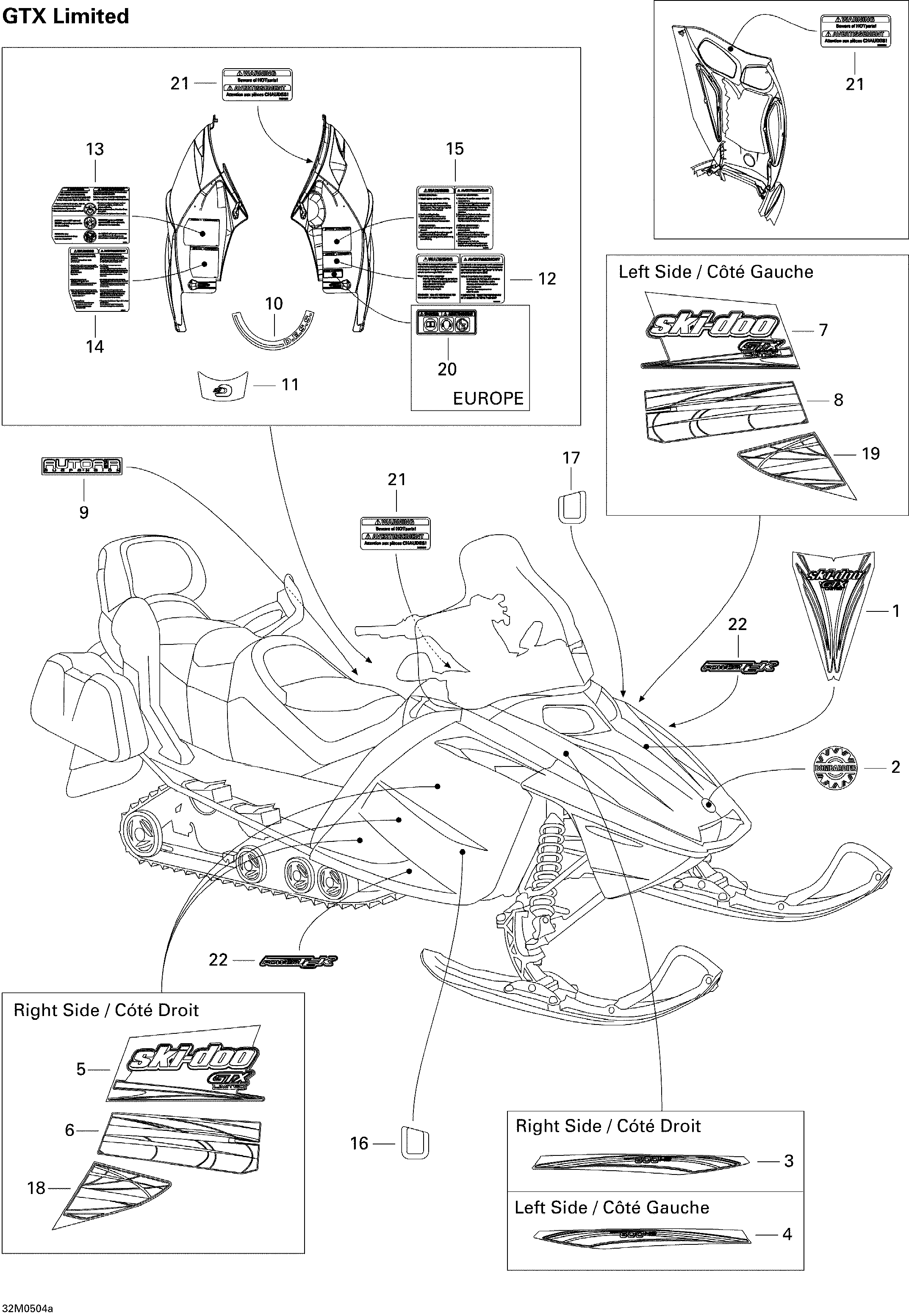

09- Decals LTD для BRP Ski-Doo GTX 800 HO - 2005
-
№АртикулНазвание
-
1516002358 Hood Decal. Black B-160Hood Decal. Black B-160
-
1516002359 Hood Decal. Seashore B-231Hood Decal. Seashore B-231
-
2516000983 Logo «bombardier»Logo «bombardier»
-
3516002341 RH Hood Decal 800 Ho. 800HO, Black B-160RH Hood Decal 800 Ho. 800HO, Black B-160
-
3516002366 RH Hood Decal 800 Ho. 800HO, Seashore B-231RH Hood Decal 800 Ho. 800HO, Seashore B-231
-
4516002342 LH Hood Decal 800 Ho. 800HO, Black B-160LH Hood Decal 800 Ho. 800HO, Black B-160
-
4516002367 LH Hood Decal 800 Ho. 800HO, Seashore B-231LH Hood Decal 800 Ho. 800HO, Seashore B-231
-
5516002368 RH Lateral Decal. Black B-160RH Lateral Decal. Black B-160
-
5516002370 RH Lateral Decal. Seashore B-231RH Lateral Decal. Seashore B-231
-
6516002338 RH Lower Lateral Decal. Black B-160RH Lower Lateral Decal. Black B-160
-
6516002374 RH Lower Lateral Decal. Seashore B-231RH Lower Lateral Decal. Seashore B-231
-
7516002369 LH Lateral Decal. Black B-160LH Lateral Decal. Black B-160
-
7516002371 LH Lateral Decal. Seashore B-231LH Lateral Decal. Seashore B-231
-
8516002339 LH Lower Lateral Decal. Black B-160LH Lower Lateral Decal. Black B-160
-
8516002375 LH Lower Lateral Decal. Seashore B-231LH Lower Lateral Decal. Seashore B-231
-
9516002750 Suspension DecalSuspension Decal
-
10516001335 Dess DecalDess Decal
-
11516001775 Visor DecalVisor Decal
-
12516002672 Label Security, Passenger NumberLabel Security, Passenger Number
-
13516002641 Label Security, GeneralLabel Security, General
-
14516002671 Label Security, FamiliarizationLabel Security, Familiarization
-
15516002642 Label Security, StartingLabel Security, Starting
-
16516001910 RH Protector DecalRH Protector Decal
-
17516001911 LH Protector DecalLH Protector Decal
-
18516002193 RH Rear Lower Decal. Black B-160RH Rear Lower Decal. Black B-160
-
18516002378 RH Rear Lower Decal. Seashore B-231RH Rear Lower Decal. Seashore B-231
-
19516002194 LH Rear Lower Decal. Black B-160LH Rear Lower Decal. Black B-160
-
19516002379 LH Rear Lower Decal. Seashore B-231LH Rear Lower Decal. Seashore B-231
-
20516002703 Decal, Europe. EuropeDecal, Europe. Europe
-
21516002664 Security LabelSecurity Label
-
22516002749 Powertek Decal. 800HO With DPMPowertek Decal. 800HO With DPM
