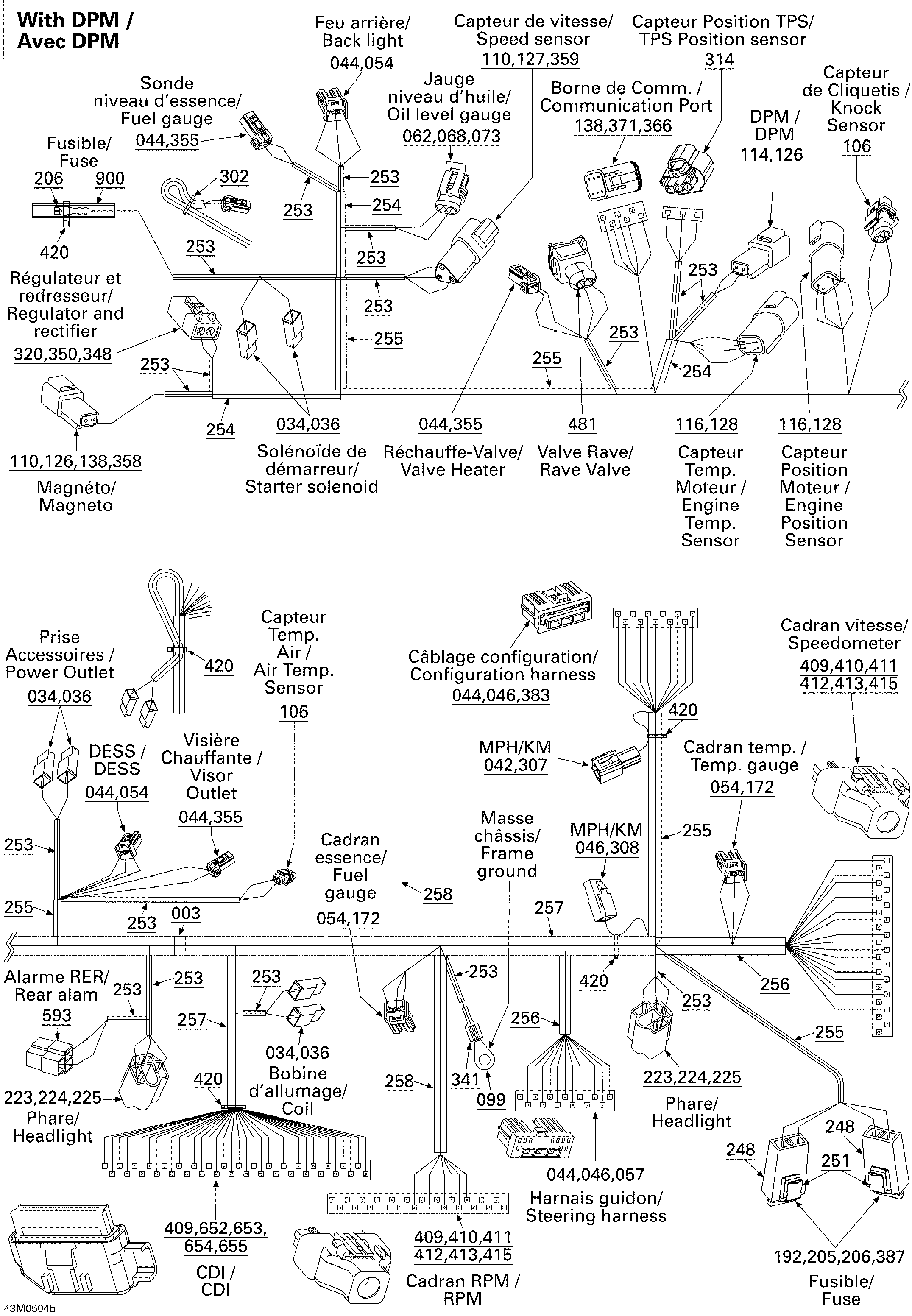

10- Electrical Harness With DPM для BRP Ski-Doo GTX 800 HO - 2005
-
№АртикулНазвание
-
001515176166 Frame Harness Ass'y. Includes 001 to 900Frame Harness Ass'y. Includes 001 to 900
-
032278000998 Female TerminalFemale Terminal
-
033278000999 SealSeal
-
034409010100 Female TerminalFemale Terminal
-
036409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
042515175273 Male TerminalMale Terminal
-
044515175231 Female TerminalFemale Terminal
-
046515175282 Female TerminalFemale Terminal
-
054515175495 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
057515175350 Female Terminal Housing, 13 CircuitsFemale Terminal Housing, 13 Circuits
-
062278001014 Female TerminalFemale Terminal
-
068409209600 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
073278001013 SealSeal
-
099278000992 Ring TerminalRing Terminal
-
106278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
114409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
116278000635 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
126409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
127409207600 Male Lock, 3 CircuitsMale Lock, 3 Circuits
-
128409207600 Male Lock, 3 CircuitsMale Lock, 3 Circuits
-
132409207100 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
138293000052 Sealing CapSealing Cap
-
172561503100 Female TerminalFemale Terminal
-
192409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
205409011600 Female TerminalFemale Terminal
-
206409004200 Female TerminalFemale Terminal
-
223515175320 Female TerminalFemale Terminal
-
224515175321 Female TerminalFemale Terminal
-
225409202700 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
248409004000 Fuse HolderFuse Holder
-
251409014200 ClipClip
-
253515175442 Tubing, 6 mmTubing, 6 mm
-
254409901700 Tubing, 9 mmTubing, 9 mm
-
255409901800 Tubing, 13 mmTubing, 13 mm
-
256415080000 Tubing, 16 mmTubing, 16 mm
-
257409901600 Tubing, 19 mmTubing, 19 mm
-
258415079900 Tubing, 10 mmTubing, 10 mm
-
286409012300 SealSeal
-
302293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
307515175509 Male Terminal Housing, 1 CircuitMale Terminal Housing, 1 Circuit
-
308515175510 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
320515175567 Female TerminalFemale Terminal
-
348278001673 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
350278001671 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
355515175658 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
358515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
359515175666 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
363515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
366515175673 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
368515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
371515175678 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
372515175679 Female Lock, 12 CircuitsFemale Lock, 12 Circuits
-
382515175704 Female Terminal Housing, 12 CircuitsFemale Terminal Housing, 12 Circuits
-
383515175719 Female Terminal Housing, 11 CircuitsFemale Terminal Housing, 11 Circuits
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
409515175812 PlugPlug
-
410515175801 Female Terminal Housing, 24 CircuitsFemale Terminal Housing, 24 Circuits
-
411515175802 RetainerRetainer
-
412515175803 Wire SealWire Seal
-
413515175804 BlockBlock
-
415515175806 Female TerminalFemale Terminal
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
443710000335 Female TerminalFemale Terminal
-
481415128500 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
593515176069 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
900415079200 HoseHose
