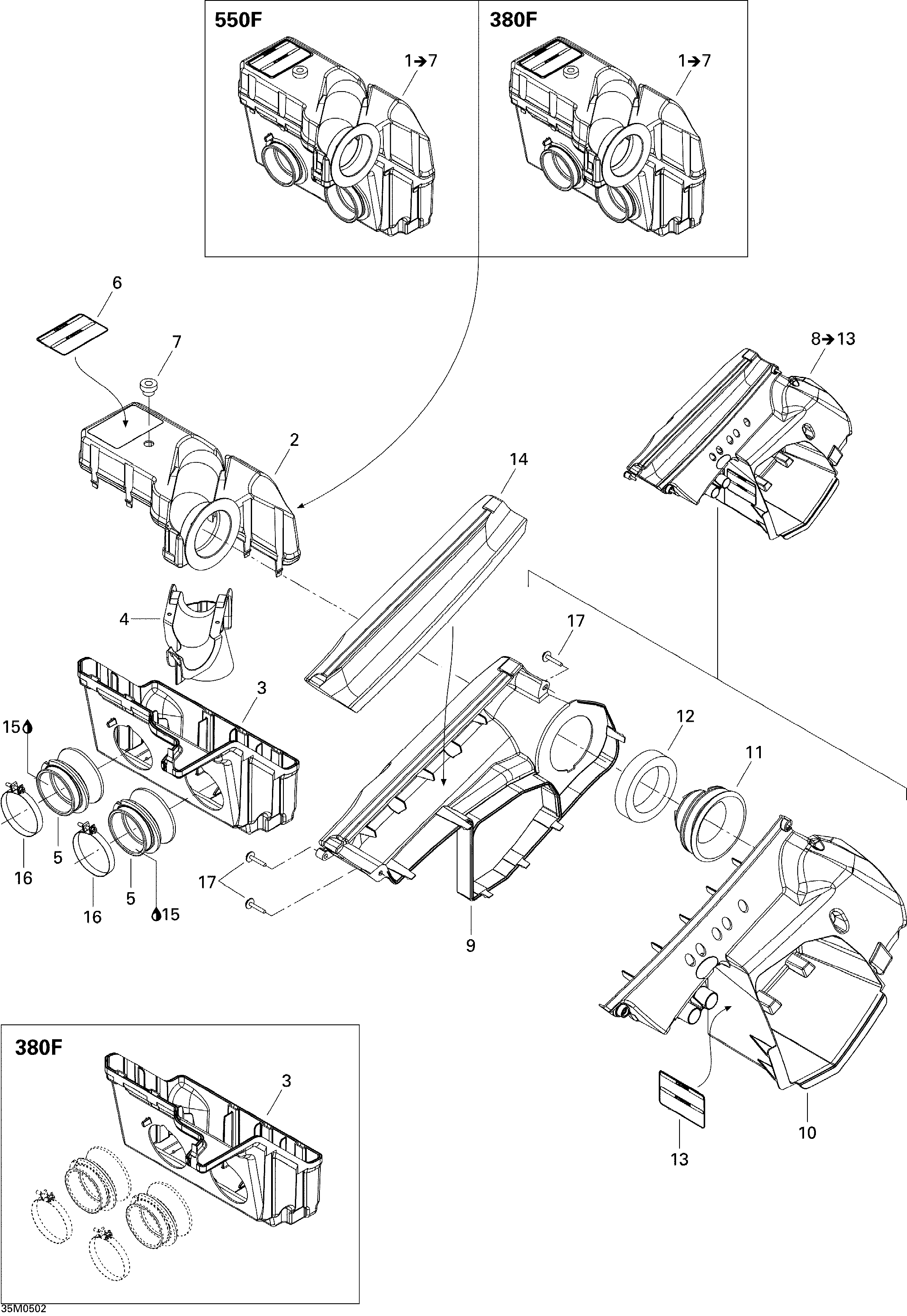

02- Air Intake System MX Z 380F для BRP Ski-Doo MX Z 380F - 2005
-
№АртикулНазвание
-
1508000434 Primary Chamber Ass'y. 380F, Includes 1 to 7Primary Chamber Ass'y. 380F, Includes 1 to 7
-
3508000445 Lower Shell. 380FLower Shell. 380F
-
6516002715 Label (air Intake Installation)Label (air Intake Installation)
-
7513032908 GrommetGrommet
-
8508000376 Secondary Chamber Ass'y. Includes 8 to 13Secondary Chamber Ass'y. Includes 8 to 13
-
11508000240 GuideGuide
-
12508000199 Outer FoamOuter Foam
-
13516002715 Label (air Intake Installation)Label (air Intake Installation)
-
14508000394 Air FilterAir Filter
-
15413803200 Injection Oil (205 Liters)Injection Oil (205 Liters)
-
16508000344 Gemi ClampGemi Clamp
-
17250000101 Screw M4 X 25Screw M4 X 25
