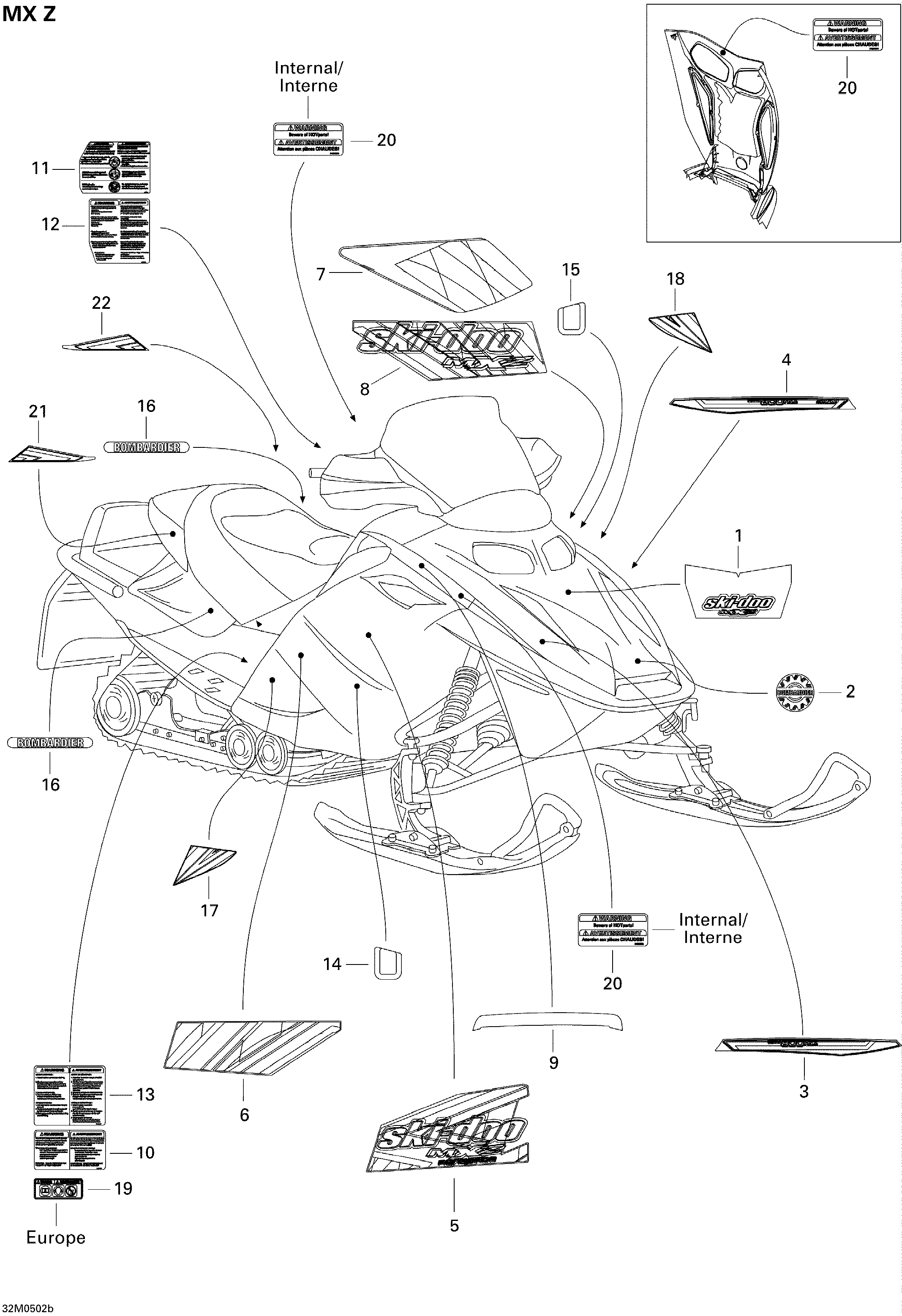

09- Decals MX Z 380F для BRP Ski-Doo MX Z 380F - 2005
-
№АртикулНазвание
-
1516002236 Hood Decal. Black B-160Hood Decal. Black B-160
-
1516002237 Hood Decal. Yellow B-190Hood Decal. Yellow B-190
-
2516000983 Logo «bombardier»Logo «bombardier»
-
3516002228 RH Hood Decal 380f. 380F, Black B-160RH Hood Decal 380f. 380F, Black B-160
-
3516002281 RH Hood Decal 380f. 380F, Yellow B-190RH Hood Decal 380f. 380F, Yellow B-190
-
4516002229 LH Hood Decal 380f. 380F, Black B-160LH Hood Decal 380f. 380F, Black B-160
-
4516002282 LH Hood Decal 380f. 380F, Yellow B-190LH Hood Decal 380f. 380F, Yellow B-190
-
5516002240 RH Side Decal. Black B-160RH Side Decal. Black B-160
-
5516002277 RH Side Decal. Yellow B-190RH Side Decal. Yellow B-190
-
6516002244 RH Lower Side Decal. Yellow B-190RH Lower Side Decal. Yellow B-190
-
6516002699 RH Lower Side Decal. Black B-160RH Lower Side Decal. Black B-160
-
7516002628 LH Side Decal. Black B-160LH Side Decal. Black B-160
-
7516002629 LH Side Decal. Yellow B-190LH Side Decal. Yellow B-190
-
8516002383 LH Lower Side Decal. Black B-160LH Lower Side Decal. Black B-160
-
8516002385 LH Lower Side Decal. Yellow B-190LH Lower Side Decal. Yellow B-190
-
9516002745 Grillage Decal. Yellow B-190Grillage Decal. Yellow B-190
-
10516002672 Label Security, Passenger NumberLabel Security, Passenger Number
-
11516002641 Label Security, GeneralLabel Security, General
-
12516002671 Label Security, FamiliarizationLabel Security, Familiarization
-
13516002642 Label Security, StartingLabel Security, Starting
-
14516001910 RH Protector DecalRH Protector Decal
-
15516001911 LH Protector DecalLH Protector Decal
-
16516001980 Bombardier Decal. Black B-160Bombardier Decal. Black B-160
-
16516001981 Bombardier Decal. Yellow B-190Bombardier Decal. Yellow B-190
-
17516002248 RH Lower Side Decal. Yellow B-190RH Lower Side Decal. Yellow B-190
-
17516002701 RH Lower Side Decal. Black B-160RH Lower Side Decal. Black B-160
-
18516002249 LH Lower Side Decal. Yellow B-190LH Lower Side Decal. Yellow B-190
-
18516002702 LH Lower Side Decal. Black B-160LH Lower Side Decal. Black B-160
-
19516002703 Decal, Europe. EuropeDecal, Europe. Europe
-
20516002664 Security LabelSecurity Label
-
21516002252 RH Cover Decal. Yellow B-190RH Cover Decal. Yellow B-190
-
21516002704 RH Cover Decal. Black B-160RH Cover Decal. Black B-160
-
22516002253 LH Cover Decal. Yellow B-190LH Cover Decal. Yellow B-190
-
22516002705 LH Cover Decal. Black B-160LH Cover Decal. Black B-160
