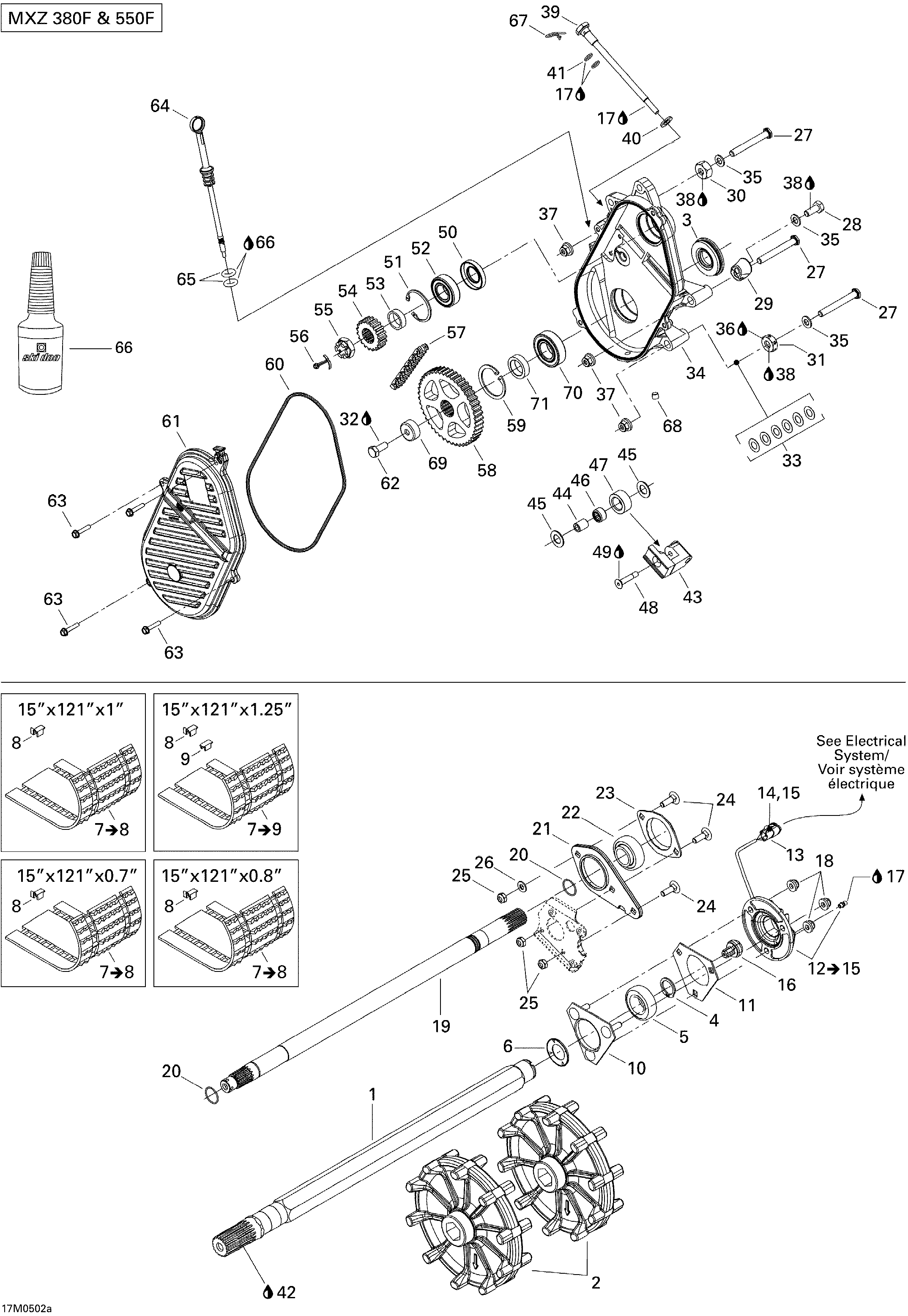

05- Drive System MX Z 380F для BRP Ski-Doo MX Z 380F - 2005
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504152198 Sprocket, 10 TeethSprocket, 10 Teeth
-
3504151918 Oil Seal Ass'YOil Seal Ass'Y
-
4371910200 CirclipCirclip
-
5504152009 Ball BearingBall Bearing
-
6501017400 Bearing ProtectorBearing Protector
-
7504152484 Track Ass'y 15''x121''x1'' (121''x1''). 380F, Includes 7 to 8Track Ass'y 15''x121''x1'' (121''x1''). 380F, Includes 7 to 8
-
7504152487 Track Ass'y 15'' X 121'' X 0.72. 380F, Includes 7 to 8Track Ass'y 15'' X 121'' X 0.72. 380F, Includes 7 to 8
-
8504152410 GuideGuide
-
9500003300 CleatCleat
-
10504151860 Bearing HousingBearing Housing
-
11501025000 FlangeFlange
-
12504152345 Sensor. Includes 12 to 15Sensor. Includes 12 to 15
-
13515175671 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
14278000632 Female TerminalFemale Terminal
-
15515175676 Female Lock, 3 CircuitsFemale Lock, 3 Circuits
-
16504152040 Magnetic AdaptorMagnetic Adaptor
-
17219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
18233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
19504152292 Counter ShaftCounter Shaft
-
20371910000 CirclipCirclip
-
21504151968 SpacerSpacer
-
22504152026 Ball BearingBall Bearing
-
23501026900 FlangeFlange
-
24207782544 Carriage Bolt M8 X 25Carriage Bolt M8 X 25
-
25232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
26234081410 Flat Washer 8 mmFlat Washer 8 mm
-
27250000151 Hex Screw M10 X 80Hex Screw M10 X 80
-
28207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
29504152252 SpacerSpacer
-
30504083800 SpacerSpacer
-
31504152237 SpacerSpacer
-
32293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
33504073700 WasherWasher
-
34504152312 ChaincaseChaincase
-
35503175800 WasherWasher
-
36293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
37233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
38293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
39732601314 Adjusting ScrewAdjusting Screw
-
40234001410 Flat Washer 10 mmFlat Washer 10 mm
-
41414484400 O-RingO-Ring
-
42219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
43504151951 Chain TensionerChain Tensioner
-
44504080200 SpacerSpacer
-
45504080300 WasherWasher
-
46405403000 Needle BearingNeedle Bearing
-
47414531300 RollerRoller
-
48732601144 ScrewScrew
-
49293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
50504151927 SealSeal
-
51371901700 Circlip, InteriorCirclip, Interior
-
52504152006 Ball BearingBall Bearing
-
53504147200 ShimShim
-
54504152031 Sprocket, 19 TeethSprocket, 19 Teeth
-
55250000012 Hex Castle Nut 20 X 1.5Hex Castle Nut 20 X 1.5
-
56371006300 Pin CotterPin Cotter
-
57504151857 Drive Chain, 74 Links. 380FDrive Chain, 74 Links. 380F
-
58504152238 Sprocket, 45 Teeth. 380FSprocket, 45 Teeth. 380F
-
59415064300 Circlip, InteriorCirclip, Interior
-
60415046400 O-RingO-Ring
-
61504152471 Chaincase CoverChaincase Cover
-
62207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
63210263080 Hex Forming Screw M6 X 30Hex Forming Screw M6 X 30
-
64504151703 Filler Cap Ass'YFiller Cap Ass'Y
-
65414969400 O-RingO-Ring
-
66413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
67414575600 Hair PinHair Pin
-
68504151921 Plug 1/8''-27Plug 1/8''-27
-
69504152460 CapCap
-
70504152005 Ball BearingBall Bearing
-
71504152058 ShimShim
