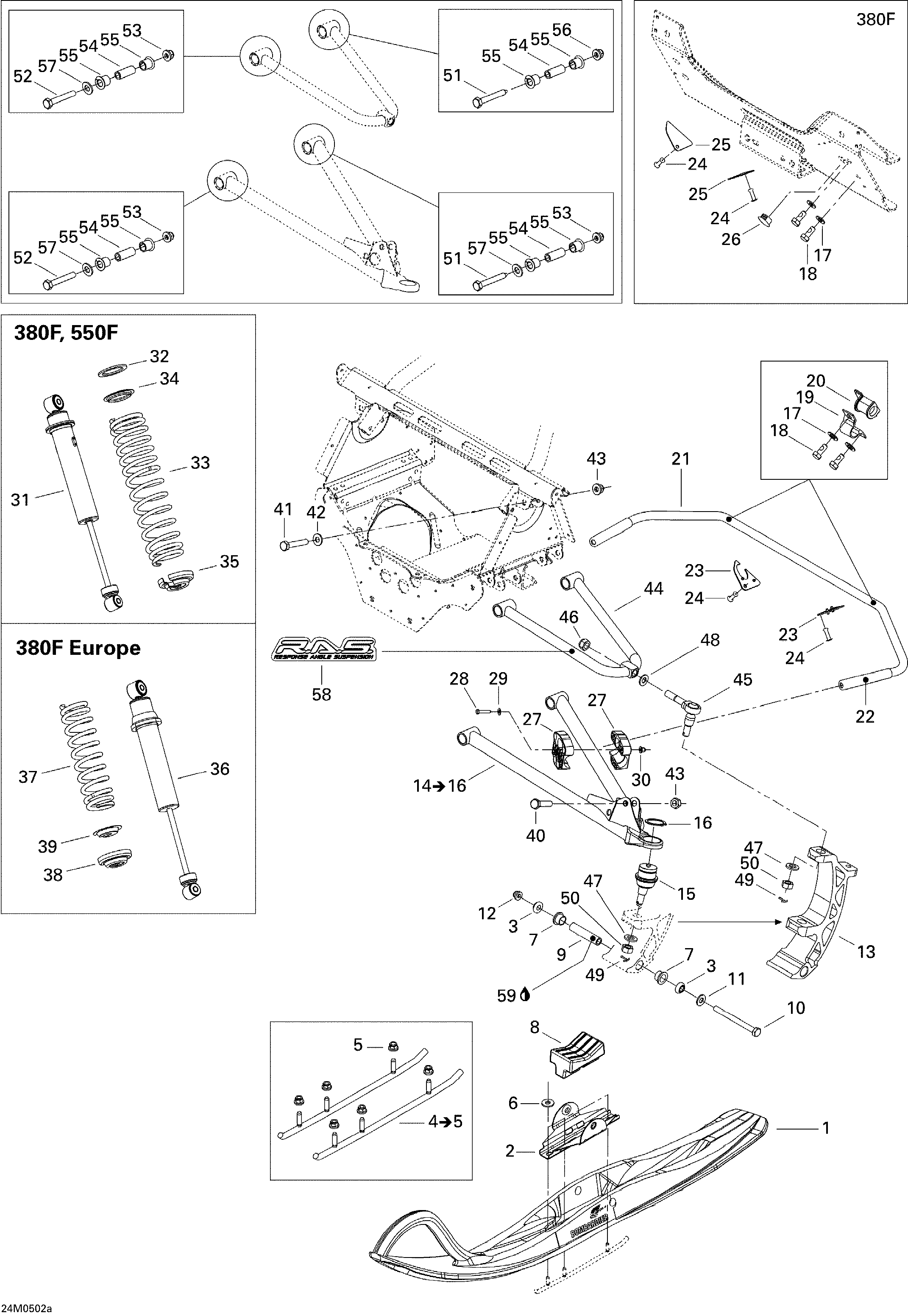

07- Front Suspension And Ski MX Z 380F для BRP Ski-Doo MX Z 380F - 2005
-
№АртикулНазвание
-
1505070975 Ski LinerSki Liner
-
2505070980 Bridge Ass'YBridge Ass'Y
-
4860507900 Carbide Runner. Includes 4 to 5Carbide Runner. Includes 4 to 5
-
5233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
6234082410 Flat Washer M8Flat Washer M8
-
7505070954 CushionCushion
-
8505071304 Ski StopperSki Stopper
-
9506133300 SpacerSpacer
-
10230003044 Hex Screw M10 X 130Hex Screw M10 X 130
-
11234001410 Flat Washer 10 mmFlat Washer 10 mm
-
12233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
13505071232 Ski LegSki Leg
-
14860510100 RH Lower Arm Ass'y. Includes 14 to 16RH Lower Arm Ass'y. Includes 14 to 16
-
14860510000 LH Lower Arm Ass'y. Includes 14 to 16LH Lower Arm Ass'y. Includes 14 to 16
-
15505071658 Ball JointBall Joint
-
16293370035 CirclipCirclip
-
17234081410 Flat Washer 8 mm. 380FFlat Washer 8 mm. 380F
-
18250000118 Hex Screw With Nylon. 380FHex Screw With Nylon. 380F
-
18250000118 Hex Screw With Nylon. 380F EuropeHex Screw With Nylon. 380F Europe
-
19506095800 Clamp. 380F EuropeClamp. 380F Europe
-
20505070664 LH Torsion Bar Bushing. 380F EuropeLH Torsion Bar Bushing. 380F Europe
-
20505070912 RH Torsion Bar Bushing. 380F EuropeRH Torsion Bar Bushing. 380F Europe
-
21505070948 Stabilisator. 380F EuropeStabilisator. 380F Europe
-
22505071039 Sway Bar End. 380F EuropeSway Bar End. 380F Europe
-
23505071253 Plug. 380F EuropePlug. 380F Europe
-
24293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
25505071131 Aluminium Plug. 380FAluminium Plug. 380F
-
26572072100 Cap. 380FCap. 380F
-
27505071268 RH Slider Half. 380F EuropeRH Slider Half. 380F Europe
-
27505071269 LH Slider Half. 380F EuropeLH Slider Half. 380F Europe
-
28207152544 Hex Screw M5 X 25. 380F EuropeHex Screw M5 X 25. 380F Europe
-
29391301700 Flat Washer. 380F EuropeFlat Washer. 380F Europe
-
30233251414 Elastic Flanged Nut M5. 380F EuropeElastic Flanged Nut M5. 380F Europe
-
31505071640 Front Shock. 380FFront Shock. 380F
-
32505070401 WasherWasher
-
33505071257 SpringSpring
-
34503187500 Spring GuideSpring Guide
-
35503140600 Spring StopperSpring Stopper
-
36505071557 Front Shock. 380F EuropeFront Shock. 380F Europe
-
37505071196 Spring. 380F EuropeSpring. 380F Europe
-
38503140600 Spring Stopper. 380F EuropeSpring Stopper. 380F Europe
-
39503141600 Cap. 380F EuropeCap. 380F Europe
-
40207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
41207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
42503189564 WasherWasher
-
43233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
44505071727 Upper ArmUpper Arm
-
45505071679 Upper Ball JointUpper Ball Joint
-
46250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
47234021410 Flat Washer 12 mmFlat Washer 12 mm
-
48503189276 WasherWasher
-
49211400017 Cotter PinCotter Pin
-
50232221414 Hex Castellated Nut M12Hex Castellated Nut M12
-
51250000216 Cone Screw M10 X 75Cone Screw M10 X 75
-
52250000218 Hex Screw M10 X 75Hex Screw M10 X 75
-
53250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
54505070567 BushingBushing
-
55505070566 Arm BushingArm Bushing
-
56232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
57503189564 WasherWasher
-
58516002747 R.a.s. Suspension DecalR.a.s. Suspension Decal
-
59219700417 Synthetic Grease, 400gSynthetic Grease, 400g
