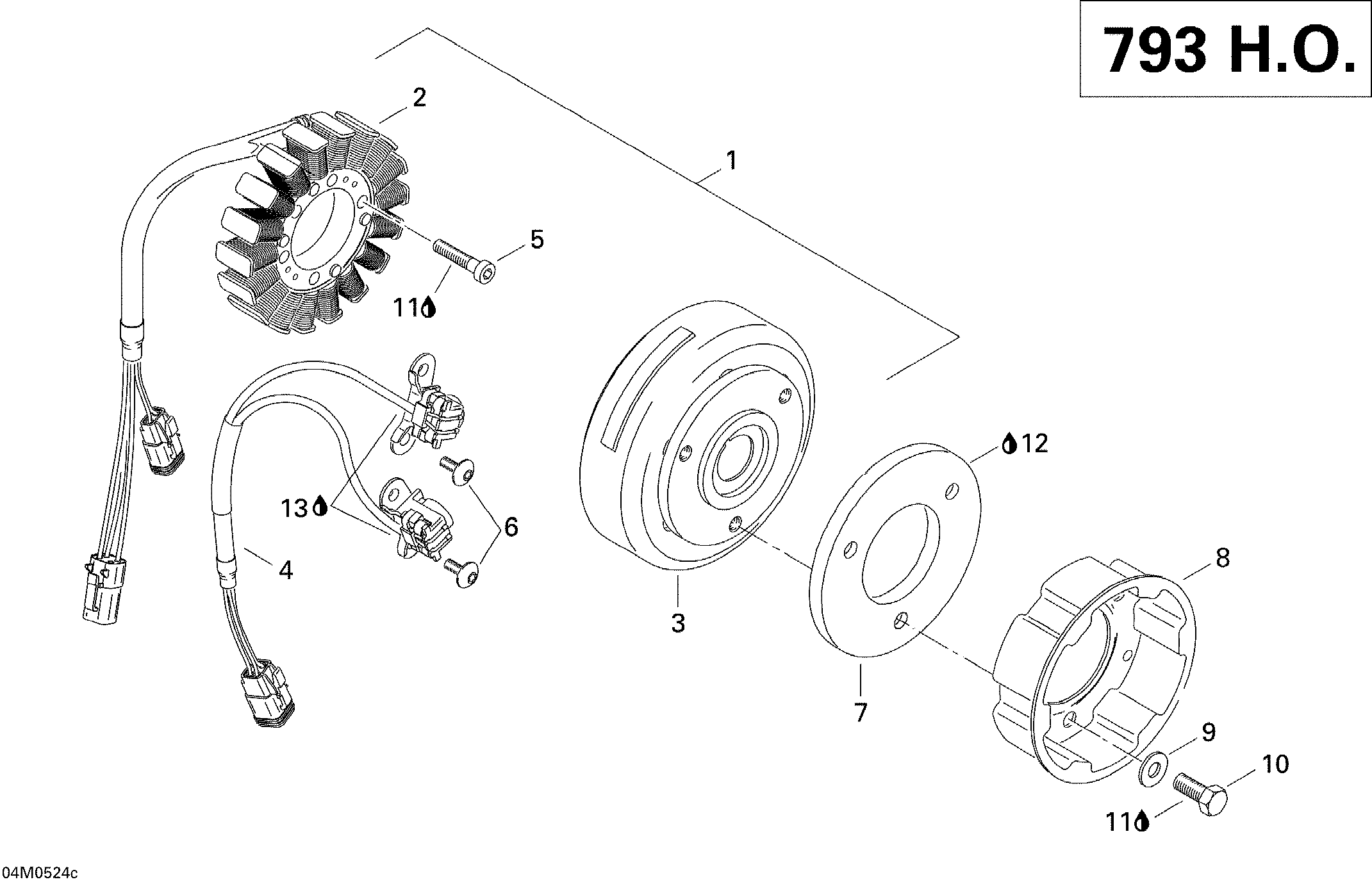

03- Magneto 793HO для BRP Ski-Doo MX Z 800 HO Renegade & Renegade X - 2005
-
№АртикулНазвание
-
2410922946 Stator Plate Ass'YStator Plate Ass'Y
-
3410922947 FlywheelFlywheel
-
4410922948 Pickup Ass'YPickup Ass'Y
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420640321 Taptite ScrewTaptite Screw
-
7420866756 FlywheelFlywheel
-
8420852532 Starting PulleyStarting Pulley
-
9420827405 Flat WasherFlat Washer
-
10207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
11293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12413711400 Loctite 648, 10 mlLoctite 648, 10 ml
