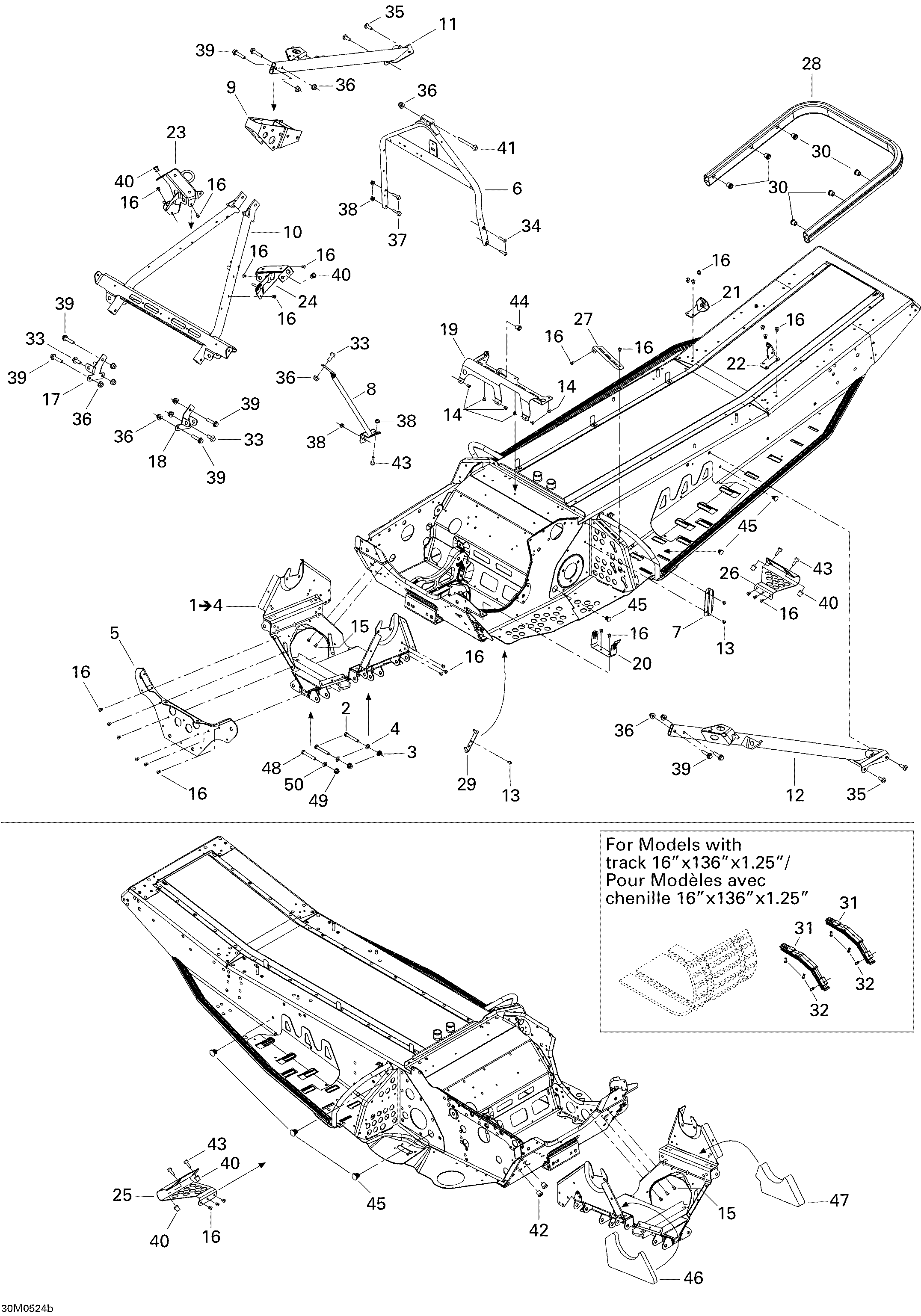

09- Frame and Components для BRP Ski-Doo MX Z 800 HO Renegade & Renegade X - 2005
-
№АртикулНазвание
-
1518324694 Cross Member. Includes 1 to 4Cross Member. Includes 1 to 4
-
2207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
3233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
4234081410 Flat Washer 8 mmFlat Washer 8 mm
-
5518324726 Front PlateFront Plate
-
6518323979 Handle SupportHandle Support
-
7518317504 Cable ProtecteurCable Protecteur
-
8518323472 Brace, BlackBrace, Black
-
9518323853 Bracket Block. RenegateBracket Block. Renegate
-
9518323854 Bracket Block. Renegate XBracket Block. Renegate X
-
10518324739 Upper Cross MemberUpper Cross Member
-
11518323352 RH MemberRH Member
-
12518323354 LH MemberLH Member
-
13390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
14390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
15390909100 Rivet AvexRivet Avex
-
16390909200 Rivet AvexRivet Avex
-
17518322461 RH Shock BracketRH Shock Bracket
-
18518322462 LH Shock BracketLH Shock Bracket
-
19518323532 Intake Air Admission SupportIntake Air Admission Support
-
20518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
21518323769 RH Bracket, BlackRH Bracket, Black
-
22518323770 LH Bracket, BlackLH Bracket, Black
-
23518323535 RH Console SupportRH Console Support
-
24518323536 LH Console SupportLH Console Support
-
25518324391 RH Toe HoldRH Toe Hold
-
26518324392 LH Toe HoldLH Toe Hold
-
27518323105 Plate, BlackPlate, Black
-
28518323778 Rear Bumper. Canada / U.S.ARear Bumper. Canada / U.S.A
-
28518324077 Rear Bumper, Black. EuropeRear Bumper, Black. Europe
-
29518323896 Trunk Bracket, BlackTrunk Bracket, Black
-
30236282084 Hex Screw M8 X 20. EuropeHex Screw M8 X 20. Europe
-
30236282084 Hex Screw M8 X 20. Canada / U.S.AHex Screw M8 X 20. Canada / U.S.A
-
31518324071 Front Protector. Track 16''x136''x1.25''Front Protector. Track 16''x136''x1.25''
-
32390410100 Pop-rivet 3/16''. Track 16''x136''x1.25''Pop-rivet 3/16''. Track 16''x136''x1.25''
-
33207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
34205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
35250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
36233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
37207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
38233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
39207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
40415107300 InsertInsert
-
41207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
42293450166 InsertInsert
-
43207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
44293450232 InsertInsert
-
45518321954 Fastener PanelFastener Panel
-
46518323453 RH Front FoamRH Front Foam
-
47518323007 LH Front FoamLH Front Foam
-
48207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
49233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
50234081410 Flat Washer 8 mmFlat Washer 8 mm
