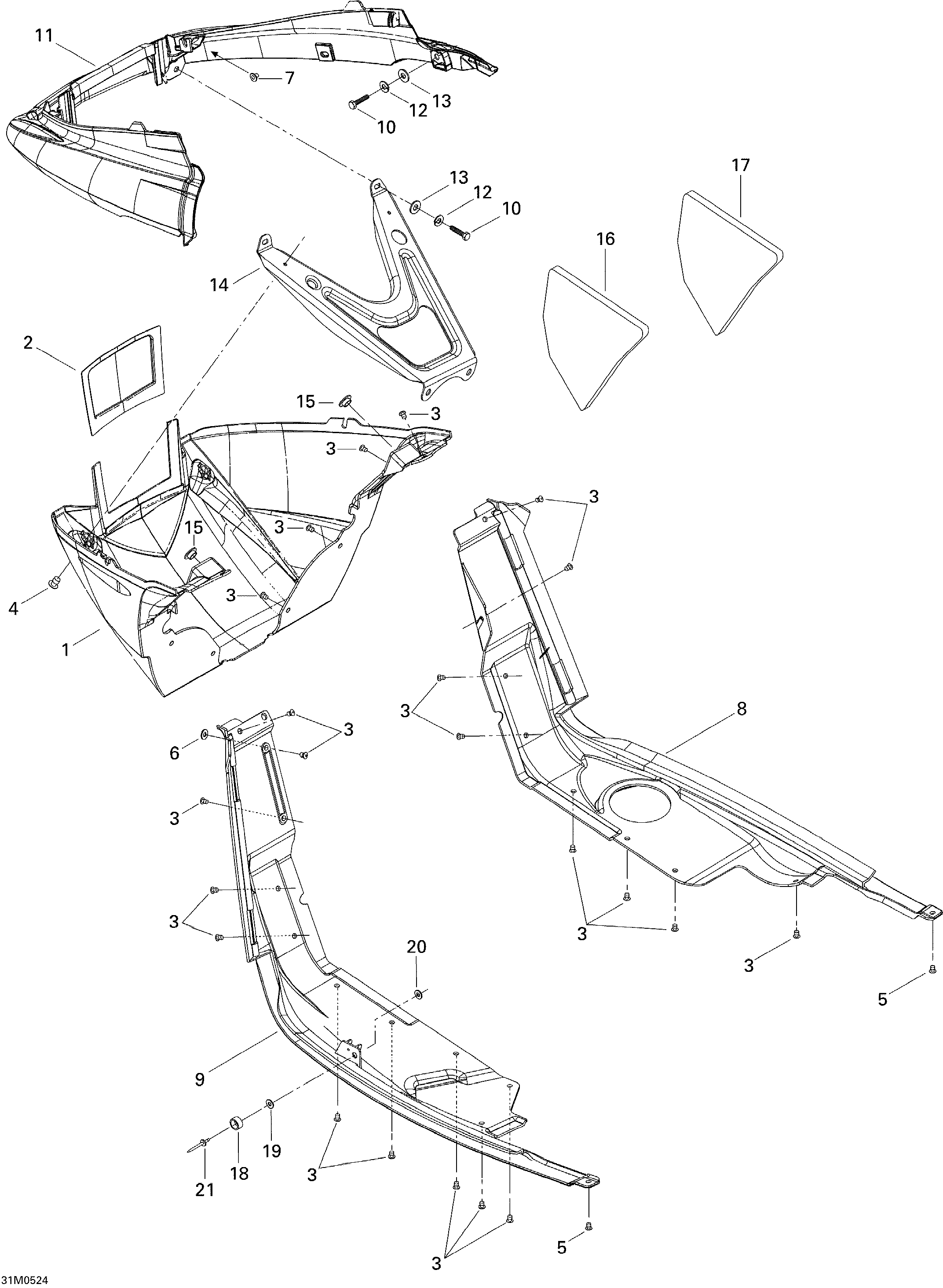

09- Bottom Pan для BRP Ski-Doo MX Z 800 HO Renegade & Renegade X - 2005
-
№АртикулНазвание
-
1502006681 Front Bottom Pan, Black, B-160Front Bottom Pan, Black, B-160
-
2502006687 Bottom Pan GrillBottom Pan Grill
-
3293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
5293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517124300 WasherWasher
-
7293100003 Nut M6Nut M6
-
8502006702 RH Bottom PanRH Bottom Pan
-
9502006703 LH Bottom PanLH Bottom Pan
-
10207161444 Hex Screw M6 X 14Hex Screw M6 X 14
-
11502006679 Bumper, Black, B-160. Renegade & Renegade XBumper, Black, B-160. Renegade & Renegade X
-
11502006680 Bumper, Yellow, B-190. Renegade & Renegade XBumper, Yellow, B-190. Renegade & Renegade X
-
11502006748 Bumper, Viper Red, B-176. Renegade XBumper, Viper Red, B-176. Renegade X
-
12234161471 Lock Washer 6 mmLock Washer 6 mm
-
13224061121 Flat WasherFlat Washer
-
14502006772 SupportSupport
-
15414916600 Nylon CapNylon Cap
-
16502006722 LH FoamLH Foam
-
17502006721 RH FoamRH Foam
-
18415018100 Rubber StopperRubber Stopper
-
19250200024 Rubber Washer M5Rubber Washer M5
-
20293150007 WasherWasher
-
21390401600 Pop Rivet 1/8''Pop Rivet 1/8''
