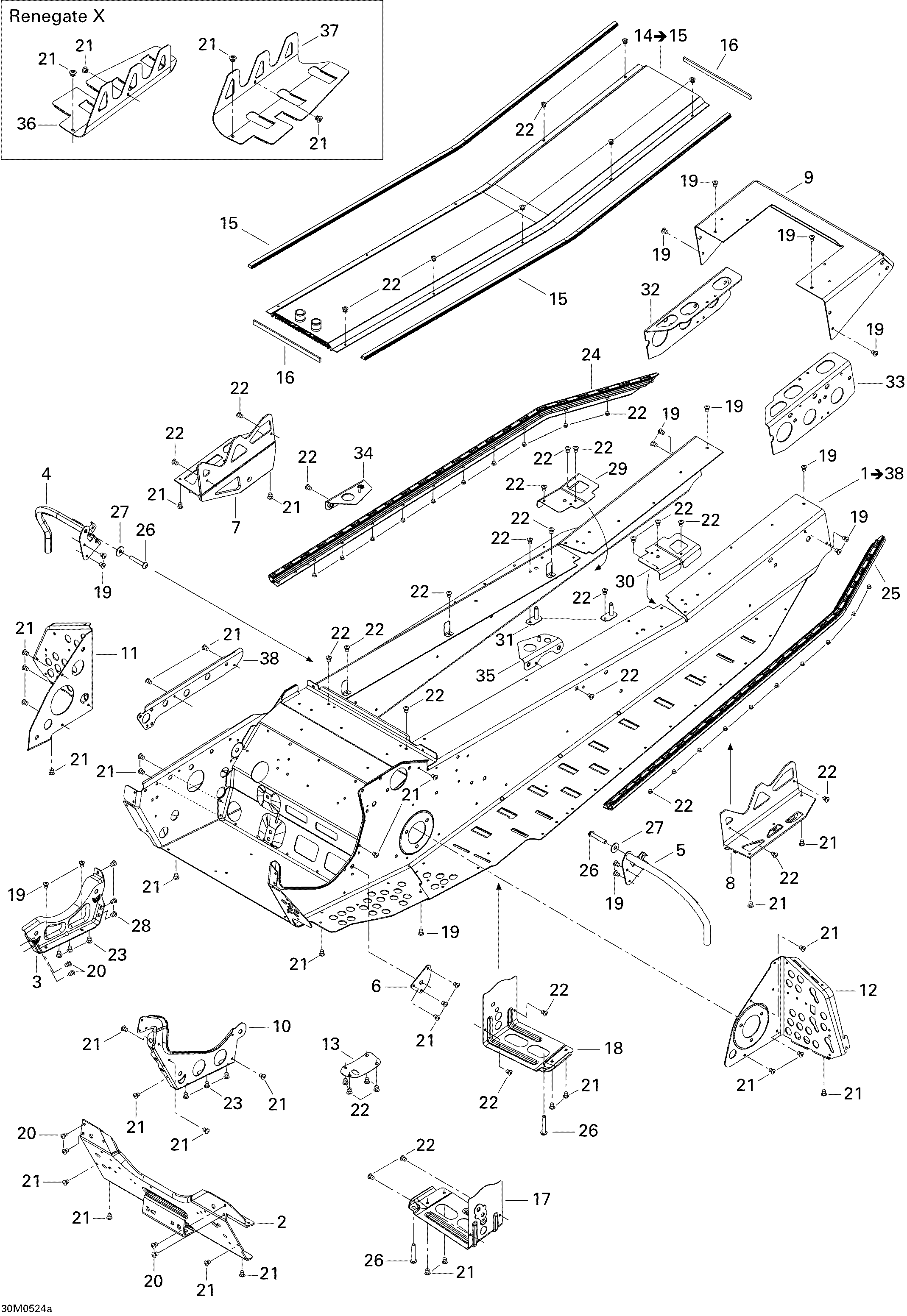

09- Frame для BRP Ski-Doo MX Z 800 HO Renegade & Renegade X - 2005
-
№АртикулНазвание
-
1415128922 Frame. Includes 1 to 38 / Renegate & Renegate XFrame. Includes 1 to 38 / Renegate & Renegate X
-
2518323239 Front PanFront Pan
-
3518323346 Engine Support, BlackEngine Support, Black
-
4518324162 RH Toe Hold SupportRH Toe Hold Support
-
5518324163 LH Toe Hold SupportLH Toe Hold Support
-
6518323507 Outer ReinforcementOuter Reinforcement
-
7518324421 RH Slide BracketRH Slide Bracket
-
8518324422 LH Slide BracketLH Slide Bracket
-
9518323734 Rear CapRear Cap
-
10518323241 Inner Reinforcement, BlackInner Reinforcement, Black
-
11518323805 RH Footrest ReinforcementRH Footrest Reinforcement
-
12518324527 LH Footrest ReinforcementLH Footrest Reinforcement
-
13518324169 PlatePlate
-
14518324245 Rear Radiator. Includes 14 to 15Rear Radiator. Includes 14 to 15
-
15518324068 Radiator ProtectorRadiator Protector
-
16293200096 GasketGasket
-
17518324634 RH Reinforcement, BlackRH Reinforcement, Black
-
18518324635 LH Reinforcement, BlackLH Reinforcement, Black
-
19390909200 Rivet AvexRivet Avex
-
20390909100 Rivet AvexRivet Avex
-
21390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
22390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
23390910300 Rivet HenrobRivet Henrob
-
24518324083 RH RollerRH Roller
-
25518324084 LH RollerLH Roller
-
26205982086 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
27234082410 Flat Washer M8Flat Washer M8
-
28293150096 RivetRivet
-
29518324431 RH Frame ReinforcementRH Frame Reinforcement
-
30518324432 LH Frame ReinforcementLH Frame Reinforcement
-
31518322791 Tank BracketTank Bracket
-
32518324411 RH Rear ReinforcementRH Rear Reinforcement
-
33518324412 LH Rear ReinforcementLH Rear Reinforcement
-
34518324385 RH Frame Reinforcement, BlackRH Frame Reinforcement, Black
-
35518324386 LH Frame Reinforcement, BlackLH Frame Reinforcement, Black
-
36518323307 RH Tunnel Liner. Renegate XRH Tunnel Liner. Renegate X
-
37518323309 LH Tunnel Liner. Renegate XLH Tunnel Liner. Renegate X
-
38518323328 RH Tunnel StiffenerRH Tunnel Stiffener
