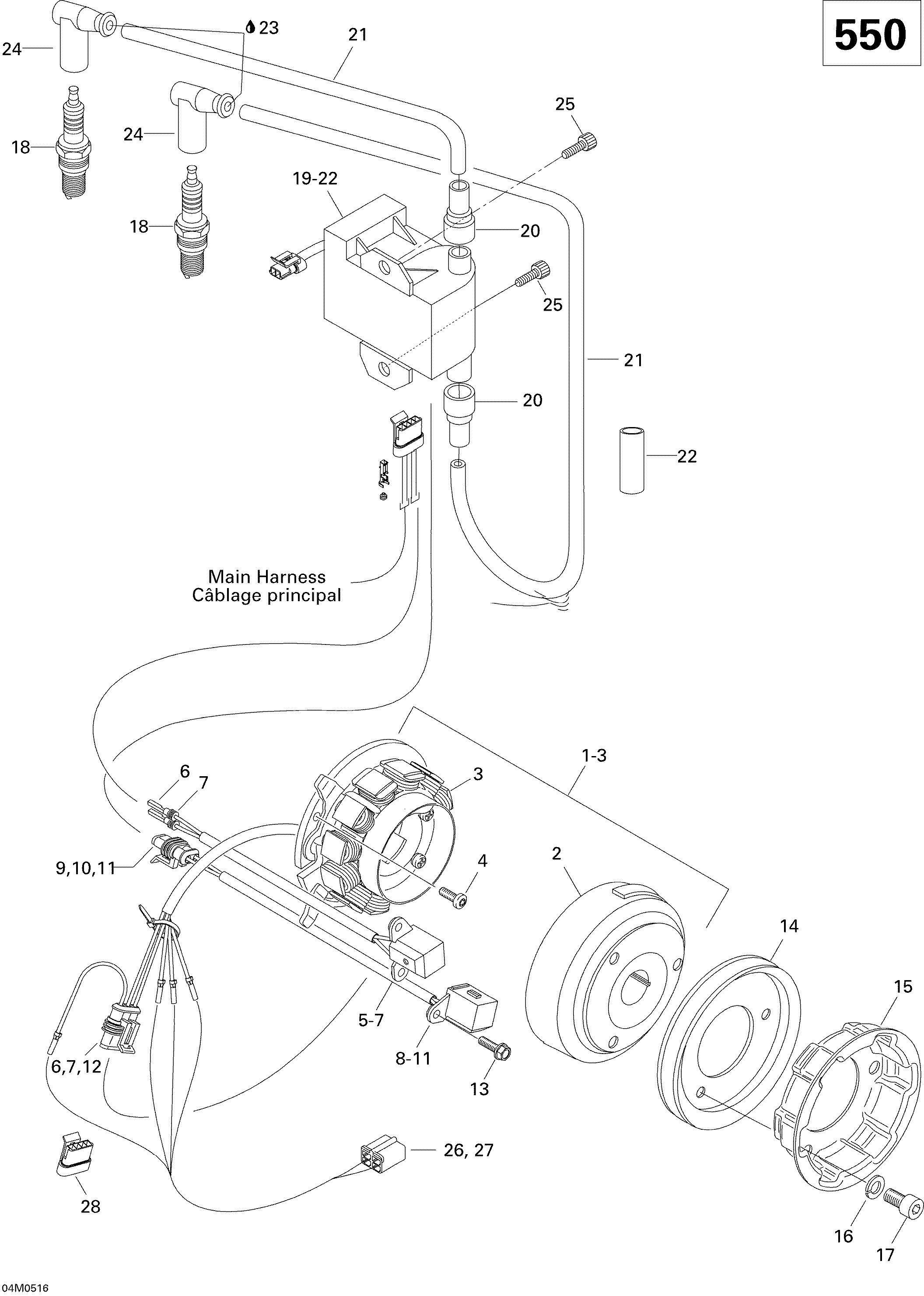

03- Magneto 550F для BRP Ski-Doo Skandic WT 550F - 2005
-
№АртикулНазвание
-
1420888970 Magneto Ducati. Includes 1 to 3Magneto Ducati. Includes 1 to 3
-
2420889375 FlywheelFlywheel
-
3420889365 Stator Plate AStator Plate A
-
4420641521 ScrewScrew
-
5420966548 Pick-Up Ass'Y. Includes 5 to 7Pick-Up Ass'Y. Includes 5 to 7
-
6278001014 Female TerminalFemale Terminal
-
7278001013 SealSeal
-
8420966546 Pick-Up Ass'Y. Includes 8 to 11Pick-Up Ass'Y. Includes 8 to 11
-
9409209500 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
10278001014 Female TerminalFemale Terminal
-
11278001013 SealSeal
-
12409209600 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
13420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
14420980486 V-Belt PulleyV-Belt Pulley
-
15420852414 Rope SheaveRope Sheave
-
16420845311 Lock Washer 8 mmLock Washer 8 mm
-
17420440852 Torx Flange Screw M8 X 16Torx Flange Screw M8 X 16
-
18414961100 Spark Plug (NGK Br9Es)Spark Plug (NGK Br9Es)
-
19512059626 Calibration Module. Includes 19 1o 22Calibration Module. Includes 19 1o 22
-
20515174900 Protection CapProtection Cap
-
21278001268 Spark Plug WireSpark Plug Wire
-
22420830962 Rubber BushingRubber Bushing
-
23293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
24278000237 Spark Plug CapSpark Plug Cap
-
25M40322 ScrewScrew
-
26278001473 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
27278001474 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
28M42618 Male HousingMale Housing
