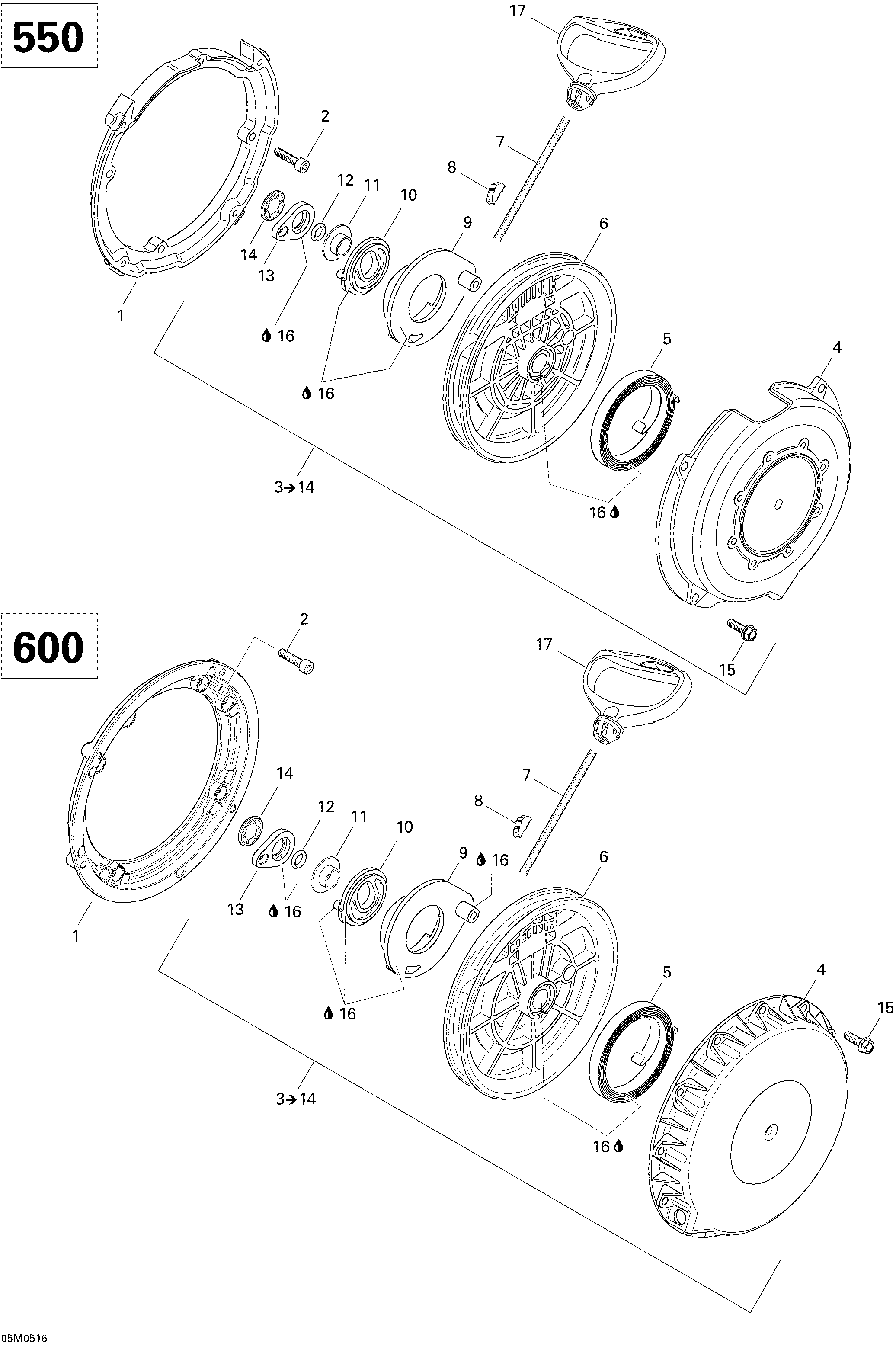

04- Rewind Starter 550F для BRP Ski-Doo Skandic WT 550F - 2005
-
№АртикулНазвание
-
1420810952 Flange Connector. 550 SWTFlange Connector. 550 SWT
-
2420440202 Torx Flange Screw M6X 20. 550 SWTTorx Flange Screw M6X 20. 550 SWT
-
3420888219 Rewind Starter Ass'y. 550 SWT, Includes 3 to 15Rewind Starter Ass'y. 550 SWT, Includes 3 to 15
-
4420811346 Starter Housing. 550 SWTStarter Housing. 550 SWT
-
5420939115 Rewind SpringRewind Spring
-
6420852480 Rope Sheave. 550 SWTRope Sheave. 550 SWT
-
7412500200 Starter RopeStarter Rope
-
8420852070 Key Clamp. 550 SWTKey Clamp. 550 SWT
-
9420852296 Pawl. 550 SWTPawl. 550 SWT
-
10420852305 Pawl Lock. 550 SWTPawl Lock. 550 SWT
-
11420847925 Stage SleeveStage Sleeve
-
12420250400 O-RingO-Ring
-
13420852520 Lock RingLock Ring
-
14420845560 Locking ElementLocking Element
-
15420941250 Tapping Screw M6 X 20. 550 SWTTapping Screw M6 X 20. 550 SWT
-
16420899763 Molykote Pg 54, 10 G. 550 SWTMolykote Pg 54, 10 G. 550 SWT
-
17572084400 Starter Grip. 550 SWTStarter Grip. 550 SWT
