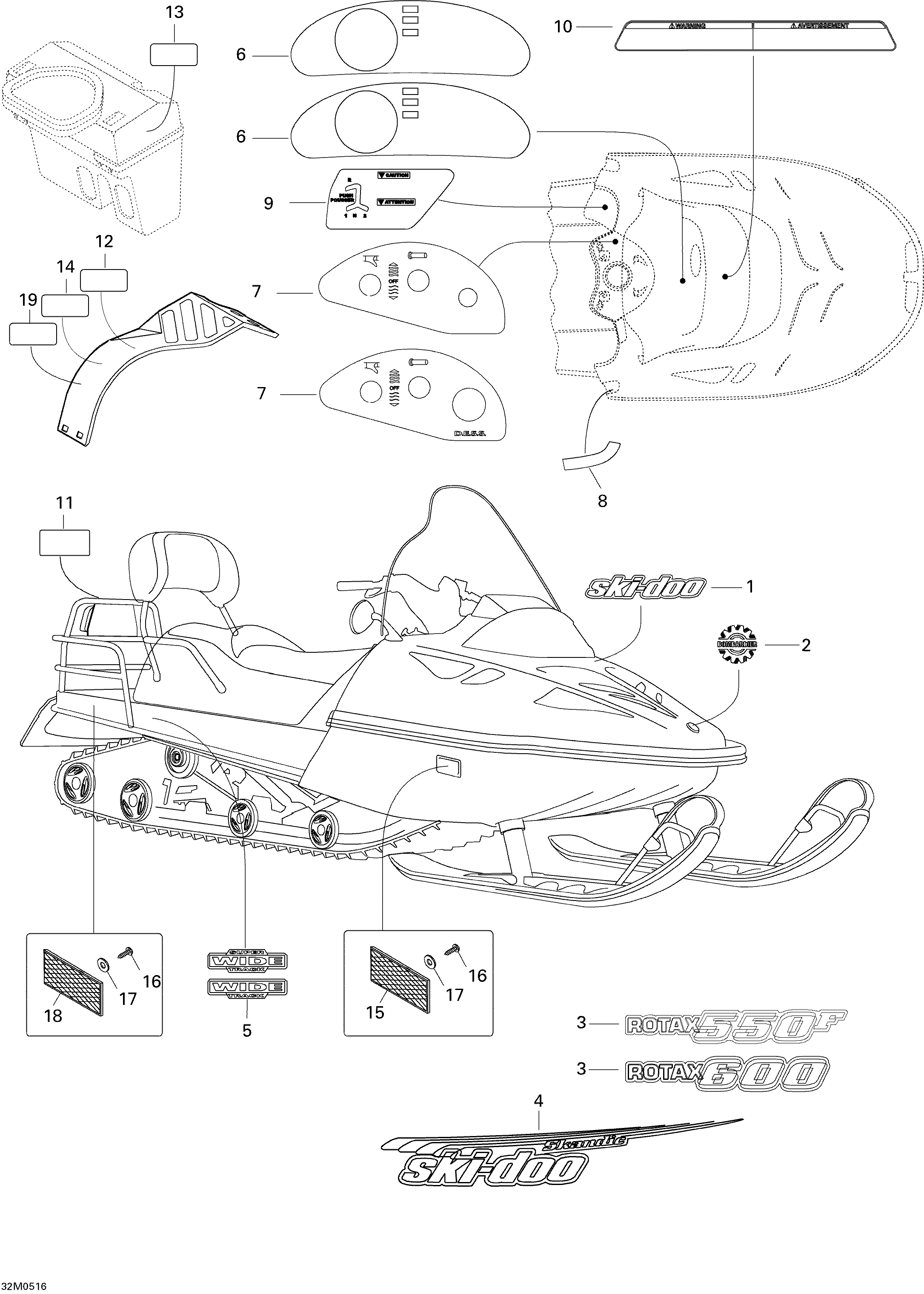

09- Decals 550F WT для BRP Ski-Doo Skandic WT 550F - 2005
-
№АртикулНазвание
-
1516000117 «Ski-Doo» Decal«Ski-Doo» Decal
-
2516002487 Bombardier LogoBombardier Logo
-
3516002308 Rotax Decal ''552''. WT 550Rotax Decal ''552''. WT 550
-
4516002309 Side Decal RHSide Decal RH
-
4516002310 Side Decal LHSide Decal LH
-
5516000024 Frame Decal. WT 550Frame Decal. WT 550
-
6418000808 Dash Decal. WT 550Dash Decal. WT 550
-
7516001720 Heat Grip Decal. WT 550Heat Grip Decal. WT 550
-
8516000236 Refl. DecalRefl. Decal
-
9516001201 Reverse DecalReverse Decal
-
10516002074 Label Security Starter ZxLabel Security Starter Zx
-
11516001243 Security Label (Hitch)Security Label (Hitch)
-
12516001190 Label Security (Belt Guard)Label Security (Belt Guard)
-
13516001191 Caution Label (Air Intake)Caution Label (Air Intake)
-
14516001297 Security Label (Hot Parts)Security Label (Hot Parts)
-
15414510200 Reflector (Amber)Reflector (Amber)
-
16M40070 ScrewScrew
-
17234451418 Washer M5Washer M5
-
18414510100 Reflector (Red)Reflector (Red)
-
19M5346653 Instruction LabelInstruction Label
