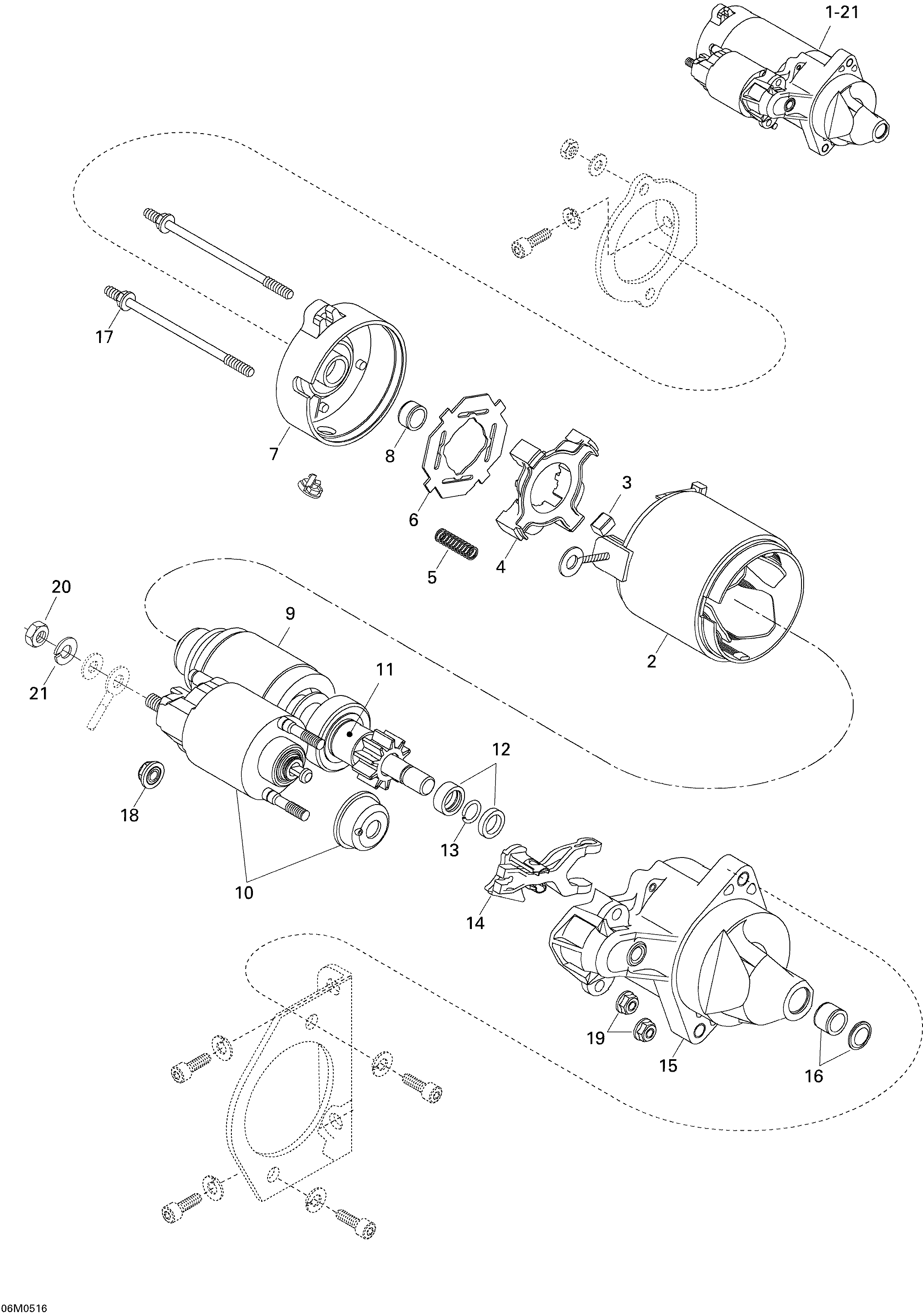

04- Electric Starter 550F для BRP Ski-Doo Skandic WT 550F - 2005
-
№АртикулНазвание
-
1515175795 Starter Ass'y. Includes 1 to 21Starter Ass'y. Includes 1 to 21
-
2410213106 Starter HousingStarter Housing
-
3410213107 Brush KitBrush Kit
-
4410209700 Brush HolderBrush Holder
-
5410209800 Brush SpringBrush Spring
-
6410209900 InsulatorInsulator
-
7410213108 HousingHousing
-
8410210100 Bushing-Brass BushingBushing-Brass Bushing
-
9410210200 Armature Assy.Armature Assy.
-
10410210300 Switch Assy.Switch Assy.
-
11410210400 Starter ClutchStarter Clutch
-
12410212500 NutNut
-
13410212600 CirclipCirclip
-
14410213109 LeverLever
-
15410213113 HousingHousing
-
16410210900 Brass BushingBrass Bushing
-
17410212000 BoltBolt
-
18410211100 NutNut
-
19410211200 NutNut
-
20232081414 Nut M8Nut M8
-
21234181401 Lock Washer M8Lock Washer M8
