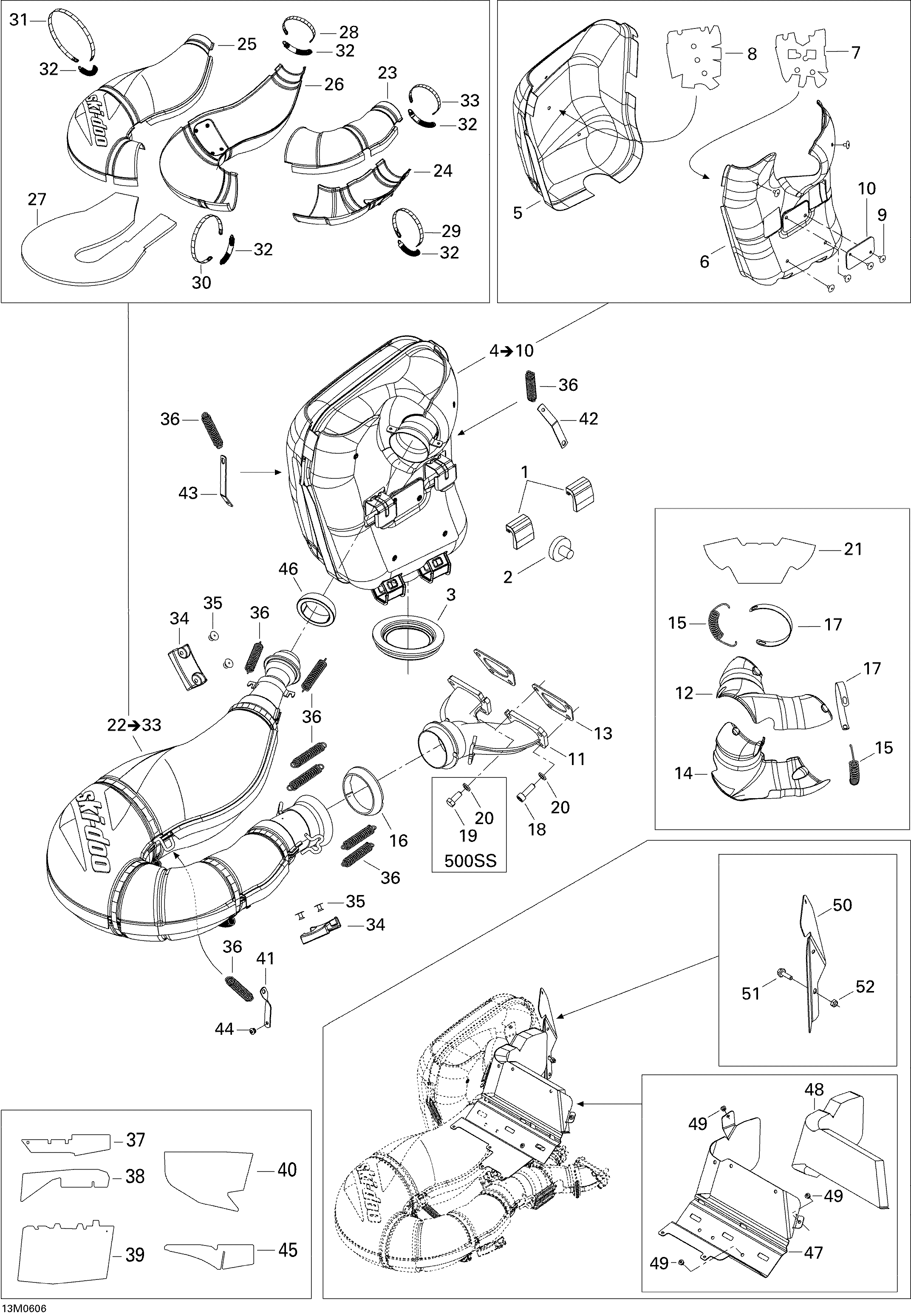

01- Exhaust System 500 для BRP Ski-Doo GSX 500SS - 2006
-
№АртикулНазвание
-
1514053372 Upper StopperUpper Stopper
-
2514053654 Rubber BumperRubber Bumper
-
3514053394 Exhaust GrommetExhaust Grommet
-
4514054121 Muffler Ass'y. 500 SS, Includes 4 To 10Muffler Ass'y. 500 SS, Includes 4 To 10
-
5514054122 RH Heat ShieldRH Heat Shield
-
6514053585 LH Heat ShieldLH Heat Shield
-
7514053590 LH Insulating WoolLH Insulating Wool
-
8514053589 RH Insulating WoolRH Insulating Wool
-
9390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
10514053429 ReinforcementReinforcement
-
11420673130 Exhaust Manifold. 500 SSExhaust Manifold. 500 SS
-
12514053831 Upper Enveloppe (exhaust Manifold)Upper Enveloppe (exhaust Manifold)
-
13420931610 Gasket. 500 SSGasket. 500 SS
-
14514053830 Lower Enveloppe (exhaust Manifold)Lower Enveloppe (exhaust Manifold)
-
15514053643 SpringSpring
-
16514053487 Exhaust GasketExhaust Gasket
-
17514053603 Retaining StrapRetaining Strap
-
18205082544 Socket Head Screw M8 X 25. 500 SSSocket Head Screw M8 X 25. 500 SS
-
19207182044 Hex Screw M8 X 20. 500 SSHex Screw M8 X 20. 500 SS
-
20514053837 Washer. 500 SSWasher. 500 SS
-
21514053284 Insulating Wool. 500 SS, 800 HOInsulating Wool. 500 SS, 800 HO
-
22514053732 Tuned Pipe Ass'y. 500 SS, Includes 22 To 33Tuned Pipe Ass'y. 500 SS, Includes 22 To 33
-
23514053609 Upper Front Half EnvelopeUpper Front Half Envelope
-
24514053610 Lower Front Haft EnvelopeLower Front Haft Envelope
-
25514053612 Upper Rear Half EnvelopeUpper Rear Half Envelope
-
26514053613 Lower Rear Half EnvelopeLower Rear Half Envelope
-
27514053584 Insulating WoolInsulating Wool
-
28514053437 Retaining StrapRetaining Strap
-
29514053500 Retaining StrapRetaining Strap
-
30514053534 Retaining StrapRetaining Strap
-
31514053535 Retaining StrapRetaining Strap
-
32514053643 SpringSpring
-
33514053536 Retaining StrapRetaining Strap
-
34514053352 BumperBumper
-
35293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
36415107100 SpringSpring
-
37514053560 Reflective SheetReflective Sheet
-
38514053622 Reflective SheetReflective Sheet
-
39514053954 Reflective SheetReflective Sheet
-
40514053562 Reflective SheetReflective Sheet
-
41514053955 Spring BracketSpring Bracket
-
42514053725 Spring BracketSpring Bracket
-
43514053393 Spring BracketSpring Bracket
-
44293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
45514053673 Reflective SheetReflective Sheet
-
46514053812 Exhaust GasketExhaust Gasket
-
47514053956 Acoustic PlateAcoustic Plate
-
48514053967 Acoustic FoamAcoustic Foam
-
49390402200 Pop Rivet 3/16''Pop Rivet 3/16''
