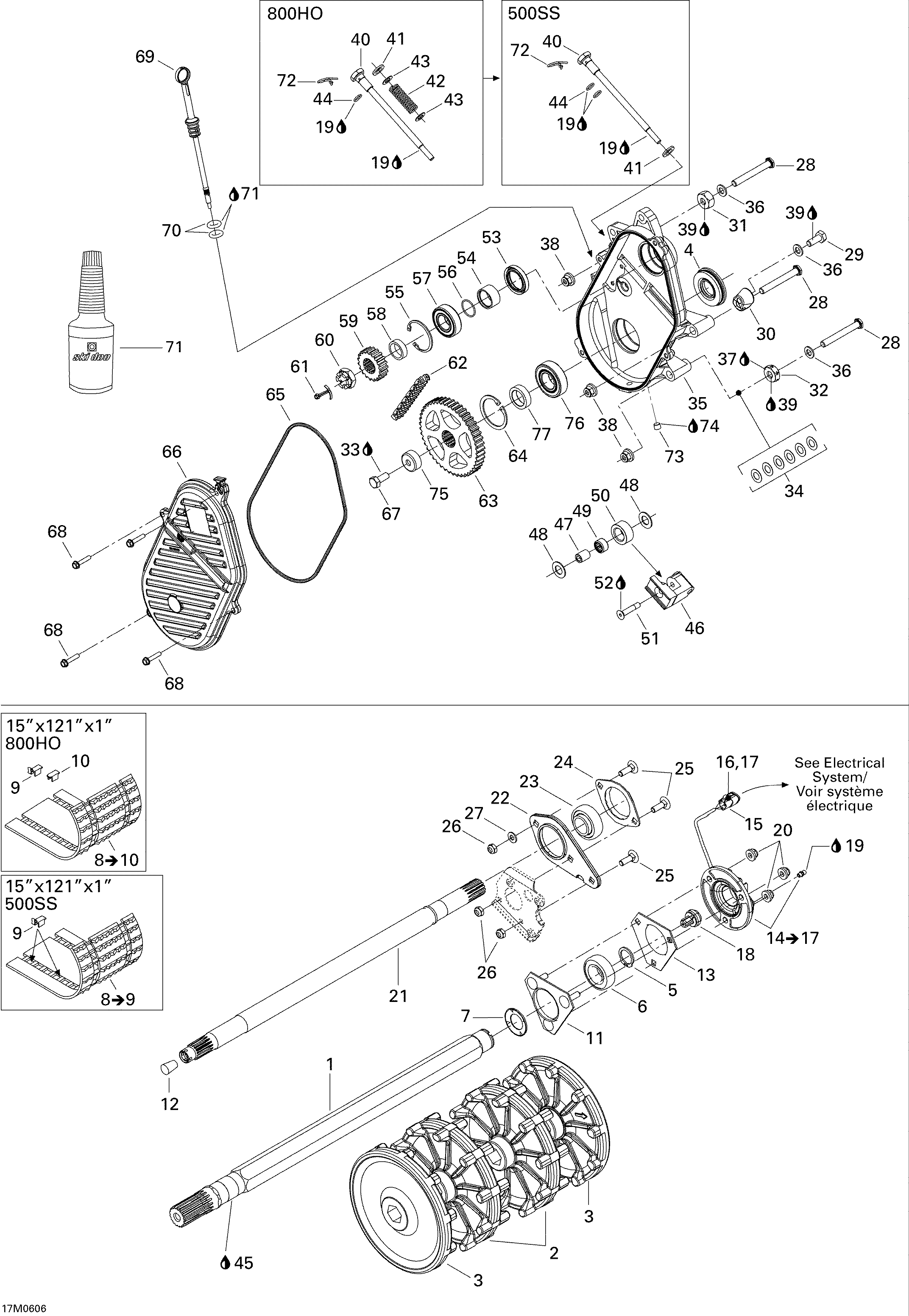

05- Drive System 500 для BRP Ski-Doo GSX 500SS - 2006
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504152198 Sprocket, 10 TeethSprocket, 10 Teeth
-
3504152199 Half Sprocket, 10 TeethHalf Sprocket, 10 Teeth
-
4504151918 Oil Seal Ass'yOil Seal Ass'y
-
5371910200 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Bearing ProtectorBearing Protector
-
8504152484 Track Ass'y 15''x121''x1'' (cleat/3). 500SS, Includes 8 to 9Track Ass'y 15''x121''x1'' (cleat/3). 500SS, Includes 8 to 9
-
9504152410 GuideGuide
-
10500003300 CleatCleat
-
11504151860 Bearing HousingBearing Housing
-
12414784800 CorkCork
-
13501025000 FlangeFlange
-
14504152345 Rotation Sensor. Includes 14 to 17Rotation Sensor. Includes 14 to 17
-
15515175671 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
16278000632 Female TerminalFemale Terminal
-
17515175676 Female Lock, 3 CircuitsFemale Lock, 3 Circuits
-
18504152040 Magnetic AdaptorMagnetic Adaptor
-
19219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
20233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
21504152018 Counter ShaftCounter Shaft
-
22504151968 SpacerSpacer
-
23504152535 Ball BearingBall Bearing
-
24501026900 FlangeFlange
-
25207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
26232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
27234081410 Flat Washer 8 mmFlat Washer 8 mm
-
28250000151 Hex Screw M10 X 80Hex Screw M10 X 80
-
29207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
30504152252 SpacerSpacer
-
31504083800 SpacerSpacer
-
32504152237 SpacerSpacer
-
33293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
34504073700 WasherWasher
-
35504152481 Chaincase. 500SSChaincase. 500SS
-
36503175800 WasherWasher
-
37293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
38233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
39293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
40732601314 Adjustment Screw. 500SSAdjustment Screw. 500SS
-
41234001410 Flat Washer 10 mm. 500SSFlat Washer 10 mm. 500SS
-
44414484400 O-Ring. 500SSO-Ring. 500SS
-
45219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
46504151951 Chain Tensioner. 500SSChain Tensioner. 500SS
-
47504080200 SpacerSpacer
-
48504080300 WasherWasher
-
49405403000 Needle BearingNeedle Bearing
-
50414531300 RollerRoller
-
51732601144 ScrewScrew
-
52293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
53415049300 SealSeal
-
54507031500 SpacerSpacer
-
55371901700 Circlip, InteriorCirclip, Interior
-
56414876700 O-RingO-Ring
-
57504152006 Ball BearingBall Bearing
-
58504152587 ShimShim
-
59504091100 22 Teeth Sprocket, Large. 500SS22 Teeth Sprocket, Large. 500SS
-
60250000012 Hex Castle Nut M20 X 1.5Hex Castle Nut M20 X 1.5
-
61371006300 Pin CotterPin Cotter
-
62504151857 Drive Chain, 74 LinksDrive Chain, 74 Links
-
63504148500 43 Teeth Sprocket, Large43 Teeth Sprocket, Large
-
64415064300 Circlip, InteriorCirclip, Interior
-
65415046400 O-RingO-Ring
-
66504152471 Chaincase CoverChaincase Cover
-
67207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
68210263080 Hex Forming Screw M6 X 30Hex Forming Screw M6 X 30
-
69504151703 Filler Cap Ass'yFiller Cap Ass'y
-
70414969400 O-RingO-Ring
-
71413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
72414575600 Hair PinHair Pin
-
73504151921 Plug 1/8''-27Plug 1/8''-27
-
74293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
75504152460 CapCap
-
76504152005 Ball BearingBall Bearing
-
77504152058 ShimShim
