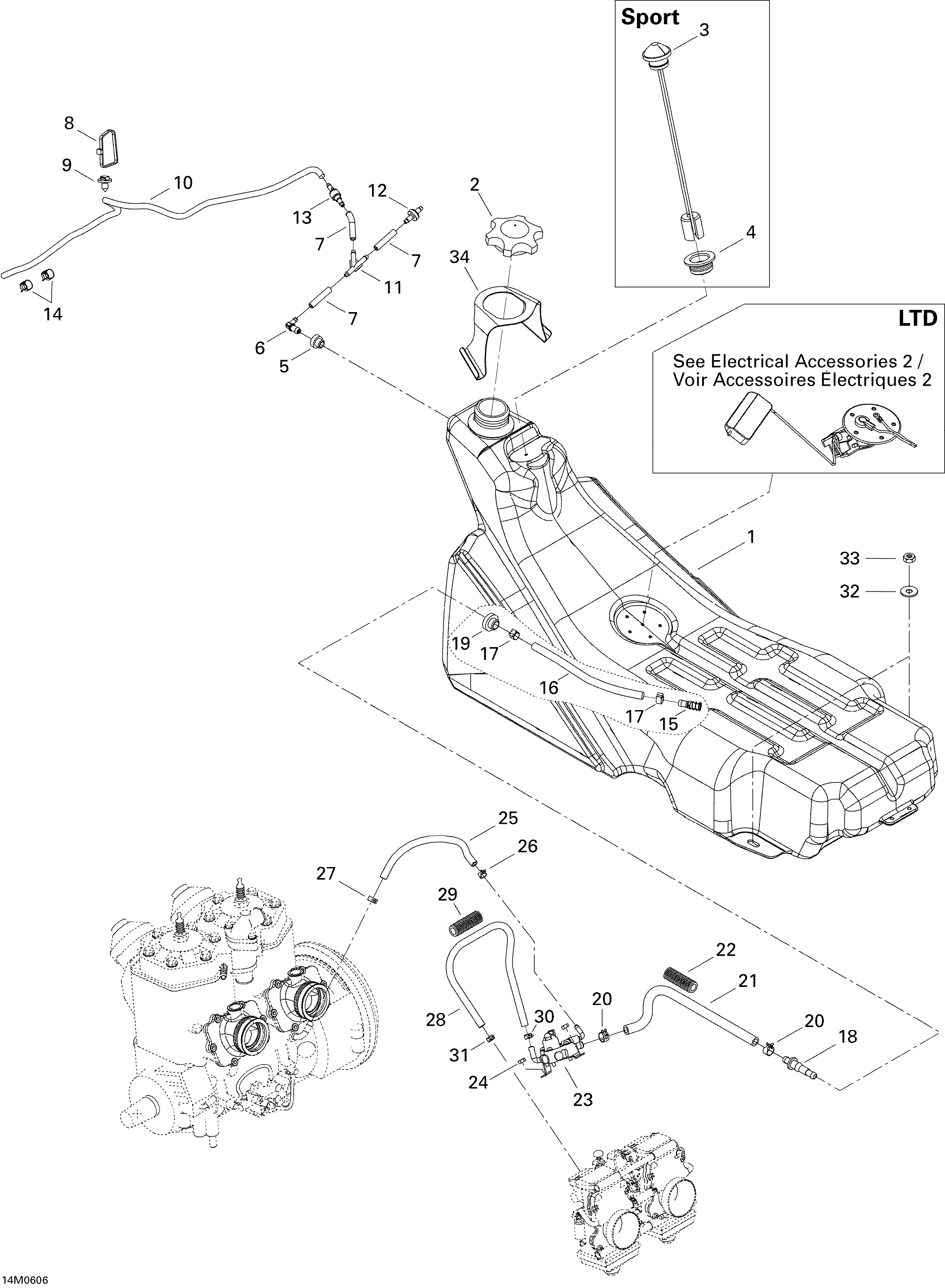

02- Fuel System 500 для BRP Ski-Doo GSX 500SS - 2006
-
№АртикулНазвание
-
1513033080 Fuel Tank. SPORTFuel Tank. SPORT
-
2513033025 Fuel Tank CapFuel Tank Cap
-
3513033092 Fuel Gauge. SPORTFuel Gauge. SPORT
-
4293720058 Grommet. SPORTGrommet. SPORT
-
5513032908 GrommetGrommet
-
6414580700 Elbow Male ConnectorElbow Male Connector
-
7415080200 LineLine
-
8414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9293730018 Dart MountDart Mount
-
10415080200 LineLine
-
11293710059 Y-FittingY-Fitting
-
12275500398 Check ValveCheck Valve
-
13275500505 Check ValveCheck Valve
-
14414554800 Spring ClampSpring Clamp
-
15414872100 Fuel FilterFuel Filter
-
16513033070 HoseHose
-
17513033010 Norma Spring ClampNorma Spring Clamp
-
18414872700 Male ConnectorMale Connector
-
19570273900 GrommetGrommet
-
20293650053 Crimp ClampCrimp Clamp
-
21513033027 HoseHose
-
22415080000 Tubing, 16 mmTubing, 16 mm
-
23403901812 Fuel PumpFuel Pump
-
24233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
25513033035 HoseHose
-
26414415200 Spring ClampSpring Clamp
-
27513033029 Spring ClampSpring Clamp
-
28415117800 TubeTube
-
29415079900 Tubing, 10 mmTubing, 10 mm
-
30293650042 Oetiker ClampOetiker Clamp
-
31414420700 Universal Spring Clamp, 3/8''Universal Spring Clamp, 3/8''
-
32234082410 Flat Washer M8Flat Washer M8
-
33232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
34513033066 SupportSupport
