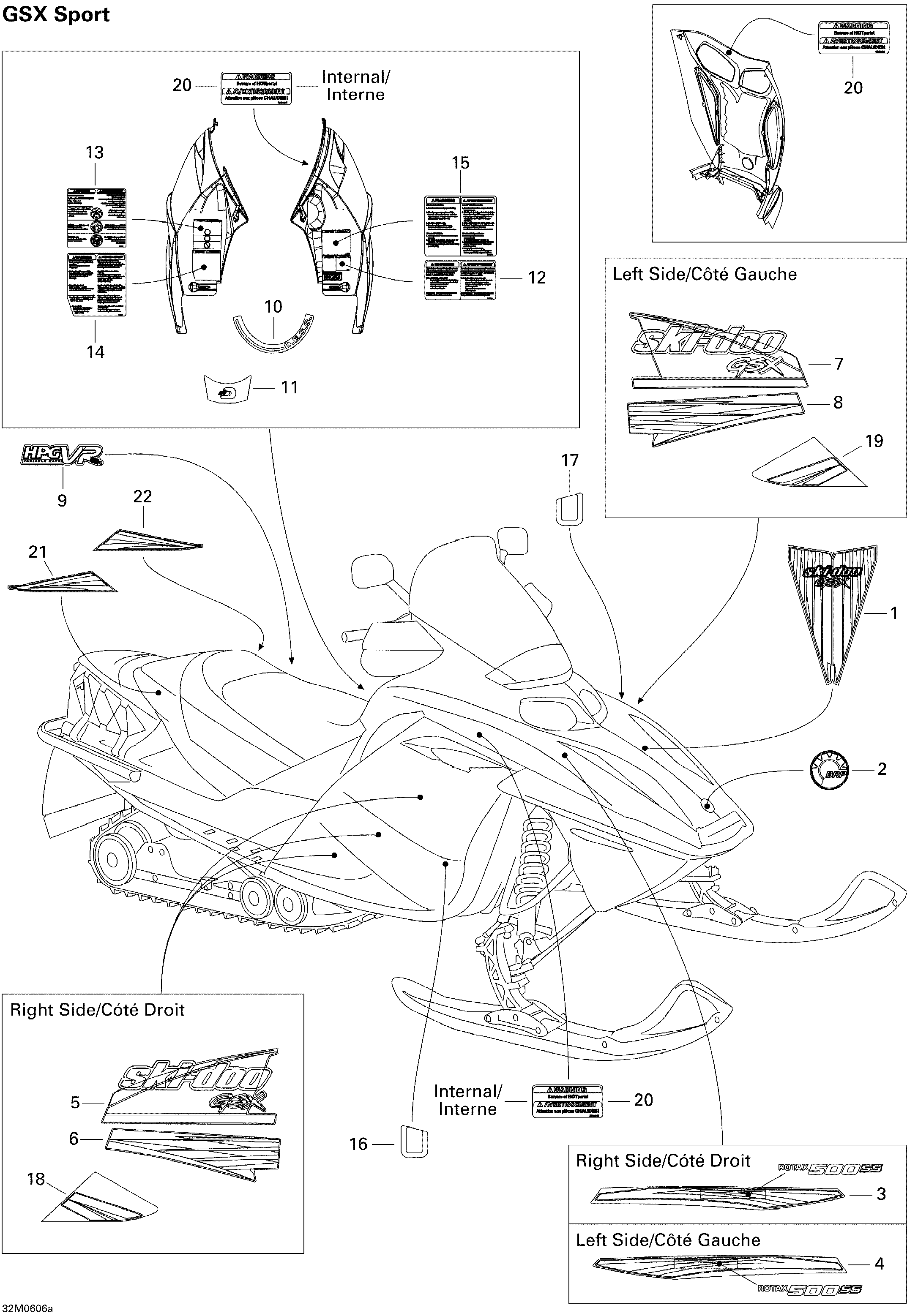

09- Decals Sport для BRP Ski-Doo GSX 500SS - 2006
-
№АртикулНазвание
-
1516002163 Hood DecalHood Decal
-
2219902468 Logo BrpLogo Brp
-
3516002165 RH Hood Decal 500ssRH Hood Decal 500ss
-
4516002166 LH Hood Decal 500ssLH Hood Decal 500ss
-
5516002977 RH Side DecalRH Side Decal
-
6516002981 RH Lower Side DecalRH Lower Side Decal
-
7516002978 LH Side DecalLH Side Decal
-
8516002982 LH Lower Side DecalLH Lower Side Decal
-
9516001730 Decal SuspensionDecal Suspension
-
10516001335 Dess DecalDess Decal
-
11516001775 Visor DecalVisor Decal
-
12516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
13516002908 Security Label, GeneralSecurity Label, General
-
14516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
15516003024 Security Label, StartingSecurity Label, Starting
-
16516001910 RH Protector DecalRH Protector Decal
-
17516001911 LH Protector DecalLH Protector Decal
-
18516002984 RH Rear Lower DecalRH Rear Lower Decal
-
19516002985 LH Rear Lower DecalLH Rear Lower Decal
-
20516002965 Security Label, Hot PartsSecurity Label, Hot Parts
-
21516002988 RH Cover DecalRH Cover Decal
-
22516002989 LH Cover DecalLH Cover Decal
