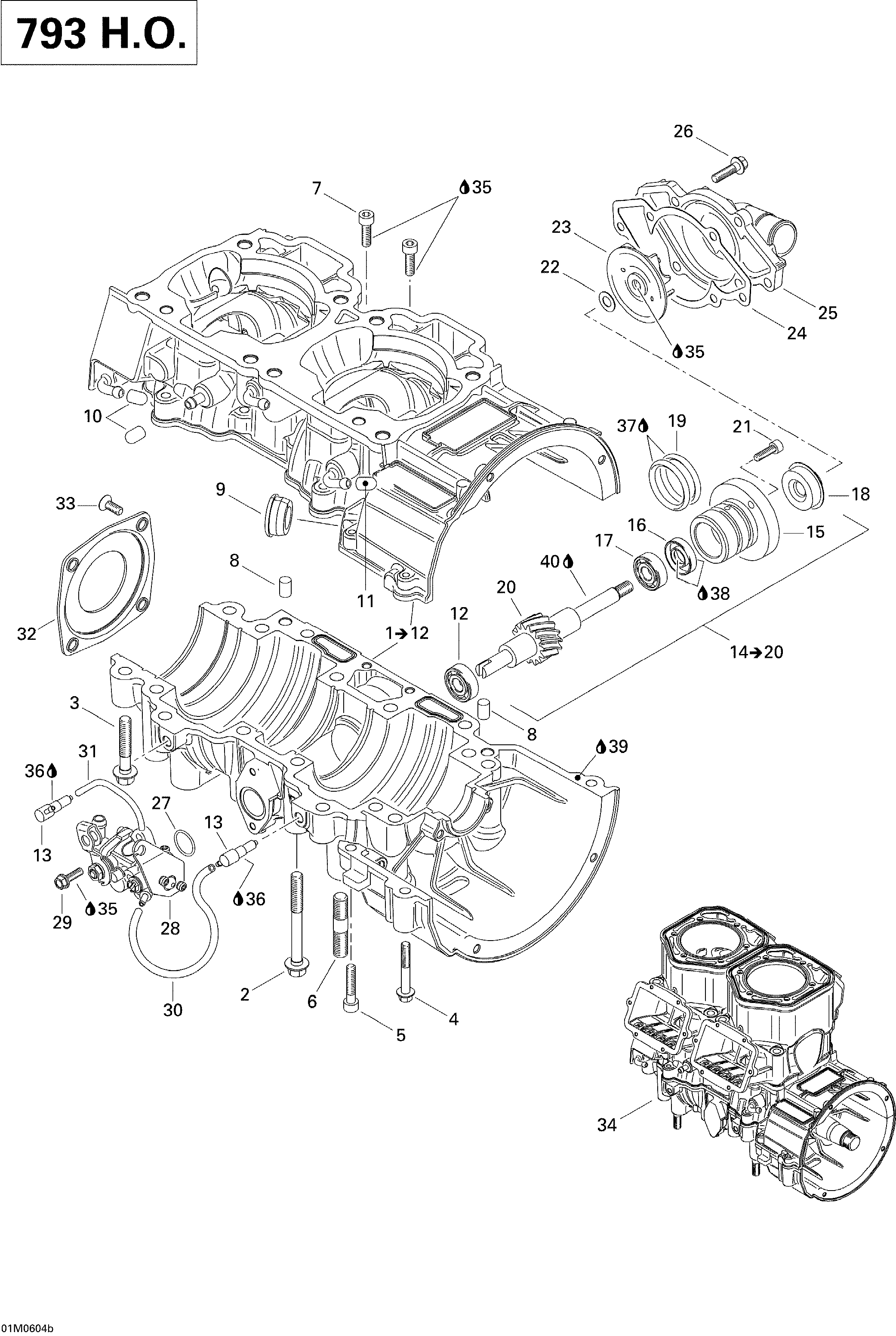

01- Crankcase, Water Pump And Oil Pump (793HO) для BRP Ski-Doo GTX 800 HO - 2006
-
№АртикулНазвание
-
1420889686 Crankcase Ass'y. Includes 1 to 12Crankcase Ass'y. Includes 1 to 12
-
2420640836 Hex Collar Screw M8 X 75Hex Collar Screw M8 X 75
-
3420640431 Hex Collar Screw M8 X 45Hex Collar Screw M8 X 45
-
4420640311 Hex Collar Screw M6 X 45Hex Collar Screw M6 X 45
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420641834 Stud M10 X 29Stud M10 X 29
-
7420840401 Socket Head Screw M6 X 22Socket Head Screw M6 X 22
-
8420632010 Center PinCenter Pin
-
9420860965 Cable GrommetCable Grommet
-
10420960770 CapCap
-
11420960777 CapCap
-
12420232100 Ball BearingBall Bearing
-
13420956510 Check ValveCheck Valve
-
14420837421 Water Pump/oil Pump Ass'y. Includes 14 to 20Water Pump/oil Pump Ass'y. Includes 14 to 20
-
16420230196 Oil SealOil Seal
-
17420232100 Ball BearingBall Bearing
-
18420650370 Rotary SealRotary Seal
-
19420950890 O-RingO-Ring
-
21420840511 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
22420227945 WasherWasher
-
23420222505 Water ImpellerWater Impeller
-
24420931810 GasketGasket
-
25420922630 Water Pump HousingWater Pump Housing
-
26420240031 Hex Screw M6 X 25Hex Screw M6 X 25
-
27293300041 O-ringO-ring
-
28420888774 Oil Pump Ass'yOil Pump Ass'y
-
29420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
30414413800 Oil LineOil Line
-
31414413800 Oil LineOil Line
-
32420812420 CoverCover
-
33420941430 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
34420079342 Short Block 793 HoShort Block 793 Ho
-
35293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
36413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
37413707000 Molykote 111, 150 GMolykote 111, 150 G
-
38420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
-
39293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
40413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
