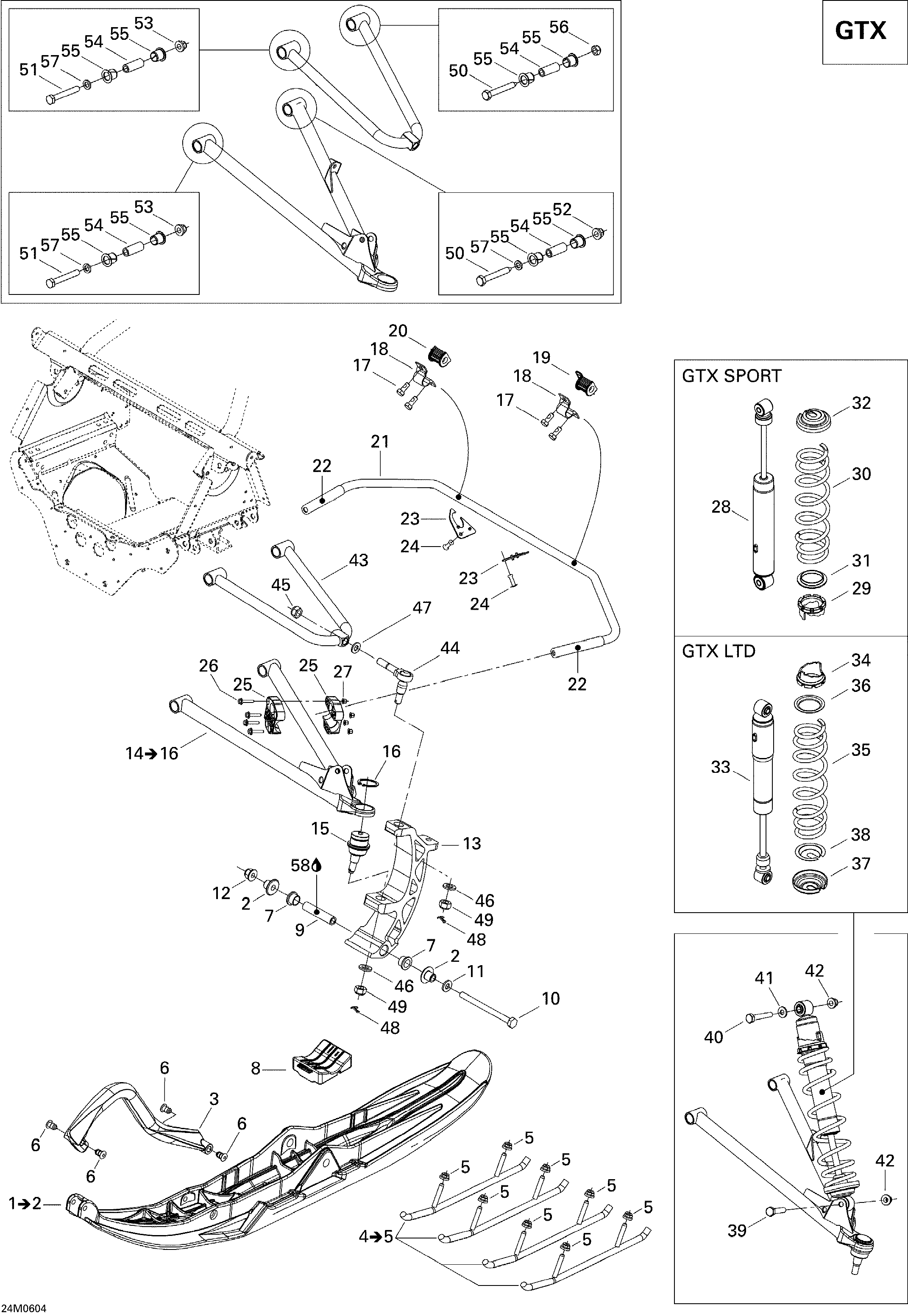

07- Front Suspension And Ski LTD для BRP Ski-Doo GTX 800 HO - 2006
-
№АртикулНазвание
-
1505071775 RH Pilot Ski Ass'y, Black. Europe / Includes 1 to 2RH Pilot Ski Ass'y, Black. Europe / Includes 1 to 2
-
1505071790 RH Pilot Ski Ass'y, Black. Includes 1 to 2RH Pilot Ski Ass'y, Black. Includes 1 to 2
-
1505071777 LH Pilot Ski Ass'y, Black. Europe / Includes 1 to 2LH Pilot Ski Ass'y, Black. Europe / Includes 1 to 2
-
1505071791 LH Pilot Ski Ass'y, Black. Includes 1 to 2LH Pilot Ski Ass'y, Black. Includes 1 to 2
-
2505071781 CushionCushion
-
3505070963 Handle, Black, B-160Handle, Black, B-160
-
4860511800 Square Carbide Runner Kit. Europe / Includes 4 to 5Square Carbide Runner Kit. Europe / Includes 4 to 5
-
4860511400 Carbide Runner Kit. Includes 4 to 5Carbide Runner Kit. Includes 4 to 5
-
5233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
6505071812 RetainerRetainer
-
7505070954 CushionCushion
-
8505071779 Ski StopperSki Stopper
-
9506133300 SpacerSpacer
-
10230003044 Hex Screw M10 X 130Hex Screw M10 X 130
-
11732900049 WasherWasher
-
12732610084 Hex Flanged Nut M10Hex Flanged Nut M10
-
13505071232 Ski LegSki Leg
-
14860512500 RH Lower Arm Ass'y. Includes 14 to 16RH Lower Arm Ass'y. Includes 14 to 16
-
14860512400 LH Lower Arm Ass'y. Includes 14 to 16LH Lower Arm Ass'y. Includes 14 to 16
-
15505071891 Ball JointBall Joint
-
16293370035 CirclipCirclip
-
17250000118 Hex Screw With NylonHex Screw With Nylon
-
18506095800 ClampClamp
-
19505070665 LH Bushing (5/8'')LH Bushing (5/8'')
-
20505070881 RH Torsion BushingRH Torsion Bushing
-
21505070659 Stabilisator (5/8'')Stabilisator (5/8'')
-
22505070750 Stabilisator Boot (5/8'')Stabilisator Boot (5/8'')
-
23505071253 PlugPlug
-
24293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
25505071268 RH Slider HalfRH Slider Half
-
25505071269 LH Slider HalfLH Slider Half
-
26207652544 Hex Flange Screw M5 X 25Hex Flange Screw M5 X 25
-
27233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
33505071490 Front ShockFront Shock
-
34505070150 Cam 45°Cam 45°
-
35505071843 Spring. Seashore-Earth Grey ModelSpring. Seashore-Earth Grey Model
-
35505071447 Spring. Black-Black ModelSpring. Black-Black Model
-
36517184300 Spring GuideSpring Guide
-
37503140600 Spring StopperSpring Stopper
-
38503141600 CapCap
-
39207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
40207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
41503189564 WasherWasher
-
42233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
43505071756 Upper ArmUpper Arm
-
44505071863 Upper Ball JointUpper Ball Joint
-
45250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
46234021410 Flat Washer 12 mmFlat Washer 12 mm
-
47503189276 WasherWasher
-
48211400017 Cotter PinCotter Pin
-
49250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
50250000216 Cone Screw M10 X 75Cone Screw M10 X 75
-
51250000218 Hex Screw M10 X 75Hex Screw M10 X 75
-
52250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
53250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
54505070567 BushingBushing
-
55505070566 Arm BushingArm Bushing
-
56232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
57503189564 WasherWasher
-
58219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
