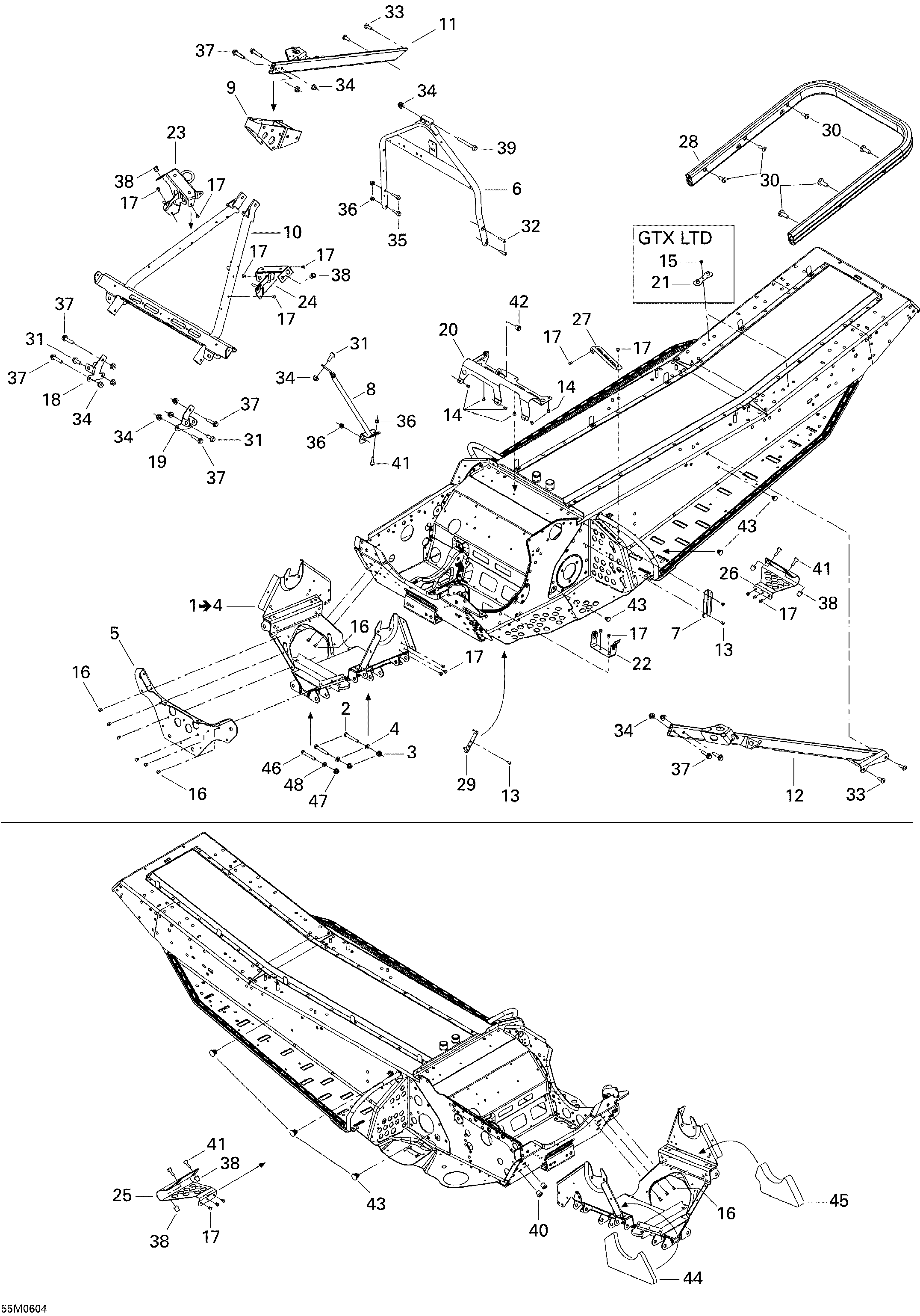

09- Frame and Components LTD для BRP Ski-Doo GTX 800 HO - 2006
-
№АртикулНазвание
-
1518324694 Cross Member. Includes 1 to 4Cross Member. Includes 1 to 4
-
2207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
3233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
4234081410 Flat Washer 8 mmFlat Washer 8 mm
-
5518324726 Front PlateFront Plate
-
6518323979 Handle SupportHandle Support
-
7518317504 Cable ProtectorCable Protector
-
8518323472 Brace, BlackBrace, Black
-
9518323854 Bracket BlockBracket Block
-
10518324739 Upper Cross MemberUpper Cross Member
-
11518324182 RH MemberRH Member
-
12518324183 LH MemberLH Member
-
13390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
14390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
15390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
16390909100 Avex RivetAvex Rivet
-
17390909200 Avex RivetAvex Rivet
-
18518322461 RH Shock BracketRH Shock Bracket
-
19518322462 LH Shock BracketLH Shock Bracket
-
20518323532 Intake Air Admission SupportIntake Air Admission Support
-
21518324613 Rear Seat BracketRear Seat Bracket
-
22518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
23518323535 RH Console SupportRH Console Support
-
24518323536 LH Console SupportLH Console Support
-
25518324391 RH Toe HoldRH Toe Hold
-
26518324392 LH Toe HoldLH Toe Hold
-
27518323105 Plate, BlackPlate, Black
-
28518324507 Rear BumperRear Bumper
-
28518324656 Rear Bumper. EuropeRear Bumper. Europe
-
29518323896 Trunk Bracket, BlackTrunk Bracket, Black
-
30236282084 Hex Screw M8 X 20Hex Screw M8 X 20
-
31207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
32205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
33250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
34233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
35207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
36233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
38415107300 InsertInsert
-
39207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
40293450166 InsertInsert
-
41207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
42293450232 InsertInsert
-
43518321954 Fastener PanelFastener Panel
-
44518323453 RH Front FoamRH Front Foam
-
45518323007 LH Front FoamLH Front Foam
-
46207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
47233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
48234081410 Flat Washer 8 mmFlat Washer 8 mm
