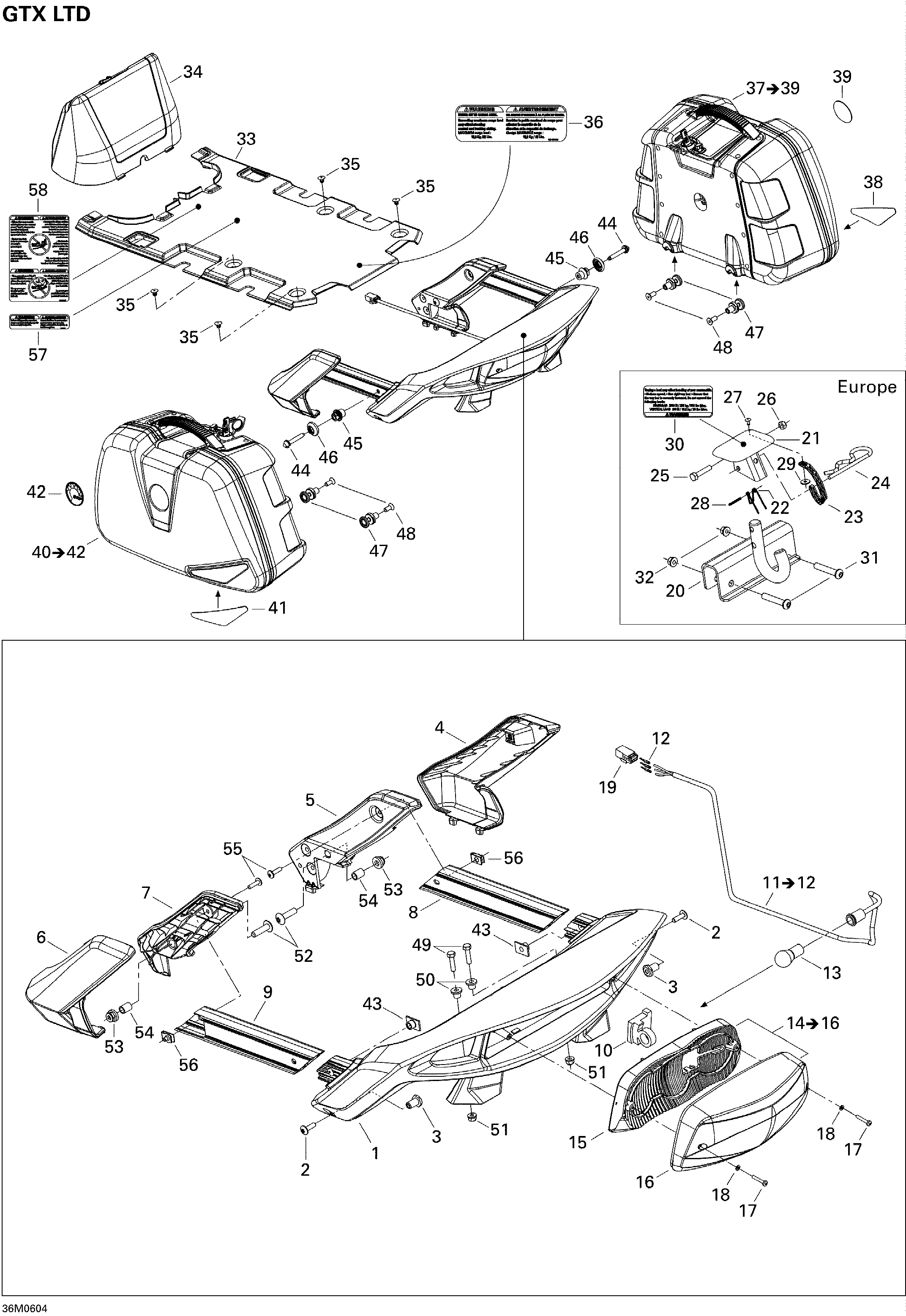

09- Luggage Rack LTD для BRP Ski-Doo GTX 800 HO - 2006
-
№АртикулНазвание
-
1511000317 RackRack
-
2250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
3511000398 InsertInsert
-
4511000322 RH Outside ArmRH Outside Arm
-
5511000326 RH Inside ArmRH Inside Arm
-
6511000323 LH Outside ArmLH Outside Arm
-
7511000327 LH Inside ArmLH Inside Arm
-
8511000321 RH Side BarRH Side Bar
-
9511000345 LH Side BarLH Side Bar
-
10511000431 Bulb SupportBulb Support
-
11511000466 Bulb Socket. Includes 11 to 12Bulb Socket. Includes 11 to 12
-
12515175232 Male TerminalMale Terminal
-
13410504100 Tail Lamp BulbTail Lamp Bulb
-
14861509300 Lens And Reflector Kit. Includes 14 to 16Lens And Reflector Kit. Includes 14 to 16
-
16510004442 ReflectorReflector
-
17209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
18414516400 WasherWasher
-
19515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
20511000354 Hitch, Black. EuropeHitch, Black. Europe
-
21517152700 Hitch Protector. EuropeHitch Protector. Europe
-
22517152800 Spring. EuropeSpring. Europe
-
24114045200 Hair Pin. EuropeHair Pin. Europe
-
25207063044 Hex Screw M6 X 30. EuropeHex Screw M6 X 30. Europe
-
26232561414 Elastic Stop Nut M6. EuropeElastic Stop Nut M6. Europe
-
27390409400 Pop Rivet 5/32'', Black. EuropePop Rivet 5/32'', Black. Europe
-
28732804000 Spring Pin M3 X 24. EuropeSpring Pin M3 X 24. Europe
-
30516003037 Security Label. EuropeSecurity Label. Europe
-
31205484546 Socket Head Screw M8 X 45. EuropeSocket Head Screw M8 X 45. Europe
-
32233281414 Elastic Flanged Nut M8. EuropeElastic Flanged Nut M8. Europe
-
33511000439 Radiator CoverRadiator Cover
-
34511000357 Tank CoverTank Cover
-
35293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
36516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
-
37511000442 RH Suitcase. Includes 37 to 39RH Suitcase. Includes 37 to 39
-
38520000237 Rear Reflector, RedRear Reflector, Red
-
39219902477 Brp Logo, VinylBrp Logo, Vinyl
-
40511000443 LH Suitcase. Includes 40 to 42LH Suitcase. Includes 40 to 42
-
41520000237 Rear Reflector, RedRear Reflector, Red
-
42219902477 Brp Logo, VinylBrp Logo, Vinyl
-
43511000341 Thread InsertThread Insert
-
44511000337 Suitcase StudSuitcase Stud
-
45511000423 Stud NutStud Nut
-
46511000358 Rubber BumperRubber Bumper
-
47511000338 Support RodSupport Rod
-
48205882044 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
49207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
50511000340 Flanged BushingFlanged Bushing
-
51233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
52250000197 Torx Screw M8 X 30Torx Screw M8 X 30
-
53233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
54511000325 BushingBushing
-
55250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
56250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
57516003035 Clenching DecalClenching Decal
-
58516003036 Seat DecalSeat Decal
