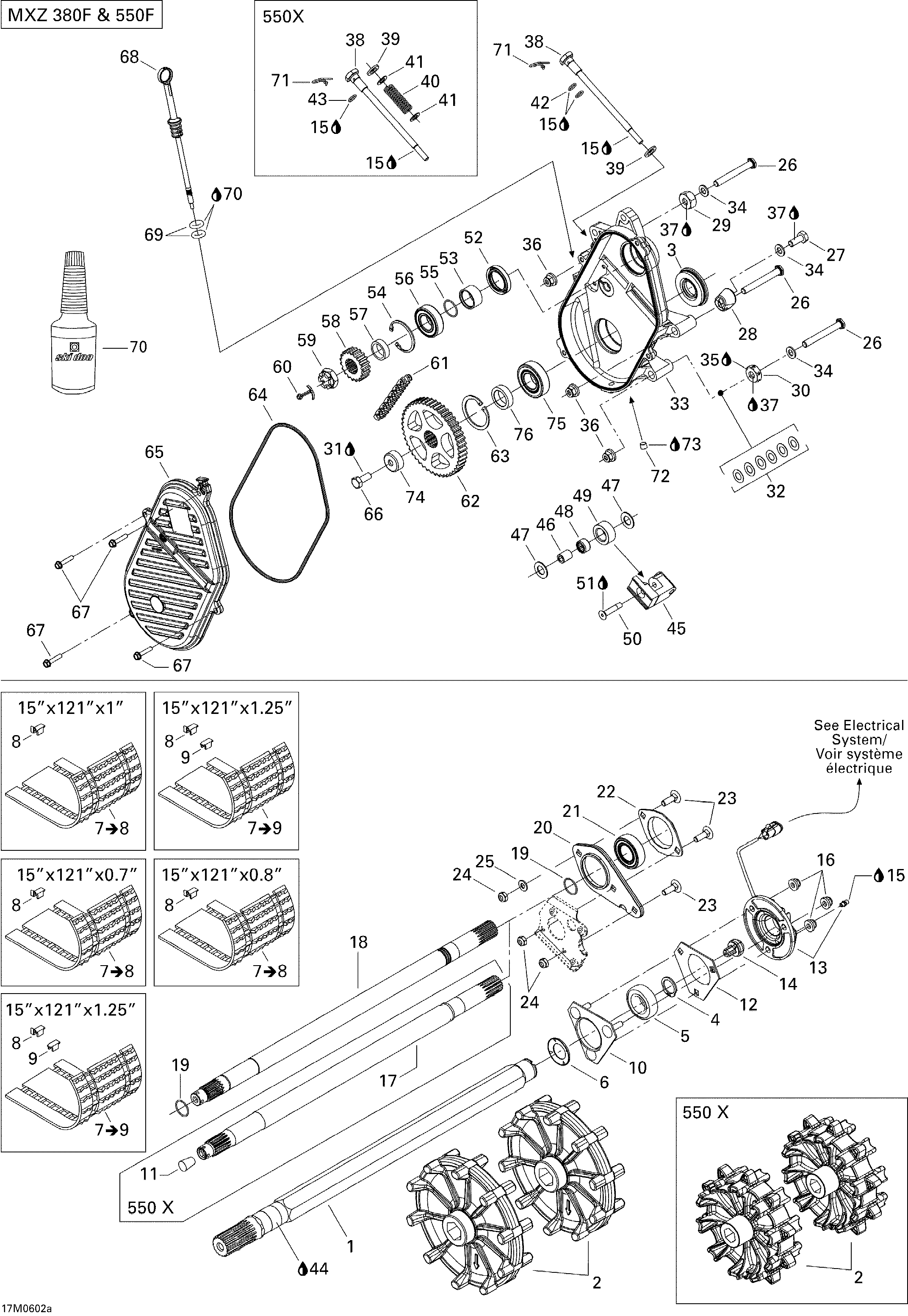

05- Drive System MX Z 550X для BRP Ski-Doo MX Z 550X - 2006
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504152502 Sprocket, 10 Teeth, Interior/exterior. Use drive axle assembly w/sprockets 504152849 for SUMMIT 1000SDI 2005-2007, RENEGADE 1000SDI 2007**Use drive axle assembly w/sprockets 504152847 for all other model applicationsSprocket, 10 Teeth, Interior/exterior. Use drive axle assembly w/sprockets 504152849 for SUMMIT 1000SDI 2005-2007, RENEGADE 1000SDI 2007**Use drive axle assembly w/sprockets 504152847 for all other model applications
-
3504151918 Oil Seal Ass'yOil Seal Ass'y
-
4371910200 CirclipCirclip
-
5504152009 Ball BearingBall Bearing
-
6501017400 Bearing ProtectorBearing Protector
-
7504152446 Track Ass'y 15''x121''x1''. Includes 7 to 9, 550XTrack Ass'y 15''x121''x1''. Includes 7 to 9, 550X
-
7504152558 Track Ass'y 15''x121''x1.25''. Includes 7 to 9, 550X (Europe)Track Ass'y 15''x121''x1.25''. Includes 7 to 9, 550X (Europe)
-
8504152410 GuideGuide
-
9500003300 CleatCleat
-
10504151860 Bearing HousingBearing Housing
-
11414784800 CorkCork
-
12501025000 FlangeFlange
-
13504152345 Rotation SensorRotation Sensor
-
14504152040 Magnetic AdaptorMagnetic Adaptor
-
15219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
16233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
17504152018 Counter ShaftCounter Shaft
-
19371910000 CirclipCirclip
-
20504151968 SpacerSpacer
-
21504152535 Ball BearingBall Bearing
-
22501026900 FlangeFlange
-
23207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
24232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
25234081410 Flat Washer 8 mmFlat Washer 8 mm
-
26250000151 Hex Screw M10 X 80Hex Screw M10 X 80
-
27207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
28504152252 SpacerSpacer
-
29504083800 SpacerSpacer
-
30504152237 SpacerSpacer
-
31293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
32504073700 WasherWasher
-
33504152482 ChaincaseChaincase
-
34503175800 WasherWasher
-
35293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
36233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
37293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
38504151946 Adjustment ScrewAdjustment Screw
-
39234001410 Flat Washer 10 mmFlat Washer 10 mm
-
39503189148 WasherWasher
-
40504151945 SpringSpring
-
41503189564 WasherWasher
-
42414484400 O-RingO-Ring
-
43504151954 O-RingO-Ring
-
44219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
45504151940 Chain TensionerChain Tensioner
-
46504080200 SpacerSpacer
-
47504080300 WasherWasher
-
48405403000 Needle BearingNeedle Bearing
-
49414531300 RollerRoller
-
50732601144 ScrewScrew
-
51293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
52415049300 SealSeal
-
53507031500 SpacerSpacer
-
54371901700 Circlip, InteriorCirclip, Interior
-
55414876700 O-RingO-Ring
-
56504152006 Ball BearingBall Bearing
-
57504152587 ShimShim
-
58504152031 Sprocket, 19 TeethSprocket, 19 Teeth
-
59250000012 Hex Castle Nut M20 X 1.5Hex Castle Nut M20 X 1.5
-
60371006300 Pin CotterPin Cotter
-
61504151830 Drive Chain, 72 LinksDrive Chain, 72 Links
-
62504148500 43 Teeth Sprocket, Large43 Teeth Sprocket, Large
-
63415064300 Circlip, InteriorCirclip, Interior
-
64415046400 O-RingO-Ring
-
65504152471 Chaincase CoverChaincase Cover
-
66207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
67210263080 Hex Forming Screw M6 X 30Hex Forming Screw M6 X 30
-
68504151703 Filler Cap Ass'yFiller Cap Ass'y
-
69414969400 O-RingO-Ring
-
70413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
71414575600 Hair PinHair Pin
-
72504151921 Plug 1/8''-27Plug 1/8''-27
-
73293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
74504152460 CapCap
-
75504152005 Ball BearingBall Bearing
-
76504152058 ShimShim
