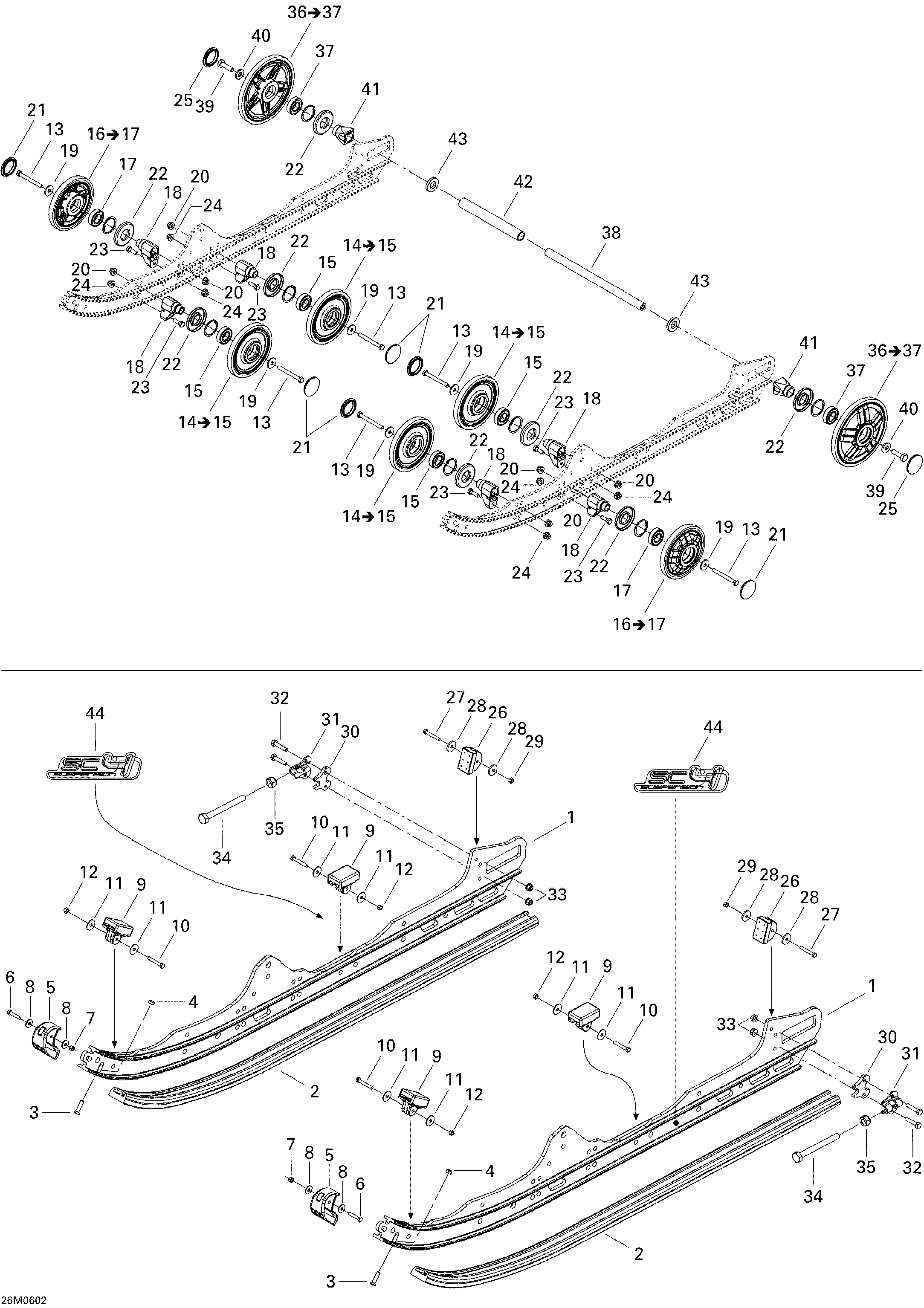

08- Rear Suspension MX Z 550X для BRP Ski-Doo MX Z 550X - 2006
-
№АртикулНазвание
-
1503191224 Runner 121''Runner 121''
-
2503190629 Slider Shoe. 550XSlider Shoe. 550X
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10207053044 Hex Screw M5 X 30Hex Screw M5 X 30
-
11250200016 WasherWasher
-
12232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
13207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
14503191316 Wheel 141 Ass'y. Includes 14 to 15Wheel 141 Ass'y. Includes 14 to 15
-
15503190396 Ball BearingBall Bearing
-
16503191312 Wheel 141 With Pattern Ass'y, Yellow. Includes 16 to 17Wheel 141 With Pattern Ass'y, Yellow. Includes 16 to 17
-
17503190396 Ball BearingBall Bearing
-
18503190580 SupportSupport
-
19211200041 WasherWasher
-
20233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
21570063600 Wheel CapWheel Cap
-
22503190434 Labyrinth SealLabyrinth Seal
-
23207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
24233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
25570063600 Wheel CapWheel Cap
-
26503189608 Rubber StopperRubber Stopper
-
27207053044 Hex Screw M5 X 30Hex Screw M5 X 30
-
28250200016 WasherWasher
-
29232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
30503190379 Tensioner SpacerTensioner Spacer
-
31503190380 TensionerTensioner
-
32207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
33233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
35233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
36503190342 Wheel 180 With Pattern Ass'y, Yellow. Includes 36 to 37Wheel 180 With Pattern Ass'y, Yellow. Includes 36 to 37
-
37503190396 Ball BearingBall Bearing
-
38503190429 Rear AxleRear Axle
-
39250000019 Hex Screw With NylonHex Screw With Nylon
-
40503190439 WasherWasher
-
41503190428 Rear Wheel SpacerRear Wheel Spacer
-
42503191108 SpacerSpacer
-
43503190432 WasherWasher
-
44516002615 Sc4 DecalSc4 Decal
