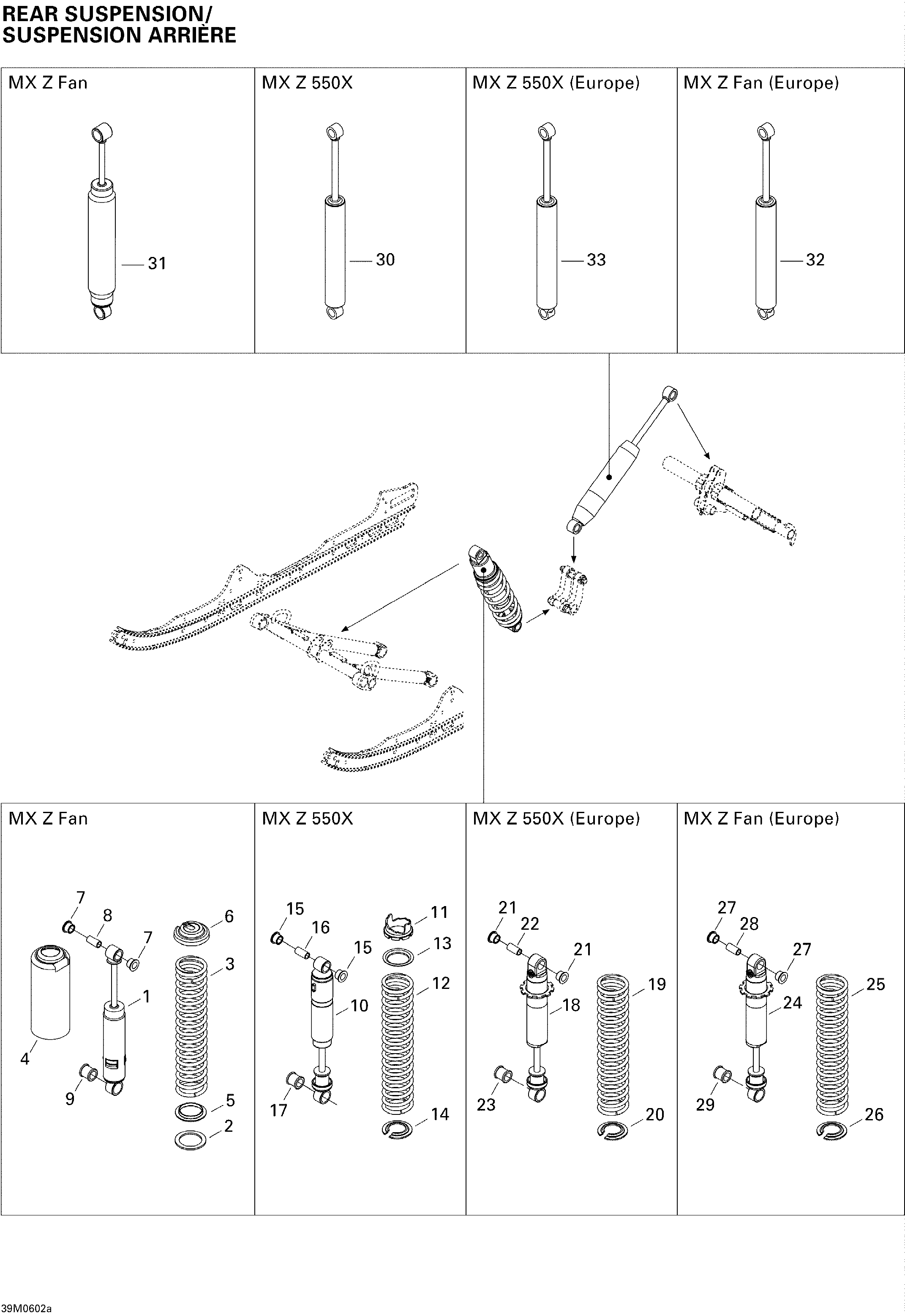

08- Rear Suspension Shocks MX Z 550X для BRP Ski-Doo MX Z 550X - 2006
-
№АртикулНазвание
-
10503190663 Center Shock. 550XCenter Shock. 550X
-
11505070150 Cam 45°. 550XCam 45°. 550X
-
12503191135 Spring. 550XSpring. 550X
-
13517184300 Spring Guide. 550XSpring Guide. 550X
-
14503189912 Spring Stopper. 550XSpring Stopper. 550X
-
15503189117 Cushion. 550XCushion. 550X
-
16503189282 Bushing. 550XBushing. 550X
-
17503189271 Cushion. 550XCushion. 550X
-
18503191220 Center Shock. 550X (Europe)Center Shock. 550X (Europe)
-
19503189325 Spring. 550X (Europe)Spring. 550X (Europe)
-
20503189912 Spring Stopper. 550X (Europe)Spring Stopper. 550X (Europe)
-
21503189117 Cushion. 550X (Europe)Cushion. 550X (Europe)
-
22503189282 Bushing. 550X (Europe)Bushing. 550X (Europe)
-
23503189271 Cushion. 550X (Europe)Cushion. 550X (Europe)
-
30503190809 Rear Shock. 550XRear Shock. 550X
-
33503191222 Rear Shock. 550X (Europe)Rear Shock. 550X (Europe)
