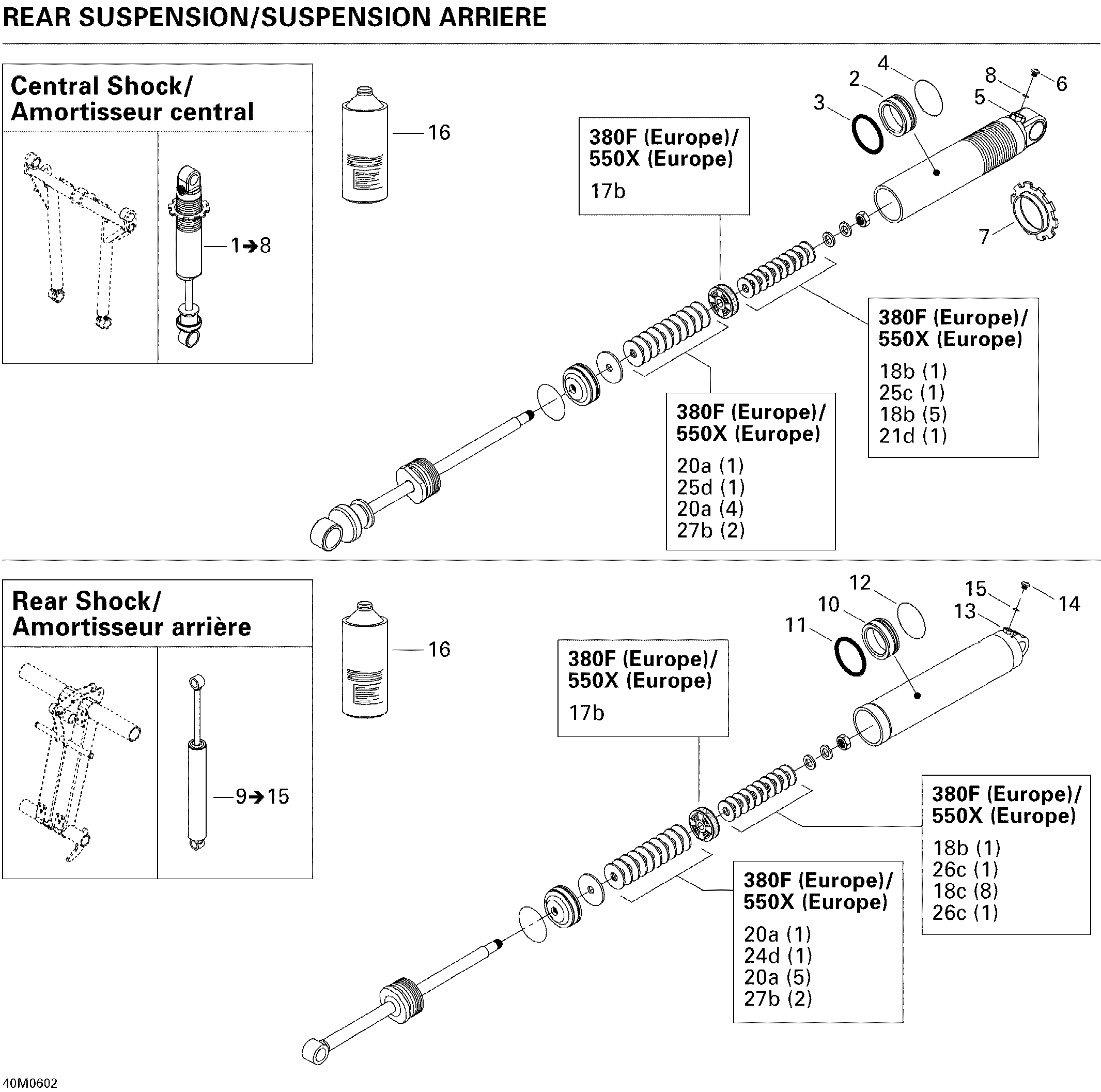

08- Take Apart Shock, Rear MX Z 550X для BRP Ski-Doo MX Z 550X - 2006
-
№АртикулНазвание
-
1503191220 Center Shock. Includes 1 to 8, 550X (Europe)Center Shock. Includes 1 to 8, 550X (Europe)
-
2503189309 Free PistonFree Piston
-
3414888312 O-RingO-Ring
-
4503189308 Piston RingPiston Ring
-
5505070398 Air Valve RingAir Valve Ring
-
6505070399 ScrewScrew
-
7414888316 Spring CollarSpring Collar
-
8505070400 O-RingO-Ring
-
9503191222 Rear Shock. Includes 9 to 15, 550X (Europe)Rear Shock. Includes 9 to 15, 550X (Europe)
-
10503189309 Free PistonFree Piston
-
11414888312 O-RingO-Ring
-
12503189308 Piston RingPiston Ring
-
13505070398 Air Valve RingAir Valve Ring
-
14505070399 ScrewScrew
-
15505070400 O-RingO-Ring
-
16293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
-
17a414888304 Piston (C36)Piston (C36)
-
17c414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
17E414888306 Piston (2 X 0.3-4) (C36)Piston (2 X 0.3-4) (C36)
-
17g414888307 Piston (2 X 0.3-6) (C36)Piston (2 X 0.3-6) (C36)
-
18a415039100 Leaf Valve O30 X 0.254 (C36)Leaf Valve O30 X 0.254 (C36)
-
18b414888318 Leaf Valve O30 X 0.203 (C36)Leaf Valve O30 X 0.203 (C36)
-
18c414888319 Leaf Valve O30 X 0.152 (C36)Leaf Valve O30 X 0.152 (C36)
-
19b414888320 Leaf Valve O28 X 0.203 (C36)Leaf Valve O28 X 0.203 (C36)
-
19c414888321 Leaf Valve O28 X 0.152 (C36)Leaf Valve O28 X 0.152 (C36)
-
20a415039000 Leaf Valve O26 X 0.254 (C36)Leaf Valve O26 X 0.254 (C36)
-
20b414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
20c414888323 Leaf Valve O26 X 0.152 (C36)Leaf Valve O26 X 0.152 (C36)
-
22b414888324 Leaf Valve O22 X 0.203 (C36)Leaf Valve O22 X 0.203 (C36)
-
22c414888325 Leaf Valve O22 X 0.152 (C36)Leaf Valve O22 X 0.152 (C36)
-
23D414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
24b414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
24c414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
24d414888328 Leaf Valve O20 X 0.114 (C36)Leaf Valve O20 X 0.114 (C36)
-
26b414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
26c414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
28a414888331 Leaf Valve O16 X 0.254 (C36)Leaf Valve O16 X 0.254 (C36)
-
28b414888332 Leaf Valve O16 X 0.203 (C36)Leaf Valve O16 X 0.203 (C36)
-
28c414888333 Leaf Valve O16 X 0.152 (C36)Leaf Valve O16 X 0.152 (C36)
-
28D415038900 Leaf Valve O16 X 0.114 (C36)Leaf Valve O16 X 0.114 (C36)
-
29a414888334 Leaf Valve O15 X 0.254 (C36)Leaf Valve O15 X 0.254 (C36)
-
29b414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
29c414888336 Leaf Valve O15 X 0.152 (C36)Leaf Valve O15 X 0.152 (C36)
-
29D414888337 Leaf Valve O15 X 0.114 (C36)Leaf Valve O15 X 0.114 (C36)
-
32a503189538 Leaf Valve O12 X 0.254 (C36)Leaf Valve O12 X 0.254 (C36)
-
32b414888338 Leaf Valve O12 X 0.203 (C36)Leaf Valve O12 X 0.203 (C36)
-
32c414888339 Leaf Valve O12 X 0.152 (C36)Leaf Valve O12 X 0.152 (C36)
-
32d415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
