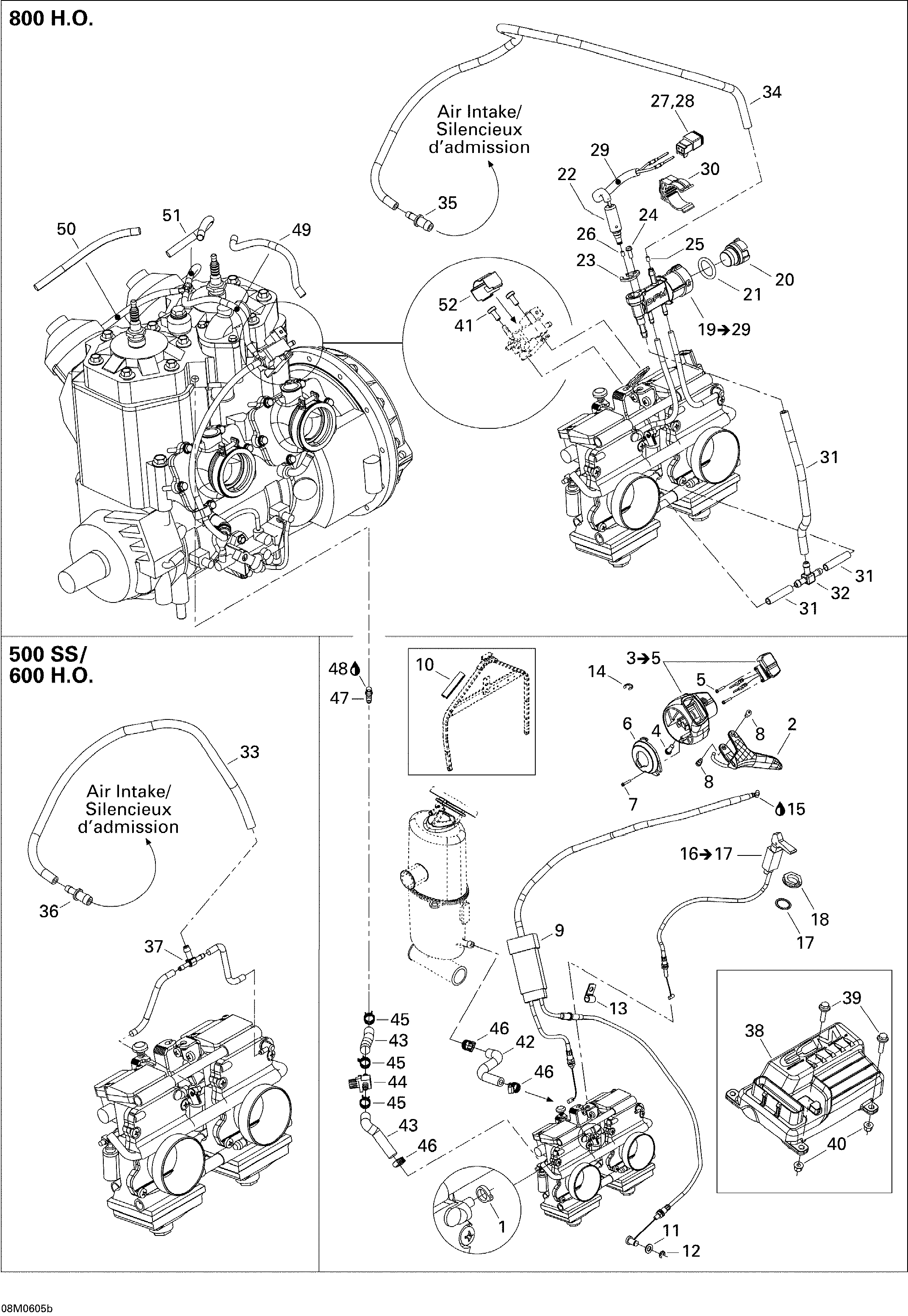

01- Engine 2 (600HO) для BRP Ski-Doo MX Z 600 HO Adrenaline - 2006
-
№АртикулНазвание
-
1293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
2512059891 Handle Ass'YHandle Ass'Y
-
3512060001 Housing Throttle Ass'y. Includes 3 to 5Housing Throttle Ass'y. Includes 3 to 5
-
4250000036 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
5250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
6512059698 CoverCover
-
7250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
8732601143 Flanged ScrewFlanged Screw
-
9512060085 Throttle Cable. AdrenalineThrottle Cable. Adrenaline
-
10512059750 ProtectorProtector
-
11234081100 Flat Washer 8 mmFlat Washer 8 mm
-
12414753500 CirclipCirclip
-
13414176000 Clip, CableClip, Cable
-
14414274500 CirclipCirclip
-
15293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
16512059266 Choke Cable. Includes 16 to 17Choke Cable. Includes 16 to 17
-
17394103300 Lock Washer, Interior TeethLock Washer, Interior Teeth
-
18512059094 Plastic NutPlastic Nut
-
33415080200 Line. 500 SS / 600 H.O.Line. 500 SS / 600 H.O.
-
36293710035 Straight Fitting. 500 SS / 600 H.O.Straight Fitting. 500 SS / 600 H.O.
-
37572045500 T-Connector. 500 SS / 600 H.O.T-Connector. 500 SS / 600 H.O.
-
38512060057 Calibrated Module. 600 H.O.Calibrated Module. 600 H.O.
-
39207652044 Flanged Hex Screw M5 X 20Flanged Hex Screw M5 X 20
-
40233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
42509000171 HoseHose
-
43509000093 Hose 8 mmHose 8 mm
-
44512059324 Valve 5/16''Valve 5/16''
-
45414655700 Spring ClampSpring Clamp
-
46293650170 Tridon Hose ClampTridon Hose Clamp
-
47512059970 Male Connector 1/8''-27 NptMale Connector 1/8''-27 Npt
-
48293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
