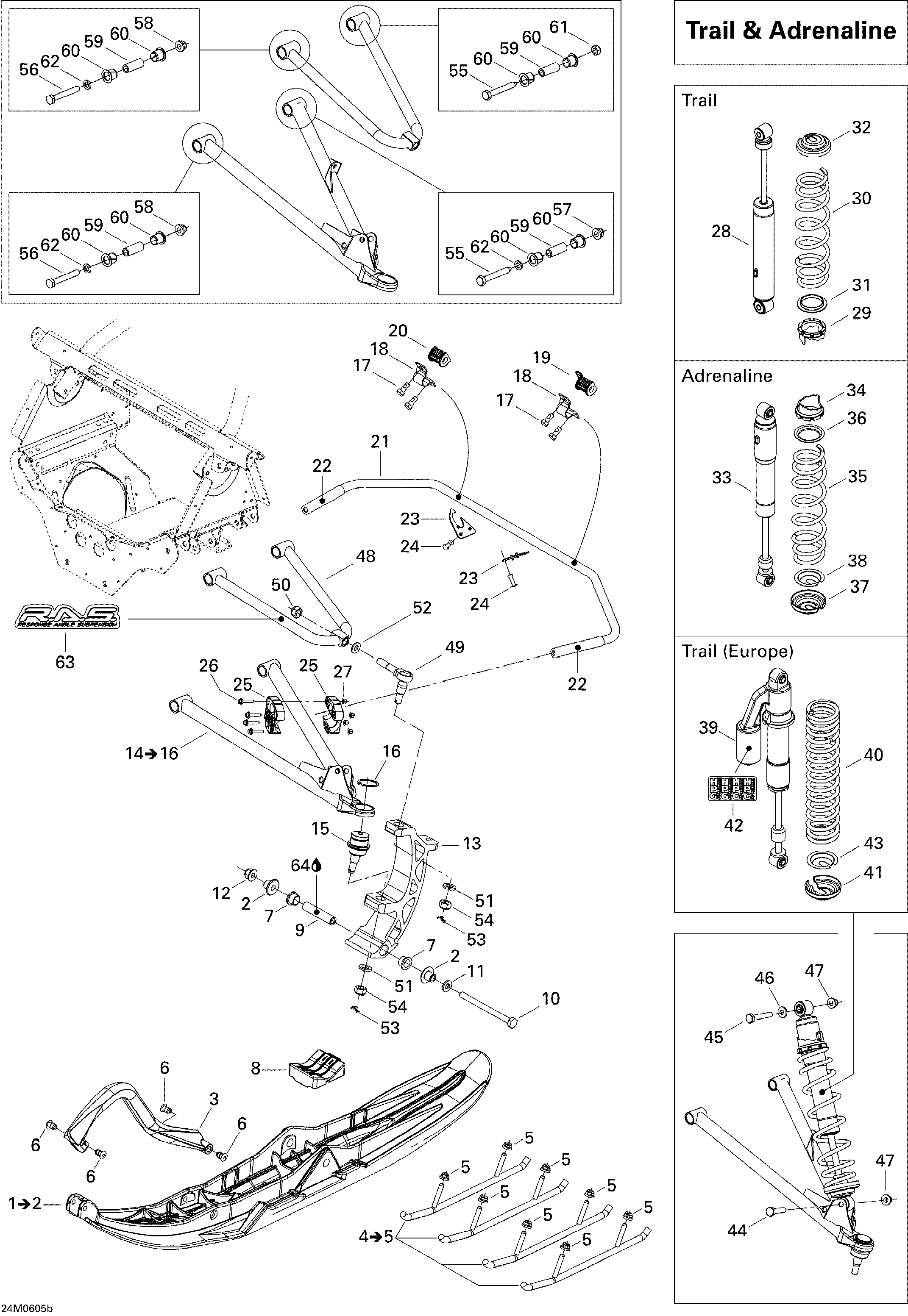

07- Front Suspension And Ski 600 Adrenaline для BRP Ski-Doo MX Z 600 HO Adrenaline - 2006
-
№АртикулНазвание
-
1505071790 RH Pilot Ski Ass'y, Black. Includes 1 to 2RH Pilot Ski Ass'y, Black. Includes 1 to 2
-
1505071791 LH Pilot Ski Ass'y, Black. Includes 1 to 2LH Pilot Ski Ass'y, Black. Includes 1 to 2
-
2505071781 CushionCushion
-
3505070917 Handle, Yellow. 500/600/800 Adrenaline & 500 TrailHandle, Yellow. 500/600/800 Adrenaline & 500 Trail
-
3505070963 Handle, Black. 500/600/800 AdrenalineHandle, Black. 500/600/800 Adrenaline
-
4860511400 Carbide Runner Kit. Includes 4 to 5Carbide Runner Kit. Includes 4 to 5
-
5233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
6505071812 RetainerRetainer
-
7505070954 CushionCushion
-
8505071779 Ski StopperSki Stopper
-
9506133300 SpacerSpacer
-
10230003044 Hex Screw M10 X 130Hex Screw M10 X 130
-
11732900049 WasherWasher
-
12732610084 Hex Flanged Nut M10Hex Flanged Nut M10
-
13505071232 Ski LegSki Leg
-
14860512500 RH Lower Arm Ass'y. Includes 14 to 16RH Lower Arm Ass'y. Includes 14 to 16
-
14860512400 LH Lower Arm Ass'yLH Lower Arm Ass'y
-
15505071891 Ball JointBall Joint
-
16293370035 CirclipCirclip
-
17250000118 Hex Screw With NylonHex Screw With Nylon
-
18506095800 ClampClamp
-
19505070664 LH Torsion Bar BushingLH Torsion Bar Bushing
-
20505070912 RH Torsion Bar BushingRH Torsion Bar Bushing
-
21505070948 StabilisatorStabilisator
-
22505071039 Sway Bar EndSway Bar End
-
23505071253 PlugPlug
-
24293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
25505071268 RH Slider HalfRH Slider Half
-
25505071269 LH Slider HalfLH Slider Half
-
26207652544 Hex Flange Screw M5 X 25Hex Flange Screw M5 X 25
-
27233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
33505071490 Front Shock. 500/600/800 AdrenalineFront Shock. 500/600/800 Adrenaline
-
34505070150 Cam 45°. 500/600/800 AdrenalineCam 45°. 500/600/800 Adrenaline
-
35505071833 Spring. 500/600/800 AdrenalineSpring. 500/600/800 Adrenaline
-
36517184300 Spring Guide. 500/600/800 AdrenalineSpring Guide. 500/600/800 Adrenaline
-
37503140600 Spring Stopper. 500/600/800 AdrenalineSpring Stopper. 500/600/800 Adrenaline
-
38503141600 Cap. 500/600/800 AdrenalineCap. 500/600/800 Adrenaline
-
44207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
45207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
46503189564 WasherWasher
-
47233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
48505071756 Upper ArmUpper Arm
-
49505071863 Upper Ball JointUpper Ball Joint
-
50250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
51234021410 Flat Washer 12 mmFlat Washer 12 mm
-
52503189276 WasherWasher
-
53211400017 Cotter PinCotter Pin
-
54250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
55250000216 Cone Screw M10 X 75Cone Screw M10 X 75
-
56250000218 Hex Screw M10 X 75Hex Screw M10 X 75
-
57250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
58250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
59505070567 BushingBushing
-
60505070566 Arm BushingArm Bushing
-
61232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
62503189564 WasherWasher
-
63516002747 R.a.s. Suspension DecalR.a.s. Suspension Decal
-
64219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
