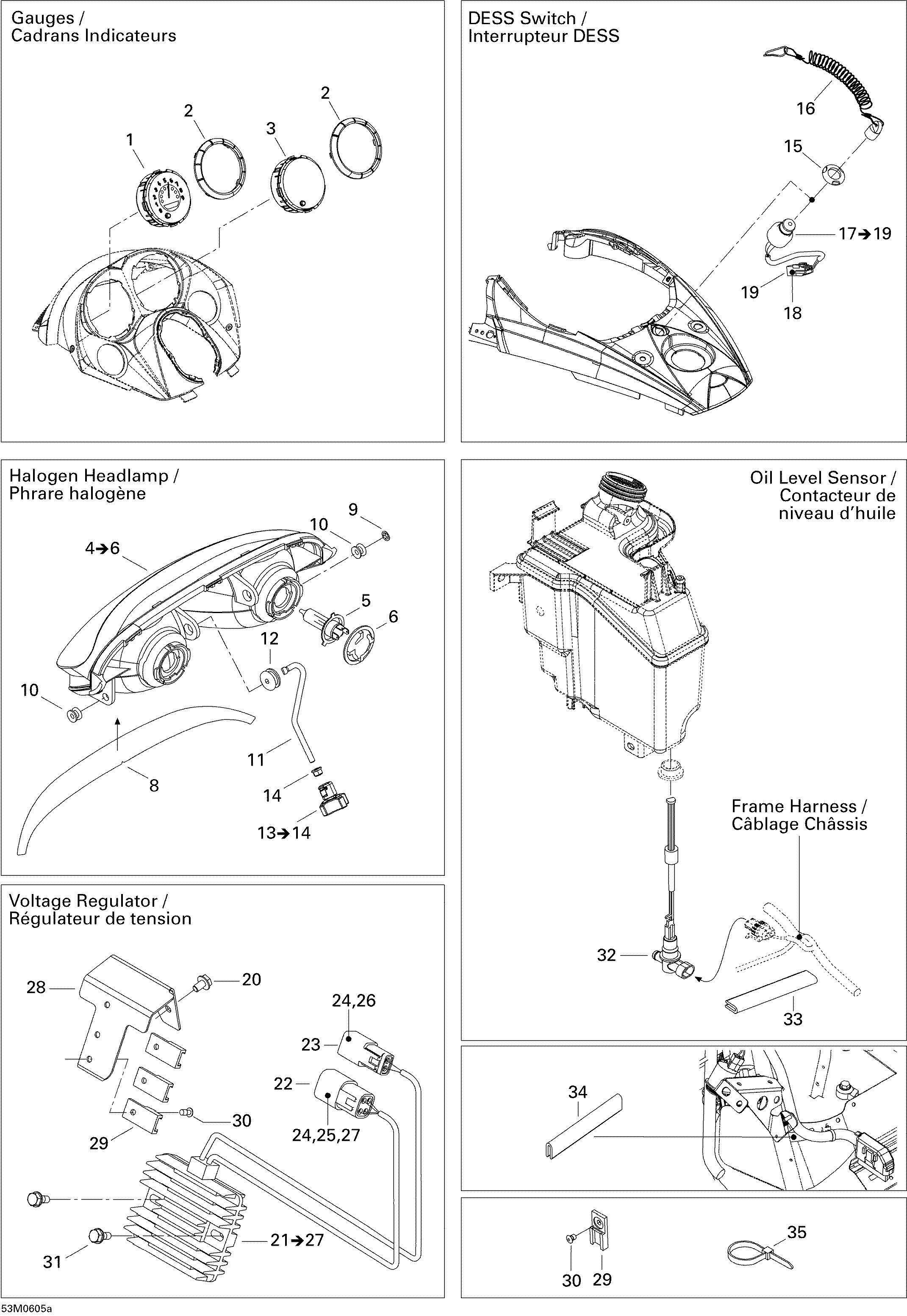

10- Electrical Accessories 1 (600) для BRP Ski-Doo MX Z 600 HO Adrenaline - 2006
-
№АртикулНазвание
-
1515176302 SpeedometerSpeedometer
-
2515176242 Gauge RingGauge Ring
-
3515176303 TachometerTachometer
-
4515176311 Halogen Headlamp Ass'y. Includes 4 to 7Halogen Headlamp Ass'y. Includes 4 to 7
-
5515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
6515176385 Bulb HolderBulb Holder
-
7515175911 CoverCover
-
8516001328 Headlamp DecalHeadlamp Decal
-
9732610072 Push NutPush Nut
-
10515175760 Headlamp BushingHeadlamp Bushing
-
11515175521 Adjuster RodAdjuster Rod
-
12415100800 GrommetGrommet
-
13515175975 Handle. Includes 13 to 14Handle. Includes 13 to 14
-
14233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
15278000508 Safe Nut SwitchSafe Nut Switch
-
16515176446 Dess CapDess Cap
-
17515175797 Dess Switch. Includes 17 to 19Dess Switch. Includes 17 to 19
-
18515175232 Male TerminalMale Terminal
-
19515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
20210261080 Hex Forming Screw M6 X 10Hex Forming Screw M6 X 10
-
21515175968 Voltage Regulator. Includes 21 to 27Voltage Regulator. Includes 21 to 27
-
22278001477 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
23278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
24515175568 Male TerminalMale Terminal
-
25278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
26278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
27293000052 Sealing CapSealing Cap
-
28515176191 Housing SupportHousing Support
-
29515175917 ClipClip
-
30293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
31210262080 Hex Forming Screw M6 X 20Hex Forming Screw M6 X 20
-
32515176327 Oil Level SensorOil Level Sensor
-
33509000263 TrimTrim
-
34271000110 Protector TrimProtector Trim
-
35293750008 Tie-Rap 350 mmTie-Rap 350 mm
