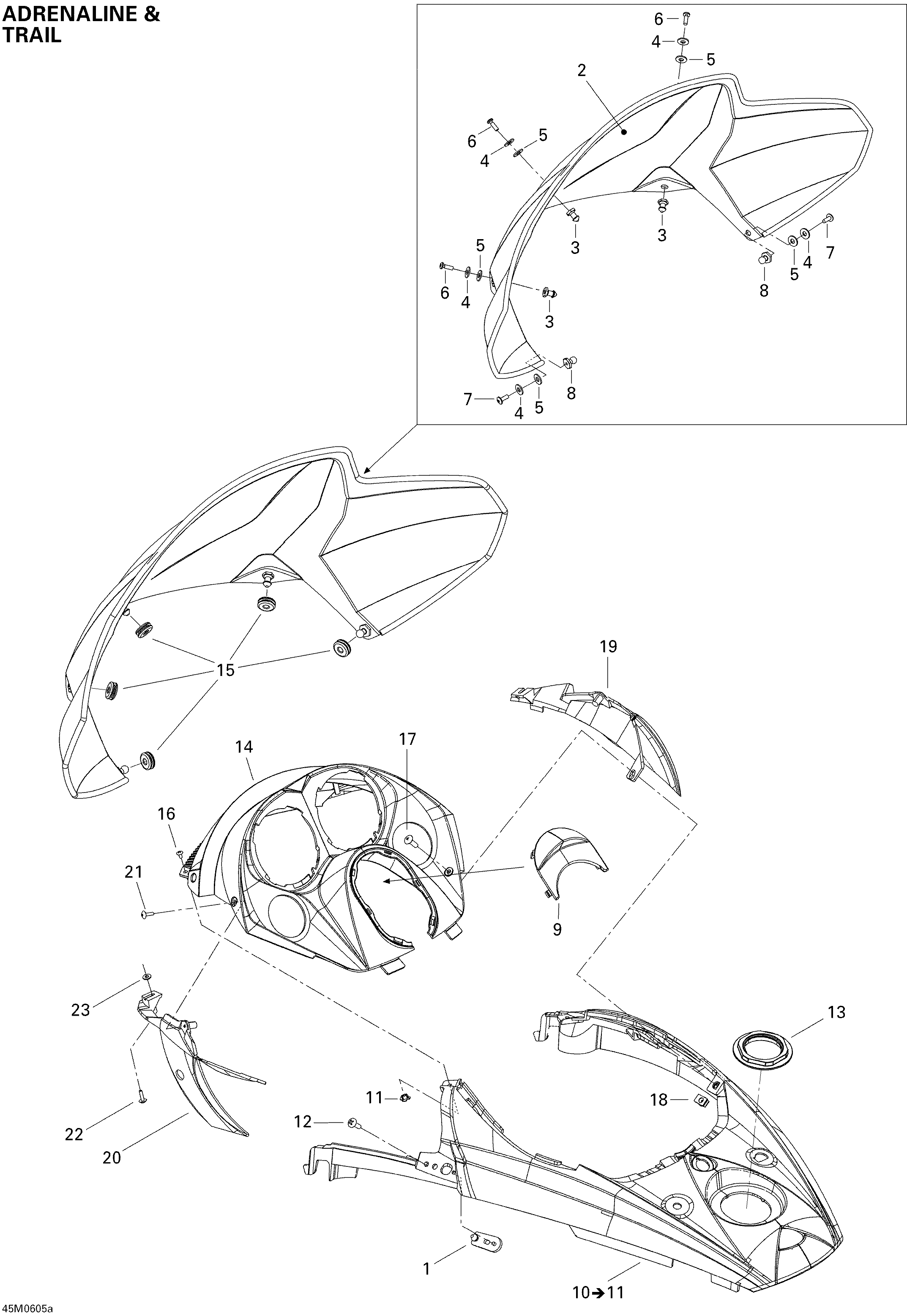

09- Windshield And Console 600 для BRP Ski-Doo MX Z 600 HO Adrenaline - 2006
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2517303511 Windshield With Trim (medium)Windshield With Trim (medium)
-
3517303439 KnobKnob
-
4250200025 Washer 5 mmWasher 5 mm
-
5250200024 Rubber Washer M5Rubber Washer M5
-
6250000146 Torx Screw K50 X 16Torx Screw K50 X 16
-
7250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
8517245800 KnobKnob
-
9517302592 Console CapConsole Cap
-
10517302795 Center Console, Black. Includes 10 To 11Center Console, Black. Includes 10 To 11
-
10517302845 Center Console, Yellow. Includes 10 To 11Center Console, Yellow. Includes 10 To 11
-
11250100030 T Flanged Nut, M4T Flanged Nut, M4
-
12250000128 Torx Pan Head Screw M6 X 20Torx Pan Head Screw M6 X 20
-
13517302575 Console NutConsole Nut
-
14517303538 Indicator SupportIndicator Support
-
15517302841 GrommetGrommet
-
16250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
17250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
18250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
19517303413 RH Air DeflectorRH Air Deflector
-
20517303414 LH Air DeflectorLH Air Deflector
-
21250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
22250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
23234042600 Flat Washer 4 mmFlat Washer 4 mm
